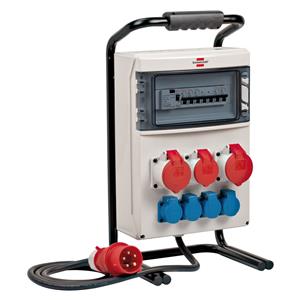

Brennenstuhl Portable Construction Distribution Board, FI Circuit Breaker 2x32A + 1x16A CEE Sockets, 2m Oil-resistant Cable IP44
The portable construction site distributor with a 2m oil-resistant cable is ideal for use on construction sites or for permanent outdoor use thanks to its IP44 protection class and robust cable quality. The portable construction cabinet with a total of 3 CEE sockets and 4 protective contact sockets can be transported easily thanks to its ergonomically shaped carrying handle. The additional FI-Personenschutzschalter 30mA provides even more safety and protects against possible electrical accidents. It quickly separates the active conductors from the grid as soon as differential currents occur. The construction distributor also has a practical winding device for the connection cable on the back.
Features:
- Robust and plastic coated steel tube frame
- Protection class: IP44
- Max electrical load capacity: 22000 W
- Nominal input voltage: 400 V
- Max current carrying capacity: 32 A
- With FI-personal protection switch 30mA / 40A / type A
- Number of circuit breakers: 5 (4x LS 230V/16A 1-pole; 1x LS 400V/16A 3-pole)
- Number of protection sockets: 4
- Number of CEE sockets total: 3
- CEE socket - 16 A: 1x 16A 3P+N+PE (5p) 400V
- CEE socket - 32 A: 2x 32A 3P+N+PE (5p) 400V
- Plug system connector: CEE 32A 3P+N+PE (5p) 400V
- Cable designation: H07RN-F 5G4,0
- Cable length: 2m
- Protection class: II
Technical data:
- Height: 25 cm
- Length: 62 cm
- Weight: 8.25 kg
- Width: 32 cm
- Max electrical load capacity: 22000 W
- Nominal input voltage: 400 V
- With handle: Yes
- Material housing: plastic
- Number of CEE sockets total: 3
- Number of sockets: 7
- Protection class (IP): IP44
- Suitable for outdoor use: Yes
- Cable designation: H07RN-F 5G4,0
- Cable length: 2 m
- Cable quality: rubber neoprene, rubber neoprene
- FI switch: FI with IFN 0.03 A (standard)
- Number of protection sockets: 4
