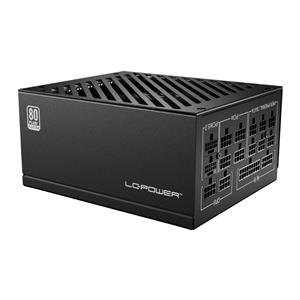

LC Power LC1200P V3.0
The fully modular LC1200P V3.0 power supply is 80 PLUS PLATINUM certified and ensures optimum stability even at full performance.
Thanks to the fully modular cable management, it offers a very high level of convenience when building or upgrading your systems. The power supply also boasts an impressive efficiency of up to 92 percent and, with up to ten PCI Express connections (2x PCIe 5.0 12+4-pin / 8x PCIe 6+2-pin), offers the ideal solution in the upper class.
Features:
- 1200 watts: first-class performance for your components
- Fully modular cable management and black flat ribbon cables keep your system clean and improve air circulation
- 80 PLUS PLATINUM certification: up to 92% efficiency
- Full range: 110 - 240 V
- Reliable and safe thanks to DC-to-DC technology
- The 135 mm high-pressure fan ensures optimum and quiet cooling
- 2x PCI-Express 5.0 12+4-pin and 8x PCI-Express 6+2-pin for connection of several graphics cards
- Power supply series: Platinum series
- ATX version: ATX V3.0
- Connectors:
- 20+4-pin mainboard1x 650 mm
- 4+4-pin mainboard 12 V (8-pin EPS)2x 650 mm
- 4-pin mainboard 12 V1x 800 mm
- PCI-Express 5.0 12+4-pin2x 650 mm
- PCI-Express: 6+2-Pin (8x total 4x 675 mm / 4x 750 mm)
- Connection options: Option 1: 20x SATA & 3x PATA / Option 2: 16x SATA & 6x PATA
- SATA: 20x total (5x 500 mm / 5x 650 mm / 5x 800 mm / 5x 950 mm)
- PATA: 6x total (2x 500 mm/ 2x 650 mm / 2x 800 mm)
- FDD: 1x 900 mm
- Fan: 135 mm
- PFC: active
- Safety circuits: OVP = overvoltage protection, OCP = overcurrent protection, OPP = overpower protection, SCP = short-circuit protection, UVP = undervoltage protection.
- Note: Please connect only one graphics card up to 450 W or 600 W to the power supply unit.
- Alternatively, two graphics cards up to 300 W each can be connected.
- Haswell compatible
- Dimensions of power supply unit: 86 x 180 x 150 mm
- Power: 1200 W
- Colour: black
