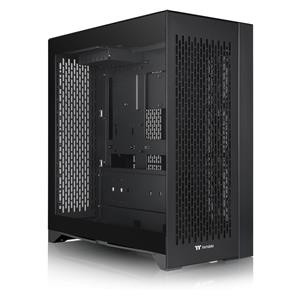

Thermaltake CTE E600 MX Black Mid-Tower case
Innovative cable management
The CTE E600 MX offers sufficient space in the right-hand chamber for effective cable management thanks to its double-chamber design. Numerous anchoring points are available in this chamber, which are supplemented by Velcro straps and cable ties from the accessory box to enable neat and organised installation.
How much storage space is entirely up to you
In the right-hand chamber of the CTE E600 MX, you can accommodate up to two 3.5-inch hard drives in the hard drive cage and two 2.5-inch drives on the drive platter.
Optimum hardware support and cooling solutions
The CTE E600 MX offers excellent expandability, allowing you to customise your system to your requirements.
Features:
- Case type: Midi tower
- Dimensions (H x W x D): 558.5 x 270 x 513 mm
- Weight: 16 kg
- Colour: black
- Material: steel / glass
- Interchangeable front panels (perforated or glass)
- More flexibility: rotatable PCIe slots (upright positioning of the graphics card possible)
- Drive bays: 2x 3.5" / 2x 2.5"
- Expansion slots: 7
- Compatible motherboards: 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 10.5" (E-ATX)
- I/O PORTS: 2x USB 3.0, 1x USB Type-C, 1x HD audio
- Compatible power supply unit: Standard PS2 power supply unit (optional)
- Fan support:
- Front: 3x 120 mm, 2x 120 mm, 1x 120 mm / 3x 140 mm, 2x 140 mm, 1x 140 mm
- Top: 2x 120 mm, 1x 120 mm
- Right (M/B side): 3x 120 mm, 2x 120 mm, 1x 120 mm / 3x 140 mm, 2x 140 mm, 1x 140 mm
- Rear: 3x 120 mm, 2x 120 mm, 1x 120 mm / 3x 140 mm, 2x 140 mm, 1x 140 mm
- Bottom: 3x 120 mm, 2x 120 mm, 1x 120 mm, / 3x 140 mm, 2x 140 mm, 1x 140 mm
- Radiator support:
- Front: 1x 360 mm, 1x 240 mm, 1x 120 mm / 1x 420 mm, 1x 280 mm, 1x 140 mm
- Top: 1x 240 mm, 1x 120 mm
- Right (M/B side): 1x 360 mm, 1x 240 mm, 1x 120 mm / 1 x 420 mm, 1 x 280 mm, 1 x 140 mm
- Rear: 1x 360 mm, 1x 240 mm, 1x 120 mm / 1x 420 mm, 1x 280 mm, 1x 140 mm
- Bottom: 1x 360 mm, 1x 240 mm, 1x 120 mm / 1x 420 mm, 1x 280 mm, 1x 140 mm
- Height of the CPU cooler: max. 166 mm
- Maximum VGA length:: 415 mm (with cooler) / 443.8 mm (without cooler)
- Maximum length of the power supply unit:: 220 mm
Trebate dodatne informacije o ovom artiklu?
Pošaljite nam upit
Podržane matične ploče
ATX: da
Micro-ATX: da
ATX-extended (E-ATX): da
Mini-ITX: da
oprema
Vrsta slučaja: midi toranj
2,5" odjeljak za disk: 2x
3,5" odjeljak za disk: 2x
PCIe utori / utori za proširenje: 7x
Rasvjeta: ne
Izolacija: ne
Bočni dio: Prozor
Maks. visina CPU hladnjaka (mm): 166
Maks. duljina grafičke kartice (mm): 415 / 443,8
Mogući ventilatori
Gornja strana: 2x 120 mm, 1x 120 mm
Donja strana: 3x 120 mm, 2x 120 mm, 1x 120 mm, / 3x 140 mm, 2x 140mm, 1x 140mm
Prednja strana: 3x 120 mm, 2x 120 mm, 1x 120 mm / 3x 140 mm, 2x 140 mm, 1x 140 mm
Poleđina: 3x 120 mm, 2x 120 mm, 1x 120 mm / 3x 140 mm, 2x 140 mm, 1x 140 mm
Desna strana: 3x 120 mm, 2x 120 mm, 1x 120 mm / 3x 140 mm, 2x 140 mm, 1x 140 mm
Mogući radijatori
Gornja strana: 1x 240 mm, 1x 120 mm
Donja strana: 1x 360 mm, 1x 240 mm , 1x 120 mm / 1x 420 mm, 1x 280 mm, 1x 140 mm
Prednja strana: 1x 360 mm, 1x 240 mm, 1x 120 mm / 1x 420 mm, 1x 280 mm, 1x 140 mm
Poleđina: 1x 360 mm, 1x 240 mm, 1x 120 mm / 1x 420 mm, 1x 280 mm, 1x 140 mm
Desna strana: 1x 360 mm, 1x 240 mm, 1x 120 mm / 1 x 420 mm, 1 x 280 mm, 1 x 140 mm
priključci
USB-C: 1x USB-C 3.2 Gen 2 (10 GBit/s)
Slušalice- priključak: 1x
općenito
boja: crna
Težina (kg): 16,0
