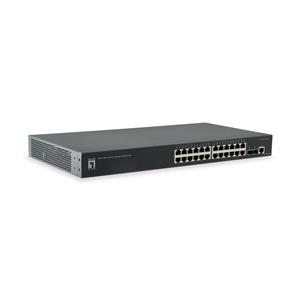

LevelOne GTL-2661 KILBY 26-Port L2-Gigabit Switch
The GTL-2661 series includes 26-port high-performance Gigabit Ethernet Layer 2 switches; 24x 10/100 / 1000BASE-T ports, two 10G SFP+ ports, and a 10G expansion slot for a dual-port module. The switch is ideal for high-performance server aggregations, such as enterprise data centers, where high-end or network file servers can be connected via fiber ports. It can also be deployed as a backbone upgrade or provide Gigabit for the desktop for power users.
Features:
- 24x Gigabit Ethernet ports and 2x 10 Gigabit SFP+ slots
- IEEE 802.3ad LACP for automatic port aggregation
- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
- Provides Wos control for traffic and bandwidth management based on IP DSCP
- MLD, Telnet, SNMP V1, V2c & V3, RMON, web browser and TFTP management
- Dynamic ARP Inspection (DAI) protects switches from ARP spoofing
- Minimizes power consumption through modern energy efficiency (IEEE 802.3az)
- Supports IPv4/IPv6 network operation
- Virtual stacking supports up to 36 switches in a single logical stack for unified management, monitoring and configuration
- Switching power: 88 Gbps
- Backplane: 88 Gbit/s
- Jumbo Frames: 10 KB
- Mounting: 19" rack
- Fanless
- Standards
- IEEE 802.3 10-BASE-T, Ethernet
- IEEE 802.3u 100-BASE-TX, Fast Ethernet
- IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
- IEEE 802.3z 1000BASE-X, Gigabit Ethernet
- IEEE 802.1p Quality of Service (QoS)
- IEEE 802.1Q Virtual LANs (VLANs)
- IEEE 802.1D MAC Bridges
- IEEE 802.1d Standard Spanning Tree Protocol
- IEEE 802.1s Multiple Spanning Tree (MSTP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.3x Flow Control
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- IEEE 802.3az Energy-Efficient Ethernet
- Dimensions: 440 x 220 x 44 mm
- Weight: 2.29 kg
- Colour: black
