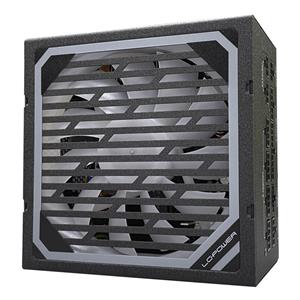

LC Power LC1000M V3.0 PCI-Express 5.0, 1000 W power supply
The LC1000M V3.0 is an 80 PLUS GOLD certified, fully modular ATX power supply that ensures high performance and stability in your system.
Features:
- Power supply series: Super Silent Modular
- ATX Form Factor: ATX V3.0
- Power: 1000 W
- Fan: 135 mm fan
- Fully modular cable management
- Connections:
- 20+4-pin motherboard: 1x 650 mm
- 4+4-pin motherboard 12 V (8-pin EPS): 2x 650 mm
- 4-pin motherboard 12 V: 1x 800 mm
- PCI-Express 5.0 12+4-pin: 1x 600 mm
- 6x PCI-Express 6+2-Pin (3x 675 mm / 3x 750 mm
- SATA: 10x total (3x 500 mm / 3x 650 mm / 2x 800 mm / 2x 950 mm)
- PATA: 5x total (1x 350 mm / 2x 500 mm/ 1x 650 mm / 1x 800 mm)
- Connectivity options SATA & PATA:
- 10x SATA & 0x PATA
- 8x SATA & 3x PATA
- 4x SATA & 5x PATA
- Black sleeved cables
- 80 PLUS GOLD certified
- High efficiency of up to 90
- Full range: 100 - 240 V
- DC-to-DC technology
- Powerful +12 V cable (83.3 A
- Maximum combined: 999.6 W
- +3.3 V: 20.0 A
- +5.0 V: 20.0 A
- Safety circuits:
- OVP = surge protection
- OCP = overcurrent protection
- OPP = overcurrent protection
- SCP = short circuit protection
- RRP = undervoltage protection
- Max combined: 100.0 W
- PFC: active
- Certified: 80 PLUS GOLD
- Efficiency: up to 90%
- Colour: black
- Dimensions: 86 x 150 x 151 mm
- Weight: 2.66 kg
