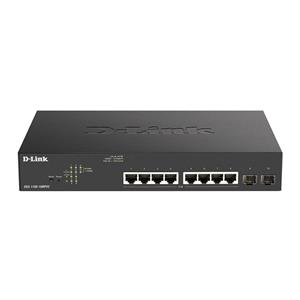

D-Link DGS-1100-10MPV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Certification: FCC A, CE A, VCCI A, C-Tick, BSMI cUL, UL, LVD, CB, BSMI

Design
Product colour: Black
Form factor: 1U
Rack mounting: Yes

Power
AC input voltage: 100 - 240 V
Power consumption (max): 164.6 W

Security
IGMP snooping: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)
Security algorithms: SSL/TLS

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -10 - 50 °C
Heat dissipation: 118.1 BTU/h
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%

Management features
Switch layer: L2
Quality of Service (QoS) support: Yes
Switch type: Managed
Web-based management: Yes

Weight & dimensions
Width: 280 mm
Weight: 1.5 kg
Depth: 180 mm
Height: 44 mm

Network
Rate limiting: Yes
Full duplex: Yes
VLAN support: Yes
Number of VLANs: 4094
Flow control support: Yes
Auto MDI/MDI-X: Yes
Networking standards: IEEE 802.3ad, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.1D, IEEE 802.3bt
Auto-negotiation: Yes
Virtual LAN features: Tagged VLAN, Port-based VLAN, Voice VLAN
10G support: No
Head-of-line (HOL) blocking: Yes
Half duplex: Yes
Link aggregation: Yes

Performance
Flash memory: 16 MB
Mean time between failures (MTBF): 406887 h
Noise level: 37 dB

Ports & interfaces
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8

Data transmission
Switching capacity: 20 Gbit/s
Number of queues: 4
Forwarding rate: 14.88 Mpps
Packet buffer memory: 4.1 MB
MAC address table: 8000 entries
Jumbo frames support: Yes
Jumbo frames: 9216

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 130 W
Power over Ethernet (PoE): Yes

Multicast features
Multicast support: Yes

---
