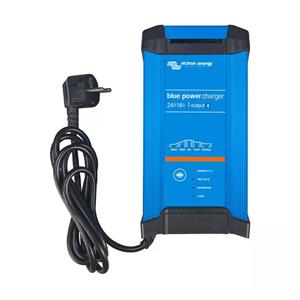

Victron Energy Blue Smart IP22 24V/16A battery charger

Features
Overheat protection: Yes
Night mode: Yes
Polarity reverse circuit protection: Yes
Product type: Loader
Voltage monitoring: Yes
Specific features: 6-stage charging algorithm
Short circuit protection: Yes
Bluetooth: Yes
Brand compatibility: Victron Energy
Programmable: Yes
Can be used as power supply: Yes
Remote on/off switch: Yes
Number of batteries supported simultaneously: 1
Dedicated application: VictronConnect

Design
Product colour: Black, Blue
Power plug: Yes
LED indicators: Yes
International Protection (IP) code: IP22
Built-in display: No
Material: Aluminium
Battery-connection: Screw terminals 16 mm² / AWG6
Integrated charging cable: Yes

Power
Efficiency: 94%
Frequency: 45 / 65 Hz
Charging current: 16 A
Power consumption (idle): 0.5 W
DC battery voltage: 24 V
Charging voltage (absorption) : 28,8 V
Input voltage range: 180 - 265 V
Charging voltage (liquid): 27,6 V

Operational conditions
Operating temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 0 - 98%

Weight & dimensions
Height: 235 mm
Depth: 65 mm
Weight: 1.3 kg
Width: 108 mm
Lead cable length: 1,5 m

---
