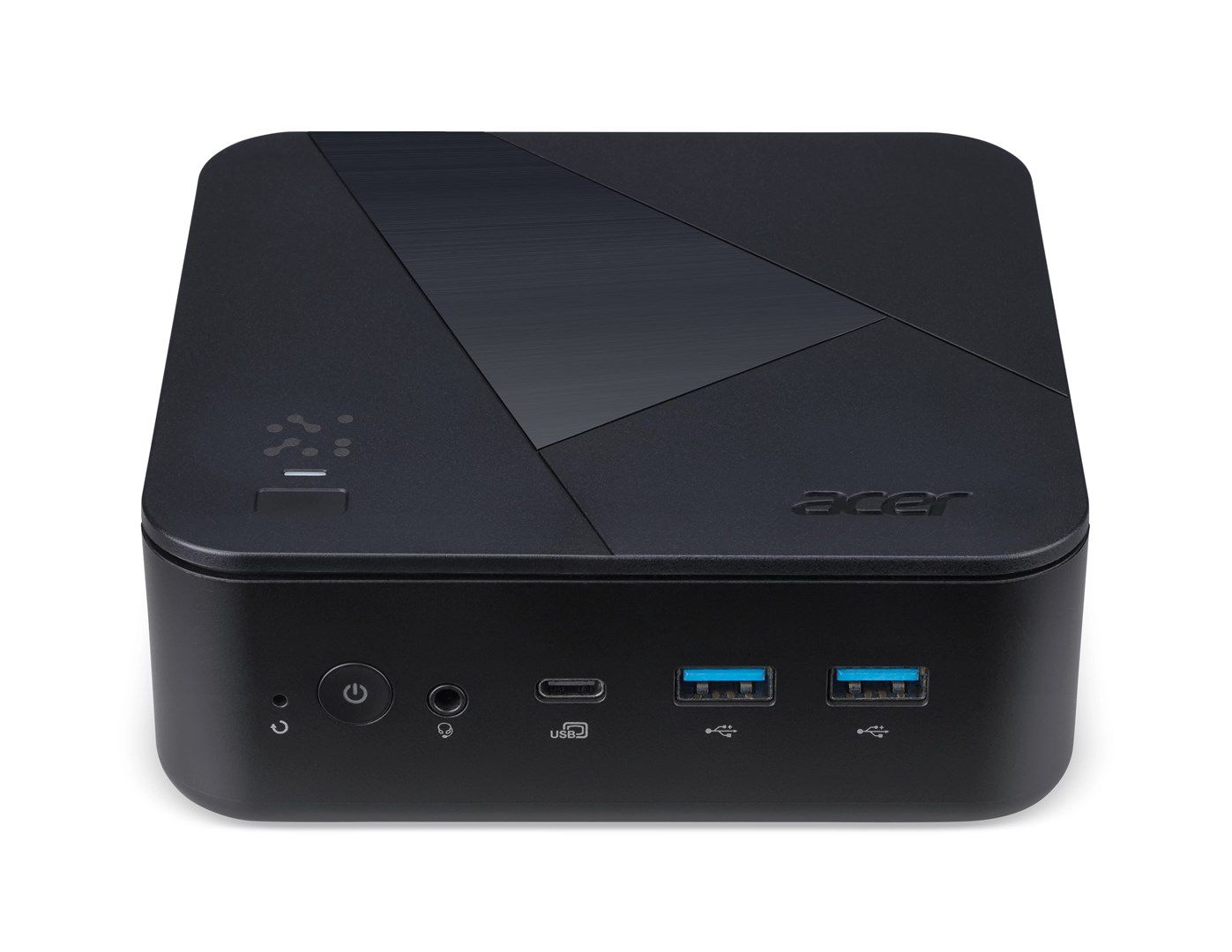

Acer Revo Box RB102-LNL Copilot+ PC Intel Core Ultra 5 226V 16 GB LPDDR5x-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

Processor
Processor family: Intel Core Ultra 5
Processor manufacturer: Intel
Number of processors installed: 1
Processor cache type: Smart Cache
Low Power Efficient-core Base Frequency: 2100 MHz
Processor threads: 8
Processor cache: 8 MB
Low Power Efficient-cores: 4
Processor model: 226V
Low Power Efficient-core Max Turbo Frequency: 3.5 GHz
Processor boost frequency: 4.5 GHz
Processor cores: 8
Processor generation: Intel Core Ultra (Series 2)
Performance cores: 4
Performance-core Max Turbo Frequency: 4.5 GHz
Processor base power: 17 W
Performance-core base frequency: 2.1 GHz
Maximum turbo power: 37 W

Graphics
Discrete graphics card: No
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics 130V
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel

Memory
Internal memory: 16 GB
Internal memory type: LPDDR5x-SDRAM
Maximum internal memory: 16 GB
Memory layout (slots x size): 1 x 16 GB

Design
Chassis type: Mini PC
VESA mounting: Yes
Cable lock slot type: Kensington
Cable lock slot: Yes
Volume: 0.9 L
Product colour: Black

Power
Power supply: 90 W

Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions
Depth: 131 mm
Height: 43 mm
Weight: 500 g
Width: 131 mm

Network
Ethernet LAN data rates: 100, 1000 Mbit/s, 2500
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes

Performance
Product type: Mini PC

Display
Display included: No

Software
Operating system installed: Windows 11 Pro
Operating system architecture: 64-bit

Audio
Audio system: High Definition Audio

Storage
Optical drive type: No
Total SSDs capacity: 512 GB
SSD interface: PCI Express 4.0
SSD form factor: M.2
SSD capacity: 512 GB
Number of SSDs installed: 1
Storage media: SSD
Total storage capacity: 512 GB
NVMe: Yes

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Combo headphone/mic port: Yes
DisplayPort version: 1.4a
USB4 Gen 3x2 ports quantity: 1

Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
NPU performance up to: 40 TOPs
AI software frameworks supported by NPU: DirectML, WebNN, Windows ML, ONNX RT, OpenVINO
GPU performance up to: 53 TOPs
Sparsity support: Yes
Windows Studio effects support: Yes
Total processor performance up to: 97 TOPs
Copilot+ PC: Yes
