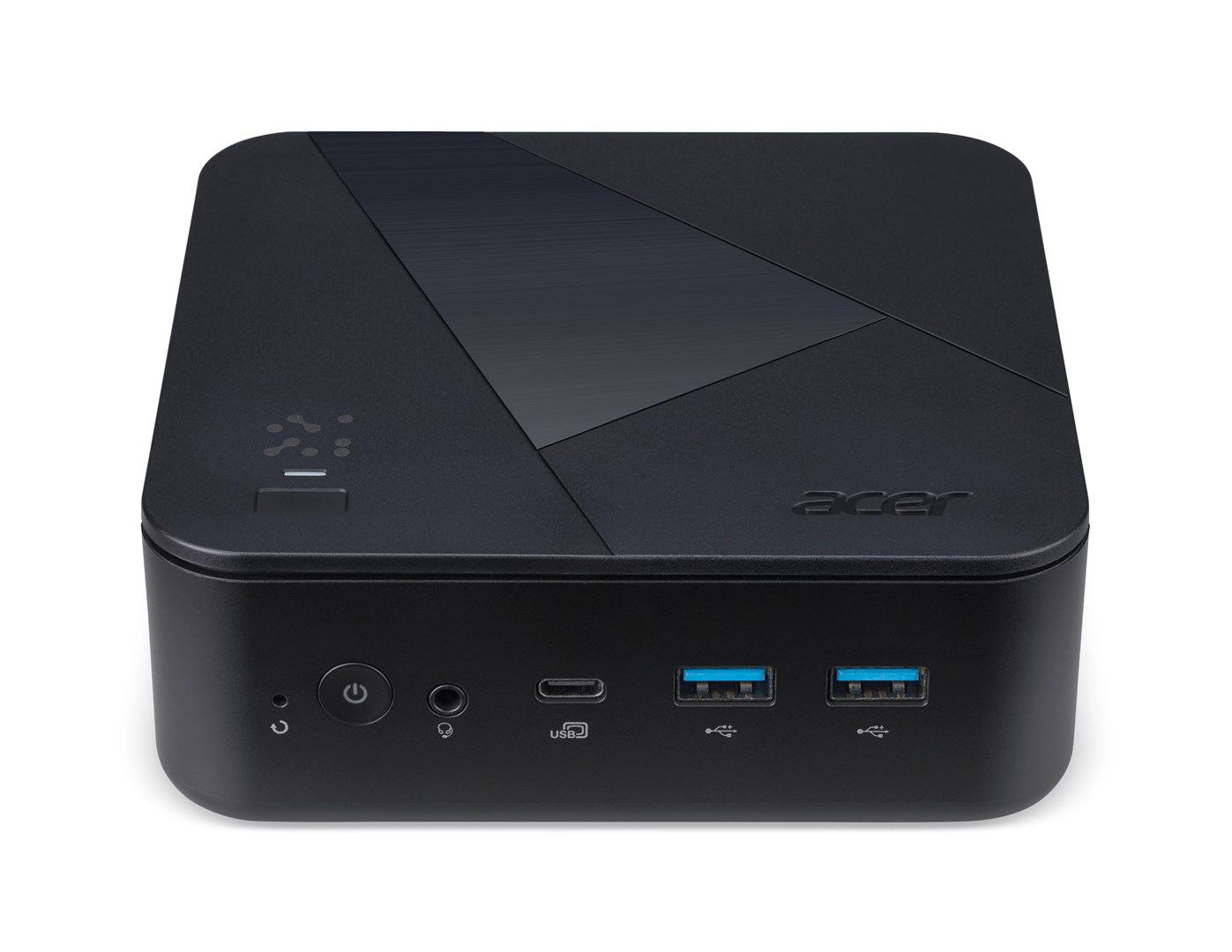

Acer Revo Box RB102-LNL Copilot+ PC Intel Core Ultra 7 256V 16 GB LPDDR5x-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black

Processor
Processor cache: 12 MB
Processor family: Intel Core Ultra 7
Processor boost frequency: 4.8 GHz
Processor manufacturer: Intel
Processor threads: 8
Low Power Efficient-core Base Frequency: 2200 MHz
Low Power Efficient-core Max Turbo Frequency: 3.7 GHz
Low Power Efficient-cores: 4
Maximum turbo power: 37 W
Performance cores: 4
Processor cores: 8
Processor model: 256V
Processor cache type: Smart Cache
Number of processors installed: 1
Performance-core base frequency: 2.2 GHz
Performance-core Max Turbo Frequency: 4.8 GHz
Processor generation: Intel Core Ultra (Series 2)
Processor base power: 17 W

Graphics
Discrete graphics card: No
On-board graphics card family: Intel Arc Graphics
Discrete graphics card model: Not available
On-board graphics card model: Intel Arc Graphics 140V
On-board GPU manufacturer: Intel
On-board graphics card: Yes

Memory
Maximum internal memory: 16 GB
Memory layout (slots x size): 1 x 16 GB
Internal memory: 16 GB
Internal memory type: LPDDR5x-SDRAM

Design
Volume: 0.9 L
Product colour: Black
Chassis type: Mini PC
Cable lock slot: Yes
VESA mounting: Yes
Cable lock slot type: Kensington

Power
Power supply: 90 W

Operational conditions
Storage temperature (T-T): -20 - 60 °C
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Weight: 500 g
Depth: 131 mm
Width: 131 mm
Height: 43 mm

Network
Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s, 2500, 100
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Performance
Product type: Mini PC

Display
Display included: No

Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Audio
Audio system: High Definition Audio

Storage
Number of SSDs installed: 1
NVMe: Yes
SSD form factor: M.2
Total storage capacity: 1 TB
SSD interface: PCI Express 4.0
SSD capacity: 1 TB
Total SSDs capacity: 1 TB
Optical drive type: No
Storage media: SSD

Ports & interfaces
Combo headphone/mic port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI version: 2.1
USB4 Gen 3x2 ports quantity: 1
DisplayPort version: 1.4a
HDMI ports quantity: 1
DC-in jack: Yes

Neural processor unit (NPU)
GPU performance up to: 64 TOPs
Total processor performance up to: 115 TOPs
Sparsity support: Yes
AI software frameworks supported by NPU: WebNN, ONNX RT, Windows ML, DirectML, OpenVINO
Copilot+ PC: Yes
Windows Studio effects support: Yes
NPU performance up to: 47 TOPs
Neural processor unit (NPU): Intel AI Boost
