Processor
Processor boost frequency: 5 GHz
Processor frequency: 4.1 GHz
Processor cores: 8
Processor model: 8400F
Processor family: AMD Ryzen™ 7
Processor base power: 65 W
Processor threads: 16
Processor cache: 16 MB
Processor cache type: L3
Processor manufacturer: AMD
Processor socket: Socket AM5
Number of processors installed: 1
Graphics
CUDA: No
Discrete graphics card model: Intel ARC B580
NVIDIA G-SYNC: No
NVIDIA GameWorks VR: No
Discrete graphics card memory: 12 GB
On-board graphics card model: Not available
Discrete GPU manufacturer: Intel
On-board graphics card: No
Discrete graphics card: Yes
Number of discrete graphics cards: 1
Graphics card DisplayPorts quantity: 3
Graphics card HDMI ports quantity: 1
Discrete graphics memory type: GDDR6
Memory
Maximum internal memory: 256 GB
Non-ECC: Yes
Internal memory type: DDR5-SDRAM
Memory channels: Dual-channel
Memory clock speed: 6000 MHz
Internal memory: 32 GB
Memory slots: 4x DIMM
Memory layout (slots x size): 2 x 16 GB

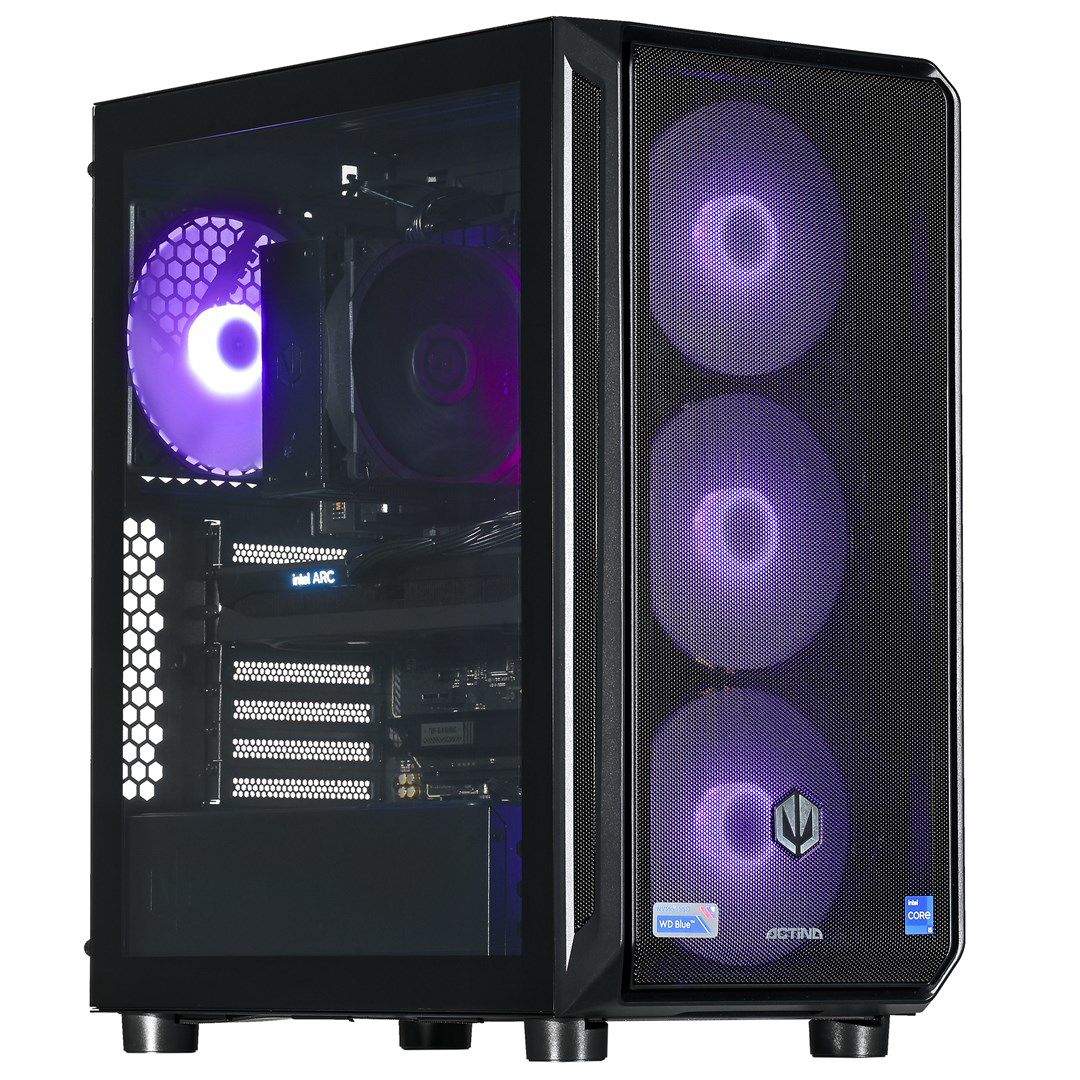

Design
RGB backlighting: Yes
Product colour: Black
VESA mounting: No
Housing material: Metal, Plastic, Tempered glass
Chassis type: Midi Tower
Refurbished: No
Water cooling system: No
Number of 2.5" bays: 6
Number of 3.5" bays: 1
Viewing window: Yes
Power
80 PLUS certification: 80 PLUS Bronze
Power supply: 600 W
Power supply input voltage: 100-240 V
Weight & dimensions
Weight: 10 kg
Height: 486 mm
Width: 228 mm
Depth: 429 mm
Network
Ethernet LAN data rates: 1000, 10, 2500 Mbit/s, 100
LAN controller: Realtek RTL8125-BG
Bluetooth: Yes
Antenna type: 2x2
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi standards: 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN: Yes
Bluetooth version: 5.3
Internal components: MSI B650M GAMING PLUS WIFI / Intel ARC B580 / WD Blue SN5000 / ENDORFY Arx 500 ARGB
Performance
Audio chip: Realtek ALC897
Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Powered by: ENDORFY
Market positioning: Gaming
Product type: PC
Virtual Reality (VR) ready: Yes
Packaging content
Mouse included: No
Display included: No
Keyboard included: No
Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Bundled software: Bitdefender Internet Security
Software
Operating system installed: No
Storage
Optical drive type: No
M.2 SSD size: 2280 (22 x 80 mm)
Card reader integrated: No
Storage media: SSD
Total storage capacity: 1 TB
Number of storage drives installed: 1
Number of storage drives supported: 6
Intel® Optane™ Memory module installed: No
NVMe: Yes
SSD interface: PCI Express
SSD form factor: M.2
SSD capacity: 1 TB
Number of SSDs installed: 1
Total SSDs capacity: 1 TB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Number of SATA III connectors: 4
DisplayPorts quantity: 3
Intel® Thunderbolt 5: No
Number of rear audio ports: 3
DC-in jack: No
Combo headphone/mic port: No
S/PDIF out port: No
Number of front USB ports: 3
Fiber NIC port (Flex I/O): No
Intel® Thunderbolt 4: No
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
HDMI ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
Number of rear USB ports: 8
Line-out: No
Number of front audio ports: 2
Line-in: Yes
Special features: The specification and description are for illustrative purposes only.
Other features
Built-in microphone: No
TV tuner integrated: No
Safety warning
Warnings: Dispose of used electronic devices at specialised disposal facilities., Do not open the appliance housing without the appropriate tools and technical knowledge., Ensure the unit is switched off and disconnected from the power source before carrying out any maintenance.
