Processor
Processor base power: 125 W
Performance cores: 8
Efficient-core base frequency: 2.5 GHz
Efficient cores: 12
Performance-core base frequency: 3.4 GHz
Efficient-core Max Turbo Frequency: 4.3 GHz
Maximum turbo power: 253 W
Number of processors installed: 1
Processor generation: Intel® Core™ i7 (14th gen)
Performance-core Max Turbo Frequency: 5.5 GHz
Processor model: i7-14700KF
Processor cache type: Smart Cache
Processor manufacturer: Intel
Processor cache: 33 MB
Processor threads: 28
Processor socket: LGA 1700
Processor cores: 20
Processor frequency: 2.5 GHz
Processor family: Intel® Core™ i7
Processor boost frequency: 5.6 GHz
Graphics
Discrete graphics memory type: GDDR7
Graphics card HDMI ports quantity: 1
Discrete GPU manufacturer: NVIDIA
Graphics card DisplayPorts quantity: 3
Number of discrete graphics cards: 1
Discrete graphics card: Yes
Discrete graphics card memory: 16 GB
On-board graphics card: No
On-board graphics card model: Not available
NVIDIA GameWorks VR: Yes
Discrete graphics card model: NVIDIA GeForce RTX 5080
CUDA: Yes
NVIDIA G-SYNC: Yes
Memory
Internal memory manufacturer: Kingston
Memory layout (slots x size): 2 x 16 GB
Memory slots: 4x DIMM
Internal memory type: DDR5-SDRAM
Memory clock speed: 6000 MHz
Internal memory: 32 GB
ECC: No
Memory channels: Dual-channel
Maximum internal memory: 256 GB
Design
Water cooling system: Yes
Number of 3.5" bays: 2
Refurbished: No
Housing material: Metal, Plastic, Tempered glass
Viewing window: Yes
Number of 2.5" bays: 2

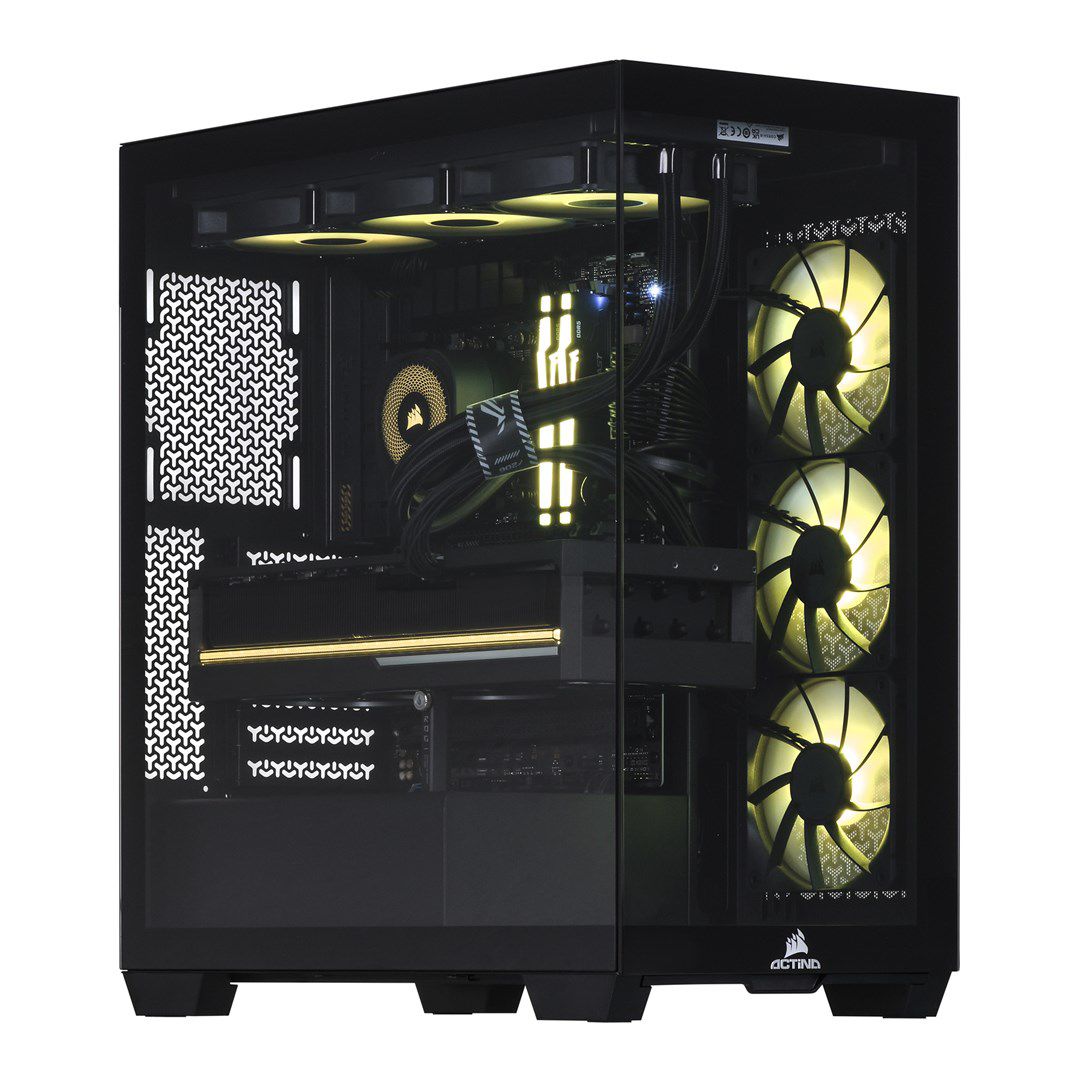

Chassis type: Midi Tower
Product colour: Black
RGB backlighting: Yes
Power
80 PLUS certification: 80 PLUS Gold
Power supply input voltage: 100-240 V
Power supply: 1000 W
Weight & dimensions
Depth: 460 mm
Width: 240 mm
Height: 506 mm
Weight: 10 kg
Network
Bluetooth version: 5.3
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b
Cabling technology: 10/100/1000Base-T(X)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Antenna type: 2x2
Ethernet LAN data rates: 100, 1000, 2500 Mbit/s, 10
Bluetooth: Yes
Internal components: Gigabyte Z790 EAGLE AX / NVIDIA GeForce RTX 5080 / Kingston Fury Beast RGB / WD Black SN 770 / Corsair Nautilus 360 ARGB / Corsair RM1000e / Corsair 3500X ARGB
Performance
Market positioning: Gaming
Product type: PC
Powered by: CORSAIR ICUE
Virtual Reality (VR) ready: Yes
Audio output channels: 7.1 channels
Motherboard chipset: Intel Z790
Motherboard form factor: ATX
Packaging content
Display included: No
Mouse included: No
Keyboard included: No
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Bundled software: Bitdefender Internet Security
Software
Operating system installed: No
Storage
SSD capacity: 2 TB
SSD interface: PCI Express
Number of storage drives installed: 1
NVMe: Yes
M.2 SSD size: 2280 (22 x 80 mm)
SSD form factor: M.2
Intel® Optane™ Memory module installed: No
Total SSDs capacity: 2 TB
Number of SSDs installed: 1
Total storage capacity: 2 TB
Number of storage drives supported: 7
Storage media: SSD
Card reader integrated: No
Optical drive type: No
Ports & interfaces
Intel® Thunderbolt 4: No
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Line-out: No
Number of front USB ports: 3
Fiber NIC port (Flex I/O): No
Line-in: Yes
Combo headphone/mic port: Yes
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DVI port: No
HDMI ports quantity: 1
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Number of rear audio ports: 3
USB 2.0 ports quantity: 2
Number of rear USB ports: 8
S/PDIF out port: No
Number of SATA III connectors: 4
Intel® Thunderbolt 5: No
Ethernet LAN (RJ-45) ports: 1
Number of front audio ports: 1
DisplayPorts quantity: 3
DC-in jack: No
Special features: The specification and description are for illustrative purposes only.
Other features
TV tuner integrated: No
Built-in microphone: No
