Processor
Processor frequency: 4.1 GHz
Processor manufacturer: AMD
Processor socket: Socket AM5
Number of processors installed: 1
Processor cache type: L3
Processor model: 8700F
Processor threads: 16
Processor family: AMD Ryzen™ 7
Processor cores: 8
Processor cache: 16 MB
Processor generation: AMD Ryzen 8000 Series
Processor base power: 65 W
Processor boost frequency: 5 GHz
Graphics
Number of discrete graphics cards: 1
Graphics card DisplayPorts quantity: 3
Discrete graphics memory type: GDDR6
Graphics card HDMI ports quantity: 1
NVIDIA G-SYNC: No
On-board graphics card model: Not available
Discrete graphics card memory: 16 GB
On-board graphics card: No
Discrete graphics card: Yes
Discrete GPU manufacturer: AMD
Graphics card Open GL support: Yes
NVIDIA GameWorks VR: No
CUDA: No
Discrete graphics card model: AMD Radeon RX 9070
Memory
Memory clock speed: 6000 MHz
Memory channels: Dual-channel
Internal memory type: DDR5-SDRAM
Internal memory manufacturer: Kingston
ECC: No
Internal memory: 32 GB
Memory layout (slots x size): 2 x 16 GB
Memory slots: 4x DIMM
Maximum internal memory: 192 GB
Design
Number of 2.5" bays: 5
Refurbished: No

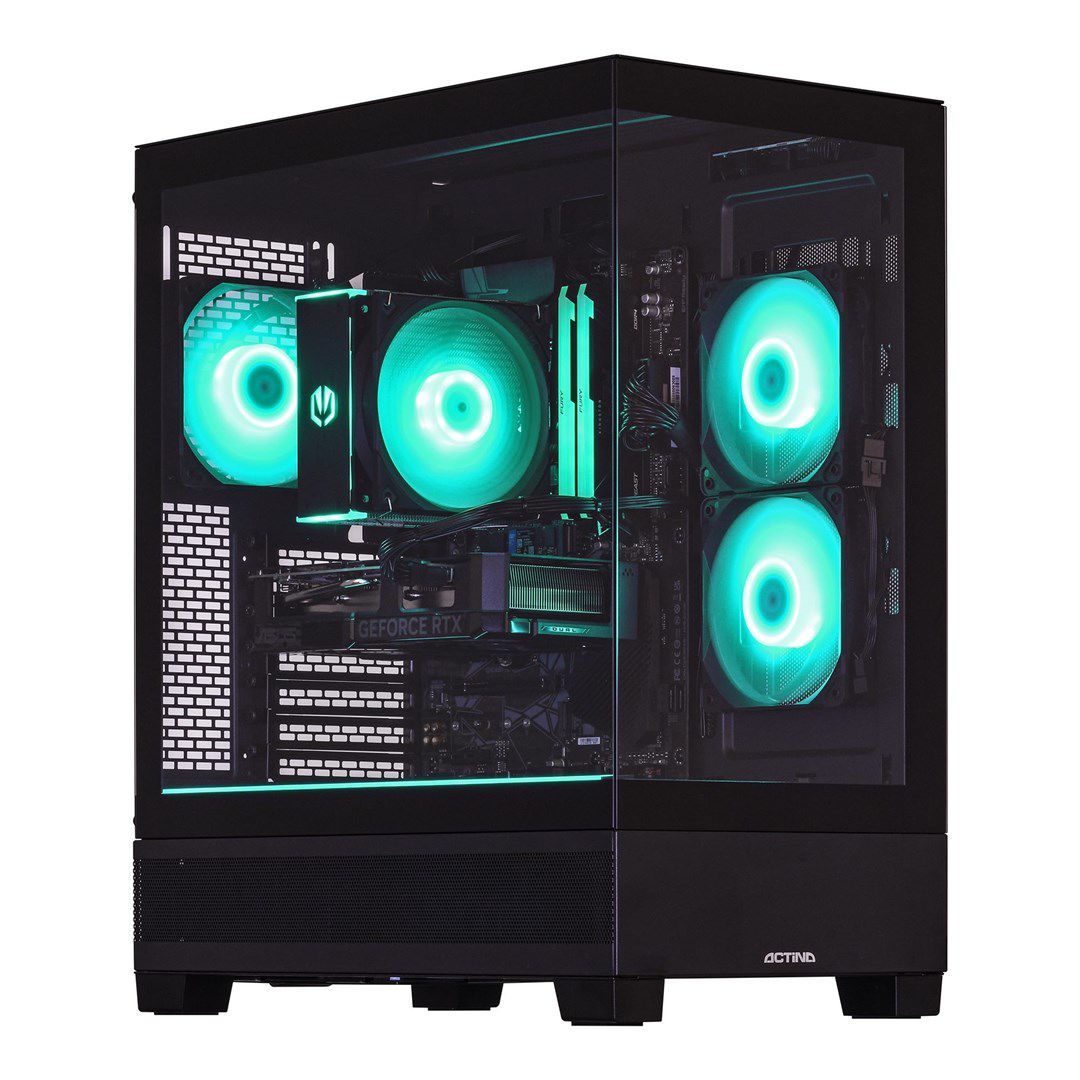

Chassis type: Midi Tower
VESA mounting: No
Water cooling system: No
Housing material: Metal, Plastic, Tempered glass
Viewing window: Yes
Number of 3.5" bays: 2
RGB backlighting: Yes
Product colour: Black
Power
Power supply input voltage: 100-240 V
Power supply: 750 W
80 PLUS certification: 80 PLUS Bronze
Weight & dimensions
Height: 500 mm
Width: 230 mm
Depth: 440 mm
Weight: 10 kg
Network
Ethernet LAN: Yes
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi standards: 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac)
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Bluetooth version: 5.2
Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
Bluetooth: Yes
Antenna type: 2x2
Internal components: ASUS TUF GAMING B650M-PLUS WIFI / AMD Radeon RX 9070 / Kingston Fury Beast RGB / WD Blue SN5000 / ENDORFY Fera 5 Black ARGB / DeepCool PL750-D / Phanteks XT View Window
Performance
Virtual Reality (VR) ready: Yes
Powered by: VIEW
Market positioning: Gaming
Product type: PC
Motherboard form factor: micro ATX
Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
Packaging content
Keyboard included: No
Mouse included: No
Expansion slots
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
Display
Display included: No
Bundled software: Bitdefender Internet Security
Software
Operating system installed: No
Storage
SSD interface: PCI Express
Intel® Optane™ Memory module installed: No
Number of SSDs installed: 1
Total storage capacity: 1 TB
Card reader integrated: No
Optical drive type: No
Number of storage drives installed: 1
SSD form factor: M.2
Total SSDs capacity: 1 TB
Storage media: SSD
Number of storage drives supported: 6
NVMe: Yes
SSD capacity: 1 TB
M.2 SSD size: 2280 (22 x 80 mm)
Ports & interfaces
Headphone outputs: 1
HDMI ports quantity: 1
Combo headphone/mic port: Yes
Microphone in: Yes
DVI port: No
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
Number of front USB ports: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Number of front audio ports: 1
Fiber NIC port (Flex I/O): No
Number of rear USB ports: 8
Intel® Thunderbolt 5: No
Line-in: Yes
Line-out: Yes
Number of rear audio ports: 6
Intel® Thunderbolt 4: No
DisplayPorts quantity: 3
DC-in jack: No
S/PDIF out port: No
Number of SATA III connectors: 4
Special features: The specification and description are for illustrative purposes only.
Other features
Built-in microphone: No
TV tuner integrated: No
