Processor
Performance cores: 6
Efficient cores: 4
Number of processors installed: 1
Efficient-core base frequency: 1.8 GHz
Performance-core base frequency: 2.5 GHz
Processor socket: LGA 1851 (Socket V1)
Processor model: i5-14400F
Processor boost frequency: 4.7 GHz
Processor cores: 10
Processor threads: 16
Processor frequency: 1.8 GHz
Processor cache type: Smart Cache
Processor cache: 20 MB
Processor family: Intel® Core™ i5
Processor manufacturer: Intel
Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core Max Turbo Frequency: 4.7 GHz
Maximum turbo power: 148 W
Processor generation: Intel® Core™ i5 (14th gen)
Processor base power: 65 W
Graphics
Number of discrete graphics cards: 1
Discrete graphics memory type: GDDR7
Discrete graphics card: Yes
Graphics card HDMI ports quantity: 1
Discrete GPU manufacturer: NVIDIA
Graphics card DisplayPorts quantity: 3
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics card memory: 12 GB
On-board graphics card: No
NVIDIA GameWorks VR: Yes
On-board graphics card model: Not available
CUDA: Yes
NVIDIA G-SYNC: Yes
Memory
Memory layout (slots x size): 2 x 16 GB
Memory slots: 4x DIMM
Maximum internal memory: 192 GB
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
ECC: No
Memory channels: Dual-channel
Memory clock speed: 6000 MHz
Design
Viewing window: No
Number of 3.5" bays: 2
VESA mounting: No
Housing material: Metal, Plastic
Number of 2.5" bays: 5

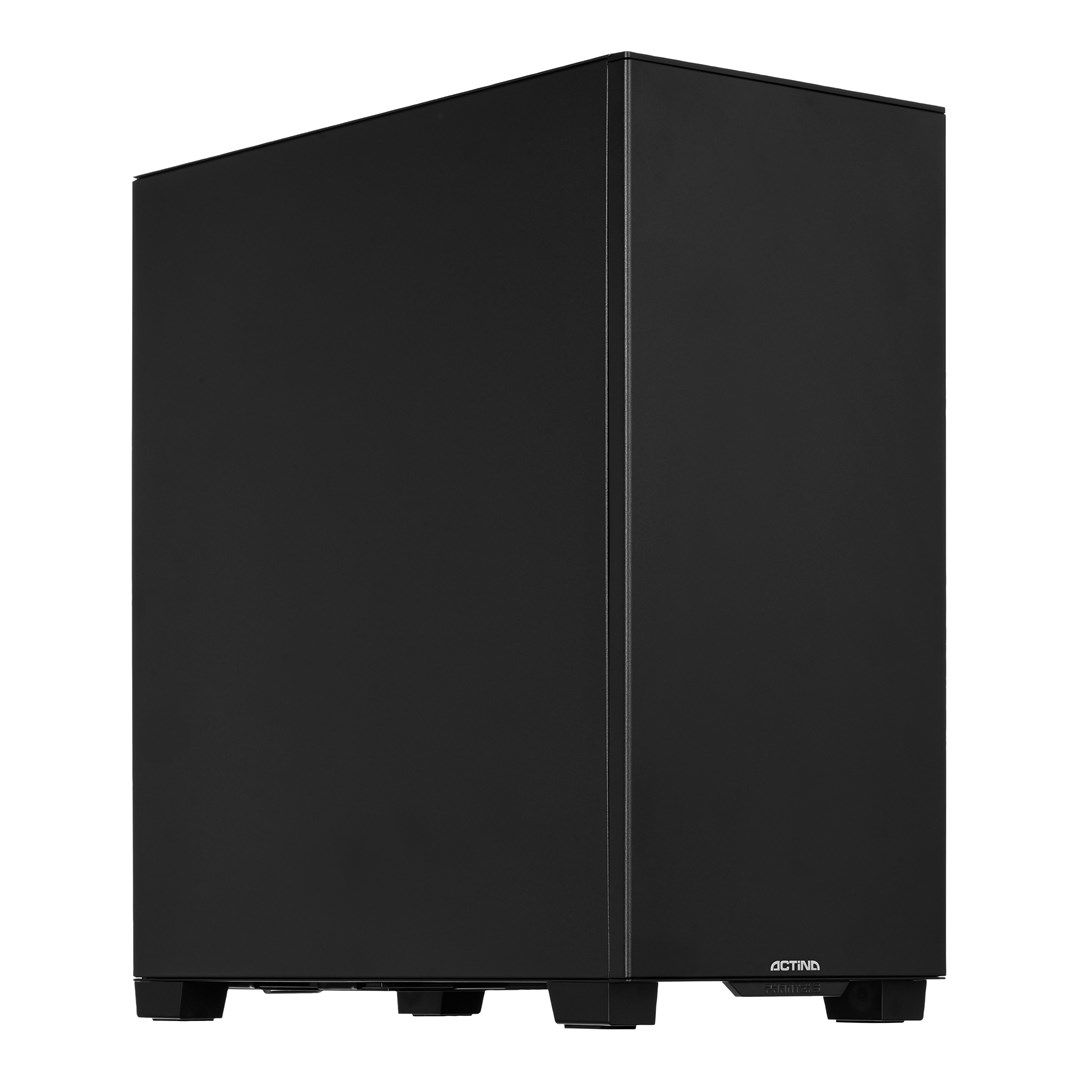

Chassis type: Midi Tower
Water cooling system: No
Refurbished: No
Product colour: Black
RGB backlighting: Not
Power
80 PLUS certification: 80 PLUS Bronze
Power supply: 650 W
Power supply input voltage: 100-240 V
Weight & dimensions
Height: 500 mm
Depth: 450 mm
Width: 230 mm
Weight: 12 kg
Network
Wi-Fi: Yes
Ethernet LAN: Yes
Bluetooth version: 5.2
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 1000, 10, 100, 2500 Mbit/s
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b
Antenna type: 2x2
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Internal components: ASUS TUF GAMING B760-PLUS WIFI / NVIDIA GeForce RTX 5060 / WD Blue SN5000 / Phanteks XT Silent
Performance
Market positioning: Gaming
Product type: PC
Powered by: SILENT
Virtual Reality (VR) ready: Yes
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Packaging content
Mouse included: No
Keyboard included: No
Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Display
Display included: No
Bundled software: Bitdefender Internet Security
Software
Operating system installed: No
Storage
Number of storage drives supported: 7
SSD capacity: 1 TB
Number of storage drives installed: 1
SSD form factor: M.2
NVMe: Yes
Card reader integrated: No
Total SSDs capacity: 1 TB
SSD interface: PCI Express
Intel® Optane™ Memory module installed: No
Number of SSDs installed: 1
Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
M.2 SSD size: 2280 (22 x 80 mm)
Ports & interfaces
Line-in: Yes
Intel® Thunderbolt 4: No
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Line-out: Yes
Microphone in: Yes
Headphone outputs: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Number of SATA III connectors: 4
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
DisplayPorts quantity: 3
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DVI port: No
S/PDIF out port: Yes
HDMI ports quantity: 1
Fiber NIC port (Flex I/O): No
DC-in jack: No
Number of front USB ports: 2
Number of front audio ports: 1
Number of rear audio ports: 5
Intel® Thunderbolt 5: No
Number of rear USB ports: 6
Special features: The specification and description are for illustrative purposes only.
Other features
TV tuner integrated: No
Built-in microphone: No
