Processor
Processor generation: Intel® Core™ i5 (14th gen)
Number of processors installed: 1
Maximum turbo power: 148 W
Performance-core base frequency: 2.5 GHz
Efficient cores: 4
Performance cores: 6
Processor base power: 65 W
Efficient-core base frequency: 1.8 GHz
Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core Max Turbo Frequency: 4.7 GHz
Processor boost frequency: 4.7 GHz
Processor family: Intel® Core™ i5
Processor threads: 16
Processor model: i5-14400F
Processor cores: 10
Processor cache: 20 MB
Processor socket: LGA 1851 (Socket V1)
Processor cache type: Smart Cache
Processor manufacturer: Intel
Processor frequency: 1.8 GHz
Graphics
Graphics card DisplayPorts quantity: 3
Number of discrete graphics cards: 1
Discrete GPU manufacturer: NVIDIA
Graphics card HDMI ports quantity: 1
Discrete graphics memory type: GDDR7
On-board graphics card model: Not available
Discrete graphics card model: NVIDIA GeForce RTX 5060 Ti
NVIDIA GameWorks VR: Yes
CUDA: Yes
NVIDIA G-SYNC: Yes
Discrete graphics card: Yes
Discrete graphics card memory: 16 GB
On-board graphics card: No
Memory
Memory layout (slots x size): 2 x 16 GB
Memory slots: 4x DIMM
Maximum internal memory: 192 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 6000 MHz
Memory channels: Dual-channel
ECC: No
Internal memory: 32 GB
Design
Housing material: Metal, Plastic
Number of 2.5" bays: 5

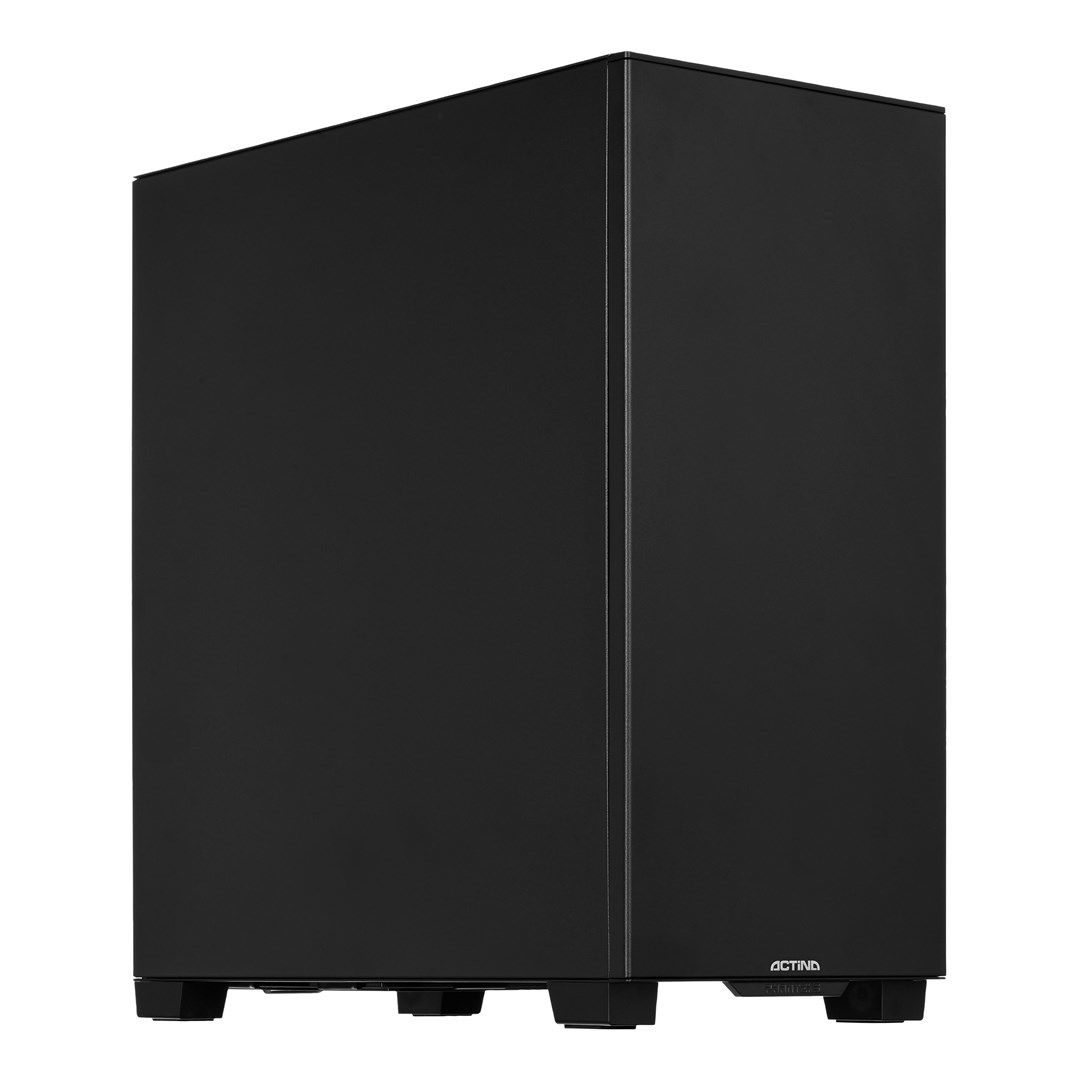

Chassis type: Midi Tower
Water cooling system: No
Refurbished: No
VESA mounting: No
Viewing window: No
Number of 3.5" bays: 2
RGB backlighting: Yes
Product colour: Black
Power
Power supply: 650 W
80 PLUS certification: 80 PLUS Bronze
Power supply input voltage: 100-240 V
Weight & dimensions
Height: 500 mm
Weight: 12 kg
Depth: 450 mm
Width: 230 mm
Network
Bluetooth version: 5.2
Ethernet LAN data rates: 1000, 100, 2500 Mbit/s, 10
Bluetooth: Yes
Antenna type: 2x2
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Internal components: ASUS TUF GAMING B760-PLUS WIFI / NVIDIA GeForce RTX 5060 Ti / WD Blue SN5000 / Phanteks XT Silent
Performance
Product type: PC
Powered by: SILENT
Market positioning: Gaming
Virtual Reality (VR) ready: Yes
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Packaging content
Mouse included: No
Keyboard included: No
Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Display
Display included: No
Bundled software: Bitdefender Internet Security
Software
Operating system installed: No
Storage
SSD interface: PCI Express
SSD capacity: 1 TB
Intel® Optane™ Memory module installed: No
Number of storage drives installed: 1
NVMe: Yes
Total SSDs capacity: 1 TB
SSD form factor: M.2
Number of SSDs installed: 1
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No
Card reader integrated: No
Total storage capacity: 1 TB
Storage media: SSD
Number of storage drives supported: 7
Ports & interfaces
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Intel® Thunderbolt 4: No
Line-out: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Number of front USB ports: 2
Number of rear audio ports: 5
Intel® Thunderbolt 5: No
Fiber NIC port (Flex I/O): No
Number of front audio ports: 1
Number of rear USB ports: 6
Number of SATA III connectors: 4
Ethernet LAN (RJ-45) ports: 1
DC-in jack: No
S/PDIF out port: Yes
DisplayPorts quantity: 3
HDMI ports quantity: 1
Combo headphone/mic port: Yes
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DVI port: No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Microphone in: Yes
USB 2.0 ports quantity: 1
Special features: The specification and description are for illustrative purposes only.
Other features
TV tuner integrated: No
Built-in microphone: No
