Processor
Efficient cores: 8
Number of processors installed: 1
Processor base power: 125 W
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Processor cache type: Smart Cache
Processor cores: 14
Performance-core base frequency: 4.2 GHz
Processor threads: 14
Efficient-core base frequency: 3.6 GHz
Processor model: 245KF
Performance cores: 6
Maximum turbo power: 159 W
Processor frequency: 3.6 GHz
Processor family: Intel Core Ultra 5
Processor manufacturer: Intel
Processor generation: Intel Core Ultra (Series 2)
Processor cache: 24 MB
Processor socket: LGA 1851 (Socket V1)
Processor boost frequency: 5.2 GHz
Graphics
Ray tracing acceleration: Yes
Graphics card HDMI ports quantity: 1
Graphics card DisplayPorts quantity: 3
Number of discrete graphics cards: 1
Discrete GPU manufacturer: NVIDIA
Discrete graphics memory type: GDDR7
On-board graphics card: No
Discrete graphics card: Yes
NVIDIA GameWorks VR: Yes
NVIDIA G-SYNC: Yes
CUDA: Yes
Discrete graphics card memory: 16 GB
On-board graphics card model: Not available
Discrete graphics card model: NVIDIA GeForce RTX 5060 Ti
Memory
Memory slots: 4x DIMM
Memory layout (slots x size): 2 x 16 GB
Internal memory: 32 GB
Memory clock speed: 6000 MHz
Internal memory type: DDR5-SDRAM
Memory channels: Dual-channel
ECC: No
Maximum internal memory: 256 GB
Design
Housing material: Metal, Plastic
Number of 3.5" bays: 2

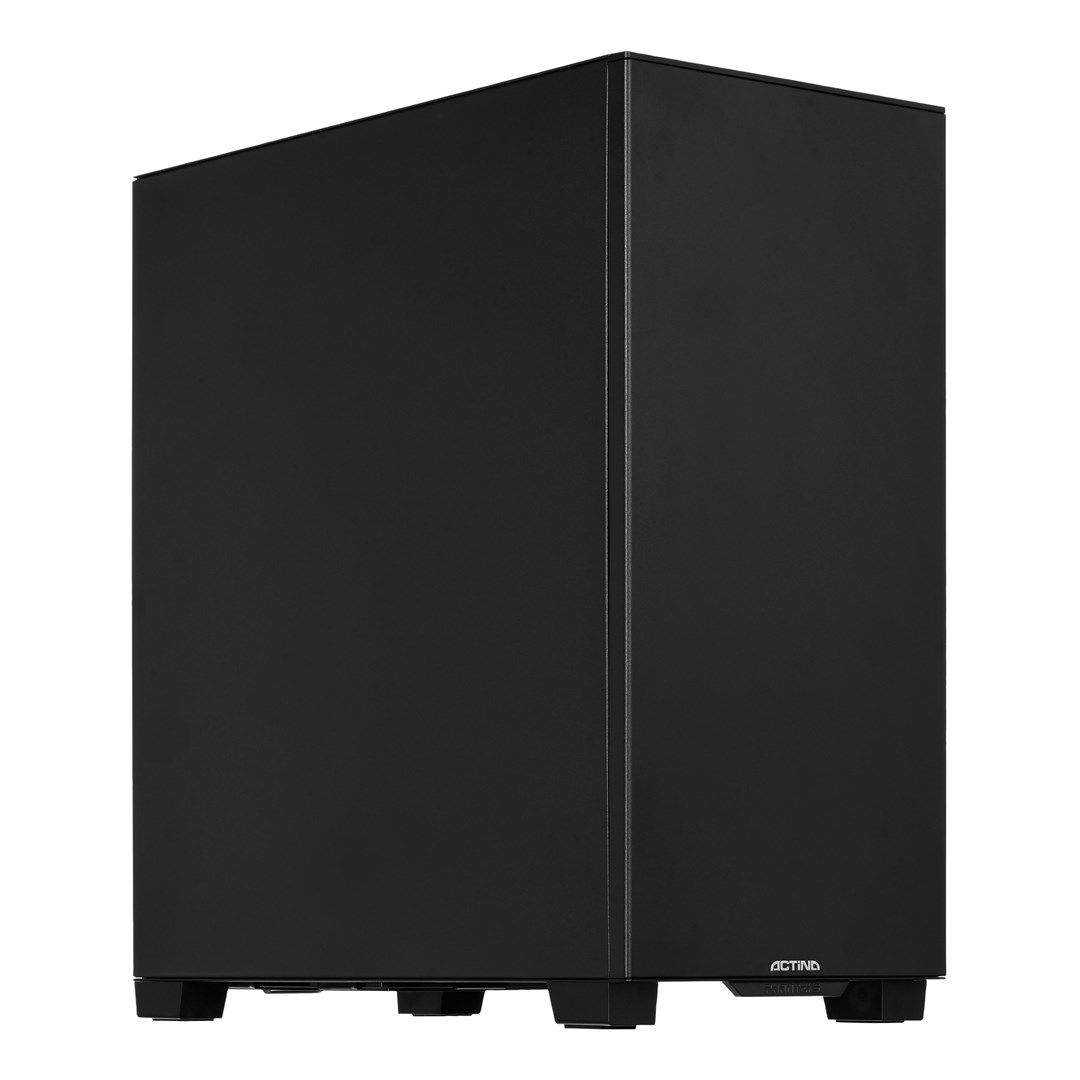

Chassis type: Midi Tower
Number of 2.5" bays: 5
Water cooling system: No
Viewing window: No
Refurbished: No
VESA mounting: No
RGB backlighting: Not
Product colour: Black
Power
Power supply: 650 W
Power supply input voltage: 100-240 V
80 PLUS certification: 80 PLUS Bronze
Weight & dimensions
Depth: 450 mm
Height: 500 mm
Width: 230 mm
Weight: 12 kg
Network
Bluetooth version: 5.3
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g
Ethernet LAN: Yes
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi: Yes
Antenna type: 2x2
Ethernet LAN data rates: 10, 100, 2500, 1000
LAN controller: Dragon RTL8125BG
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Internal components: ASRock B860 Pro RS WiFi / NVIDIA GeForce RTX 5060 Ti / WD Blue SN5000 / Phanteks XT Silent
Performance
Powered by: SILENT
Virtual Reality (VR) ready: Yes
Market positioning: Gaming
Product type: PC
Motherboard chipset: Intel B860
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Packaging content
Keyboard included: No
Mouse included: No
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Display
Display included: No
Bundled software: Bitdefender Internet Security
Software
Operating system installed: No
Storage
NVMe: Yes
Number of storage drives installed: 1
SSD interface: PCI Express
M.2 SSD size: 2280 (22 x 80 mm)
SSD form factor: M.2
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
Storage media: SSD
Number of storage drives supported: 7
Total storage capacity: 1 TB
Intel® Optane™ Memory module installed: No
Card reader integrated: No
Optical drive type: No
Ports & interfaces
Fiber NIC port (Flex I/O): No
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Number of front audio ports: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Intel® Thunderbolt 5: No
Line-in: Yes
Number of rear USB ports: 9
Line-out: Yes
Intel® Thunderbolt 4: No
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Combo headphone/mic port: Yes
Number of front USB ports: 2
DC-in jack: No
Number of rear audio ports: 3
S/PDIF out port: No
DVI port: No
Number of SATA III connectors: 4
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 7
DisplayPorts quantity: 3
HDMI ports quantity: 1
Special features: The specification and description are for illustrative purposes only.
Other features
Built-in microphone: No
TV tuner integrated: No
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
NPU performance up to: 13 TOPs
Windows Studio effects support: Yes
Total processor performance up to: 22 TOPs
AI software frameworks supported by NPU: OpenVINO, Windows ML, DirectML, ONNX RT, WebNN
AI datatype support on NPU: Int8
Sparsity support: Yes
