Processor
Maximum turbo power: 250 W
Processor base power: 125 W
Performance-core base frequency: 3.9 GHz
Performance cores: 8
Processor manufacturer: Intel
Performance-core Max Turbo Frequency: 5.4 GHz
Processor boost frequency: 5.5 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Efficient cores: 12
Number of processors installed: 1
Processor generation: Intel Core Ultra (Series 2)
Processor cache type: Smart Cache
Processor socket: LGA 1851 (Socket V1)
Efficient-core base frequency: 3.3 GHz
Processor model: 265KF
Processor cores: 20
Processor threads: 20
Processor frequency: 3.3 GHz
Processor cache: 30 MB
Processor family: Intel Core Ultra 7
Graphics
Ray tracing acceleration: Yes
Discrete graphics memory type: GDDR7
Discrete graphics card: Yes
NVIDIA G-SYNC: Yes
Discrete graphics card model: NVIDIA GeForce RTX 5070
Number of discrete graphics cards: 1
Graphics card DisplayPorts quantity: 3
On-board graphics card: No
Graphics card HDMI ports quantity: 1
CUDA: Yes
Discrete graphics card memory: 12 GB
On-board graphics card model: Not available
Discrete GPU manufacturer: NVIDIA
NVIDIA GameWorks VR: Yes
Memory
Maximum internal memory: 256 GB
Memory layout (slots x size): 2 x 16 GB
Memory channels: Dual-channel
Memory slots: 4x DIMM
Internal memory type: DDR5-SDRAM
Memory clock speed: 6000 MHz
Internal memory: 32 GB
Design
Product colour: White
RGB backlighting: Not
Number of 3.5" bays: 3
VESA mounting: No

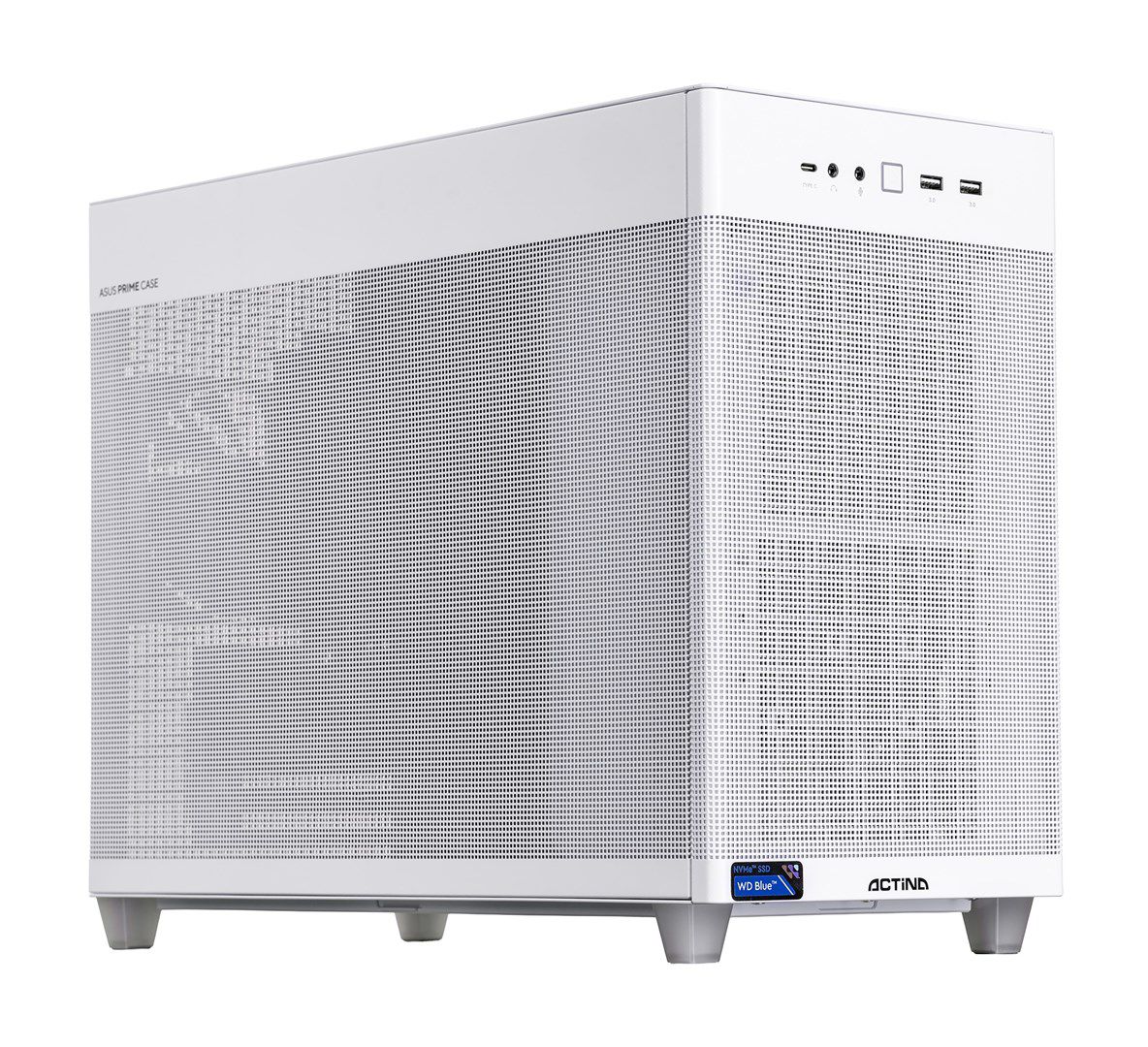

Chassis type: Mini Tower
Housing material: Metal, Plastic
Water cooling system: Yes
Refurbished: No
Number of 2.5" bays: 1
Viewing window: No
Power
80 PLUS certification: 80 PLUS Gold
Power supply: 750 W
Power supply input voltage: 100-240 V
Weight & dimensions
Width: 205 mm
Depth: 460 mm
Height: 350 mm
Weight: 10 kg
Network
Antenna type: 2x2
LAN controller: Realtek RTL8125-BG
Bluetooth: Yes
Ethernet LAN data rates: 100, 1000, 10, 2500 Mbit/s
Bluetooth version: 5.3
Wi-Fi: Yes
Ethernet LAN: Yes
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Cabling technology: 10/100/1000Base-T(X)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Internal components: ASRock B860M Pro-A WiFi / NVIDIA GeForce RTX 5070 / WD Blue SN5100 / ASUS Prime AP201
Performance
Market positioning: Gaming
Product type: PC
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard form factor: micro ATX
Powered by: ASUS
Virtual Reality (VR) ready: Yes
Motherboard chipset: Intel B860
Packaging content
Mouse included: No
Keyboard included: No
Expansion slots
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Display
Display included: No
Bundled software: Bitdefender Internet Security
Software
Operating system installed: No
Storage
Number of storage drives installed: 1
Number of storage drives supported: 7
Card reader integrated: No
Number of SSDs installed: 1
M.2 SSD size: 2280 (22 x 80 mm)
SSD form factor: M.2
NVMe: Yes
SSD capacity: 1 TB
Intel® Optane™ Memory module installed: No
Storage media: SSD
SSD interface: PCI Express
Optical drive type: No
Total SSDs capacity: 1 TB
Total storage capacity: 1 TB
Ports & interfaces
Number of front audio ports: 2
Number of rear audio ports: 3
Intel® Thunderbolt 5: No
Headphone outputs: 1
Intel® Thunderbolt 4: No
USB 2.0 ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: No
DVI port: No
Fiber NIC port (Flex I/O): No
Microphone in: Yes
Number of front USB ports: 3
Line-in: Yes
Line-out: Yes
Number of SATA III connectors: 4
S/PDIF out port: No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
DisplayPorts quantity: 3
HDMI ports quantity: 1
Number of rear USB ports: 6
Special features: The specification and description are for illustrative purposes only.
Other features
TV tuner integrated: No
Built-in microphone: No
Neural processor unit (NPU)
AI software frameworks supported by NPU: ONNX RT, WebNN, OpenVINO, DirectML, Windows ML
Sparsity support: Yes
Neural processor unit (NPU): Intel AI Boost
Total processor performance up to: 25 TOPs
Windows Studio effects support: Yes
AI datatype support on NPU: Int8
NPU performance up to: 13 TOPs
