Processor
Processor cores: 14
Processor threads: 14
Processor family: Intel Core Ultra 5
Processor model: 245KF
Processor generation: Intel Core Ultra (Series 2)
Efficient-core base frequency: 3.6 GHz
Processor cache: 24 MB
Processor base power: 125 W
Processor frequency: 3.6 GHz
Maximum turbo power: 159 W
Performance cores: 6
Processor manufacturer: Intel
Processor cache type: Smart Cache
Number of processors installed: 1
Processor socket: LGA 1851 (Socket V1)
Performance-core base frequency: 4.2 GHz
Efficient cores: 8
Processor boost frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core Max Turbo Frequency: 5.2 GHz
Graphics
On-board graphics card model: Not available
Discrete graphics card memory: 12 GB
Discrete GPU manufacturer: NVIDIA
Discrete graphics memory type: GDDR7
AMD FreeSync: Yes
Graphics card HDMI ports quantity: 1
Ray tracing acceleration: Yes
NVIDIA G-SYNC: Yes
On-board graphics card: No
Number of discrete graphics cards: 1
Discrete graphics card: Yes
Graphics card DisplayPorts quantity: 3
NVIDIA GameWorks VR: Yes
Discrete graphics card model: NVIDIA GeForce RTX 5070
CUDA: Yes
Memory
Memory clock speed: 6000 MHz
Internal memory: 32 GB
Memory layout (slots x size): 2 x 16 GB
Memory channels: Dual-channel
Memory slots: 4x DIMM
ECC: No
Internal memory type: DDR5-SDRAM
Maximum internal memory: 256 GB
Design
RGB backlighting: Yes
Number of 3.5" bays: 2
Certified refurbished: No
Number of 2.5" bays: 3
Water cooling system: Yes
Housing material: Plastic, Metal, Tempered glass
Viewing window: Yes
Chassis type: Midi Tower
Refurbished: No
Product colour: Black
Power
Power supply input voltage: 100-240 V
Power supply: 750 W
80 PLUS certification: 80 PLUS Bronze
Weight & dimensions
Height: 490 mm
Width: 232 mm
Depth: 460 mm
Weight: 12 kg
Network
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
WLAN controller manufacturer: Intel
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi: Yes
Bluetooth: Yes
LAN controller: Realtek RTL8126
Antenna type: 2x2
Ethernet LAN data rates: 2500 Mbit/s, 5000 Mbit/s, 10, 1000 Mbit/s, 100

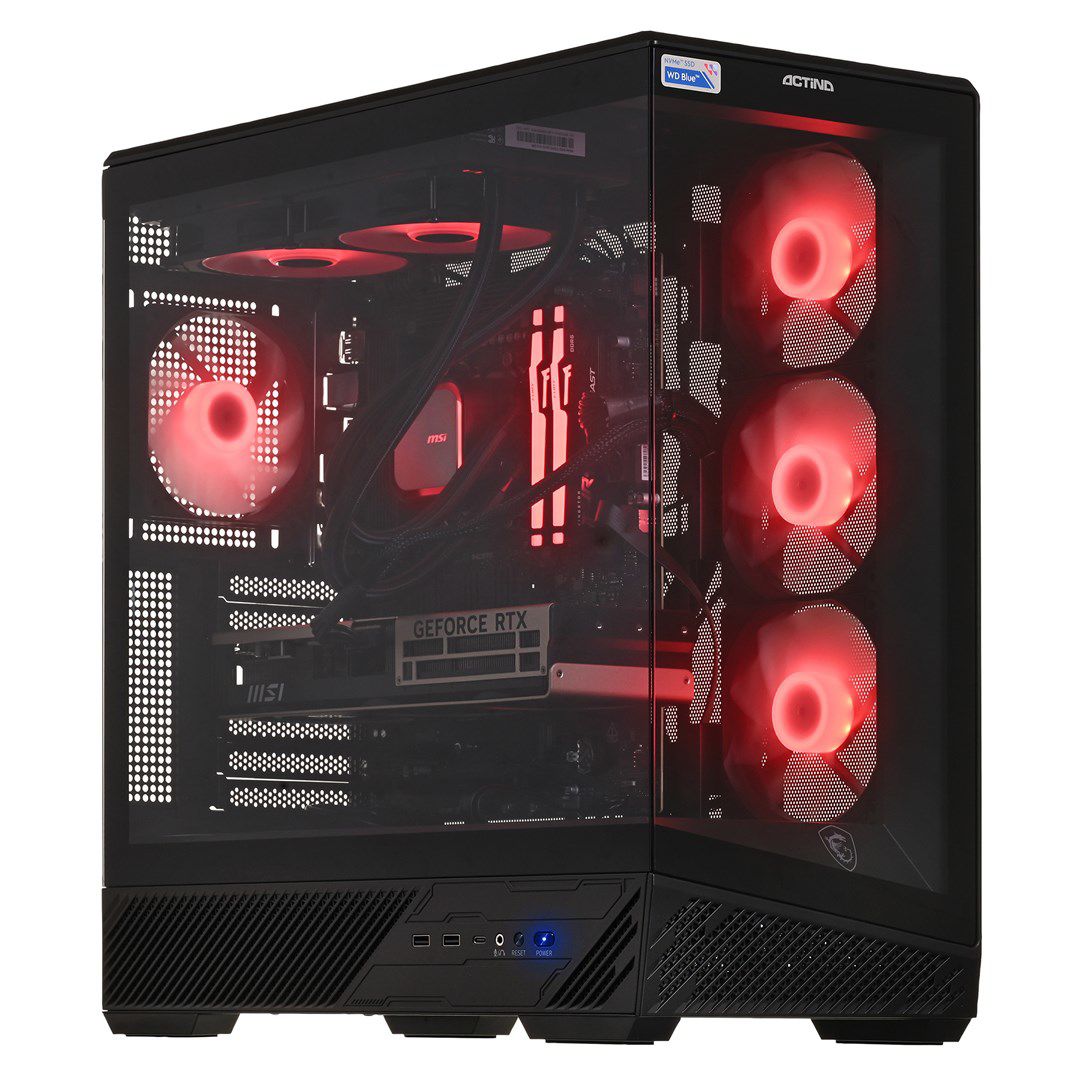

Internal components: MSI PRO B860-P WIFI / NVIDIA GeForce RTX 5070 / WD Blue SN5100 / MSI MAG PANO 130R PZ
Performance
Market positioning: Gaming
Product type: PC
Virtual Reality (VR) ready: Yes
Powered by: SELECTION
Audio output channels: 7.1 channels
Motherboard chipset: Intel B860
Motherboard form factor: ATX
Audio chip: Realtek ALC897
Packaging content
Mouse included: No
Keyboard included: No
Expansion slots
PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
Display
Display included: No
Bundled software: Bitdefender Internet Security
Software
Operating system installed: No
Storage
Intel® Optane™ Memory module installed: No
Number of storage drives installed: 1
Total storage capacity: 1 TB
Total SSDs capacity: 1 TB
Optical drive type: No
SSD capacity: 1 TB
NVMe: Yes
SSD form factor: M.2
SSD interface: PCI Express
Number of SSDs installed: 1
Storage media: SSD
Number of storage drives supported: 7
Card reader integrated: No
M.2 SSD size: 2280 (22 x 80 mm)
Ports & interfaces
Number of rear USB ports: 9
Number of rear audio ports: 3
Intel® Thunderbolt 4: Yes
Combo headphone/mic port: Yes
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Number of front audio ports: 1
Line-out: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Number of front USB ports: 3
Thunderbolt 4 ports quantity: 1
Line-in: Yes
USB 2.0 ports quantity: 4
Intel® Thunderbolt 5: No
Microphone in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
S/PDIF out port: No
DisplayPorts quantity: 3
Number of SATA III connectors: 4
Fiber NIC port (Flex I/O): No
Special features: The specification and description are for illustrative purposes only.
Other features
TV tuner integrated: No
Built-in microphone: No
Neural processor unit (NPU)
AI datatype support on NPU: Int8
Windows Studio effects support: Yes
AI software frameworks supported by NPU: OpenVINO, ONNX RT, Windows ML, DirectML
NPU performance up to: 13 TOPs
Total processor performance up to: 22 TOPs
Sparsity support: Yes
Neural processor unit (NPU): Intel AI Boost
