ADATA XPG PYLON NETZTEIL 550W 80 PLUS BRONZE

ADATA XPG PYLON Power Supply 550W 80 PLUS Bronze

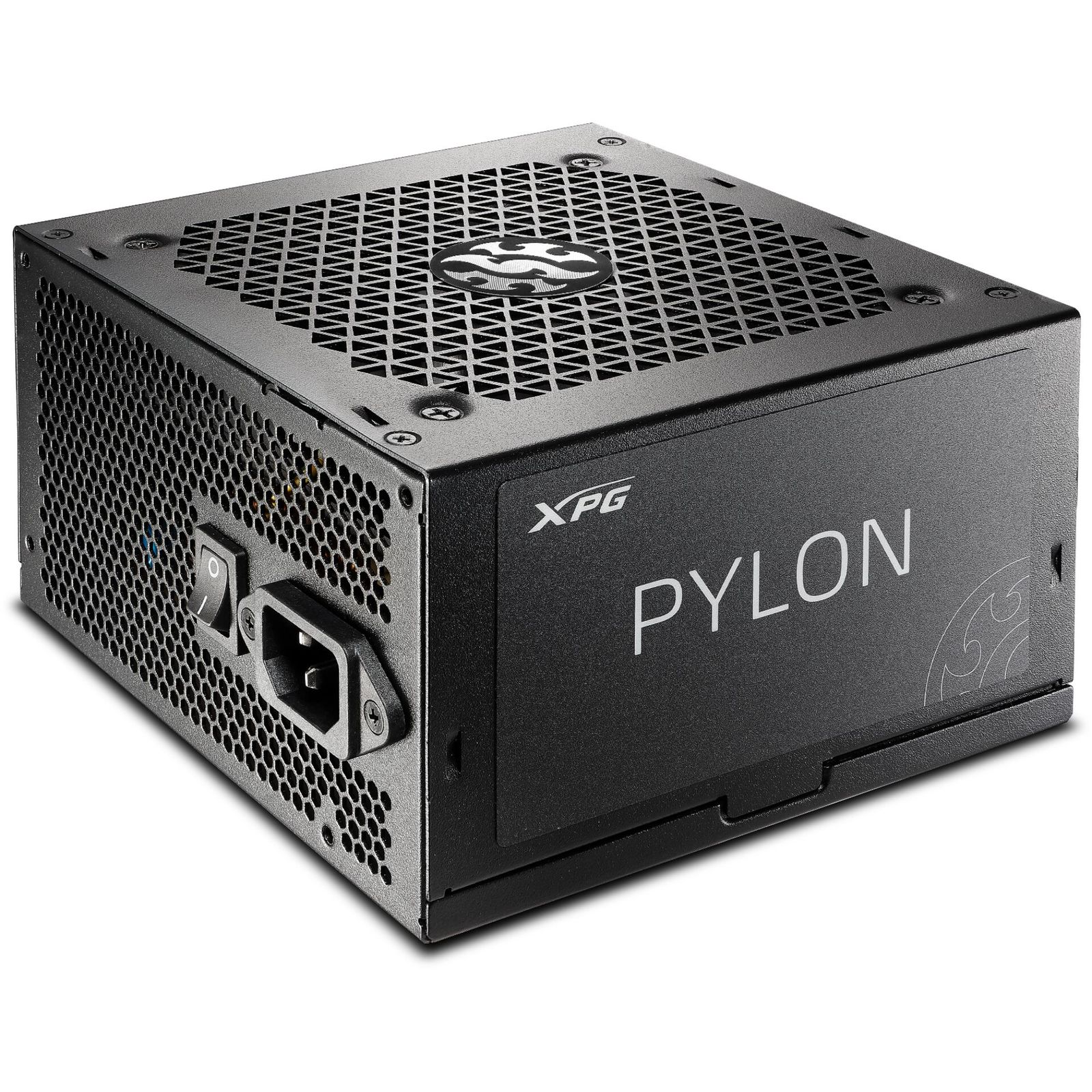

The ADATA XPG PYLON 550 Bronze is an ATX power supply with 550 watts of output, 80 PLUS Bronze certification, a Japanese main capacitor, and comprehensive protection mechanisms. It comes equipped with a 120 mm FDB fan and is designed for continuous 24/7 operation.

Specifications:

• Power Output: 550 W
• Form Factor: ATX, Intel Version V2.52
• 80 PLUS Bronze certified
• Fan: 120 mm Fluid Dynamic Bearing (FDB)
• Fan Control: Starts at approx. 700 RPM, remains quiet up to ~70% load
• MTBF: 100,000 hours at full load
• Input Voltage: 100–240 V
• Input Current: 10–5 A
• Frequency: 50–60 Hz
• PFC: 0.99 (active Power Factor Correction)
• +12V Rail: 100% DC-to-DC, full output on +12V rail

Protection Features:

• OCP (Over Current Protection)
• OVP (Over Voltage Protection)
• UVP (Under Voltage Protection)
• OPP (Over Power Protection)
• SCP (Short Circuit Protection)
• OTP (Over Temperature Protection)
• NLO (No Load Operation)
• SIP (Surge & Inrush Protection)

Connections: (non-modular):

• 1x 24-pin ATX connector
• 1x 8-pin EPS 12V connector
• 5x SATA connectors
• 2x PCI-E connectors (6+2 pins)
• 2x IDE connectors
• 1x Floppy connector

Dimensions:

• 140 × 150 × 86 mm
