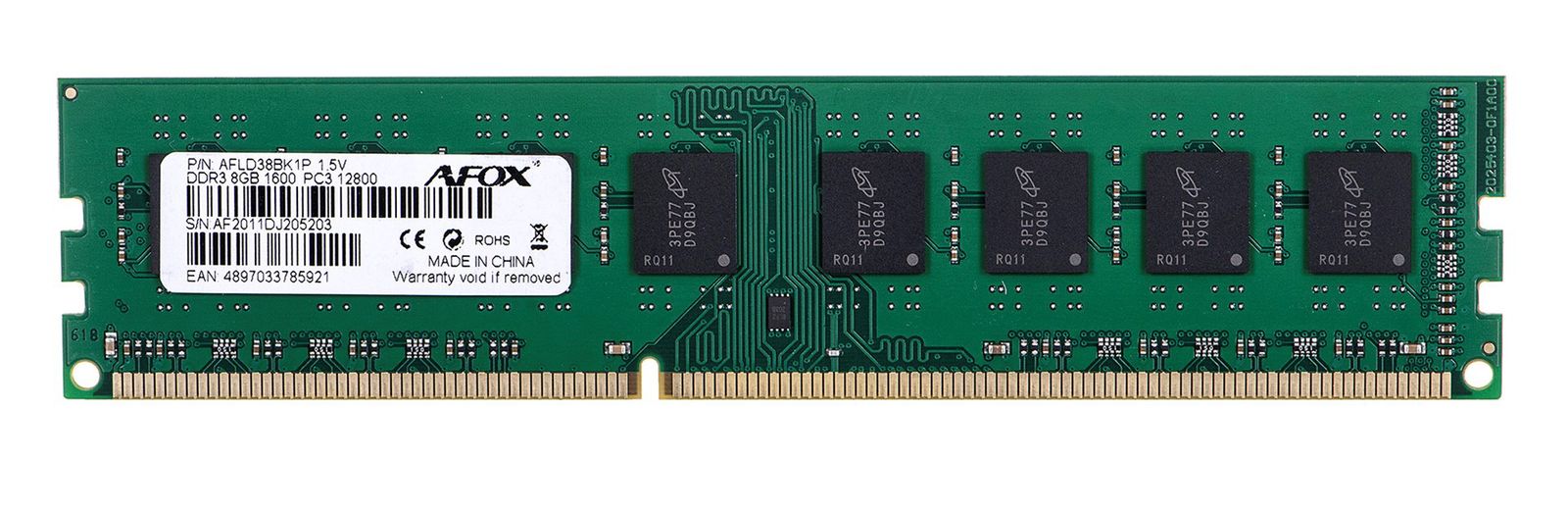

AFOX DDR3 8G 1600 UDIMM memory module 8 GB 1 x 8 GB 1600 MHz

Technical details
Sustainability certificates: RoHS
Certification: CE

Features
Memory clock speed: 1600 MHz
ECC: No
Memory form factor: 240-pin DIMM
Memory channels: Dual-channel
Component for: PC/Server
JEDEC standard: Yes
Row active time: 35 ns
Memory bandwidth (max): 12.8 GB/s
Memory layout (modules x size): 1 x 8 GB
Product colour: Green
Memory voltage: 1.5 V
Compatible chipsets: Intel® H61 Express, Intel® H81, Intel® H55 Express
Internal memory type: DDR3
Buffered memory type: Unregistered (unbuffered)
Internal memory: 8 GB
Row cycle time: 48.125 ns
Refresh row cycle time: 260 ns
CAS latency: 11

Operational conditions
Storage temperature (T-T): -55 - 100 °C
Operating temperature (T-T): 0 - 85 °C

Weight & dimensions
Height: 30 mm
Weight: 19 g
Width: 133 mm

Packaging data
Package width: 168 mm
Package weight: 37 g
Package height: 88 mm

Other features
Chips organisation: x8 FBGA DRAM
