Features
Input frequency: 40 - 70 Hz
Noise level: 55 dB
Output operation voltage (min): 220 V
Output power: 6000 W
Auto-restart: Yes
Output power capacity: 6 kVA
Input operation voltage (max): 275 V
Number of output phases: 1
Input operation voltage (min): 100 V
Efficiency: 94.4%
Waveform: Sine
UPS topology: Double-conversion (Online)
Emergency Power Off (EPO): Yes
Output frequency regulation: 50/60 Hz
Output operation voltage (max): 240 V
Surge protection: Yes
Audible alarm(s): Yes
Crest factor: 3:1
Surge energy rating: 480 J
Design
LED indicators: Status
Rack capacity: 4U
Product colour: Black
International Protection (IP) code: IP20
Form factor: Rackmount
Display type: LCD
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): 0 - 40 °C
Operating altitude: 0 - 3000 m
Storage temperature (T-T): -15 - 45 °C
Non-operating altitude: 0 - 15000 m
Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
Weight: 60 kg
Height: 174 mm
Depth: 719 mm
Width: 432 mm
Packaging data
Package weight: 67 kg
Package depth: 960 mm
Bracket: Yes
Package width: 610 mm
Warranty card: Yes
Software CD: Yes
Temperature sensor: Yes
Package height: 370 mm
Packaging content
Cables included: USB cable
Quick installation guide: Yes
Management card included: Yes
Rack mount kit: Yes
Certification: REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Certificates
Compliance certificates: RoHS
Ports & interfaces
AC outlets quantity: 10 AC outlet(s)
SmartConnect port: No
SmartSlot: Yes
Serial interface type: RJ-45
AC outlet types: C19 coupler, C13 coupler
Serial interface: Yes
Number of output IEC jumpers: 2
Power plug: Hardwire
USB port: Yes
Battery

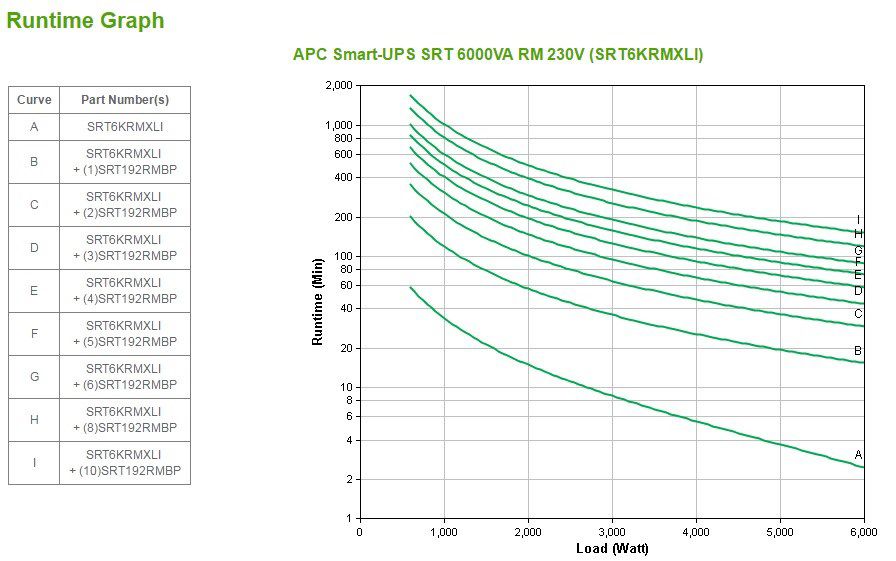

Typical backup time at half load: 8.7 min
Automatic battery test: Yes
Hot-swap battery: Yes
Typical backup time at full load: 2.5 min
Battery technology: Sealed Lead Acid (VRLA)
Battery life (max): 5 year(s)
Cold start: Yes
Battery recharge time: 1.5 h
Battery capacity: 902 VAh
Logistics data
Total carbon footprint (kg of CO2e): 13539.46
Products per pallet: 6 pc(s)
Harmonized System (HS) code: 85078000
Sustainability
Sustainability certificates: ENERGY STAR
