Features
Noise level: 55 dB
Audible alarm(s): Yes
Output power: 2700 W
Surge energy rating: 320 J
Input frequency: 50/60 Hz
Hold time (max): 8 ms
Output operation voltage (min): 220 V
Waveform: Sine
Efficiency: 98.9%
UPS topology: Line-Interactive

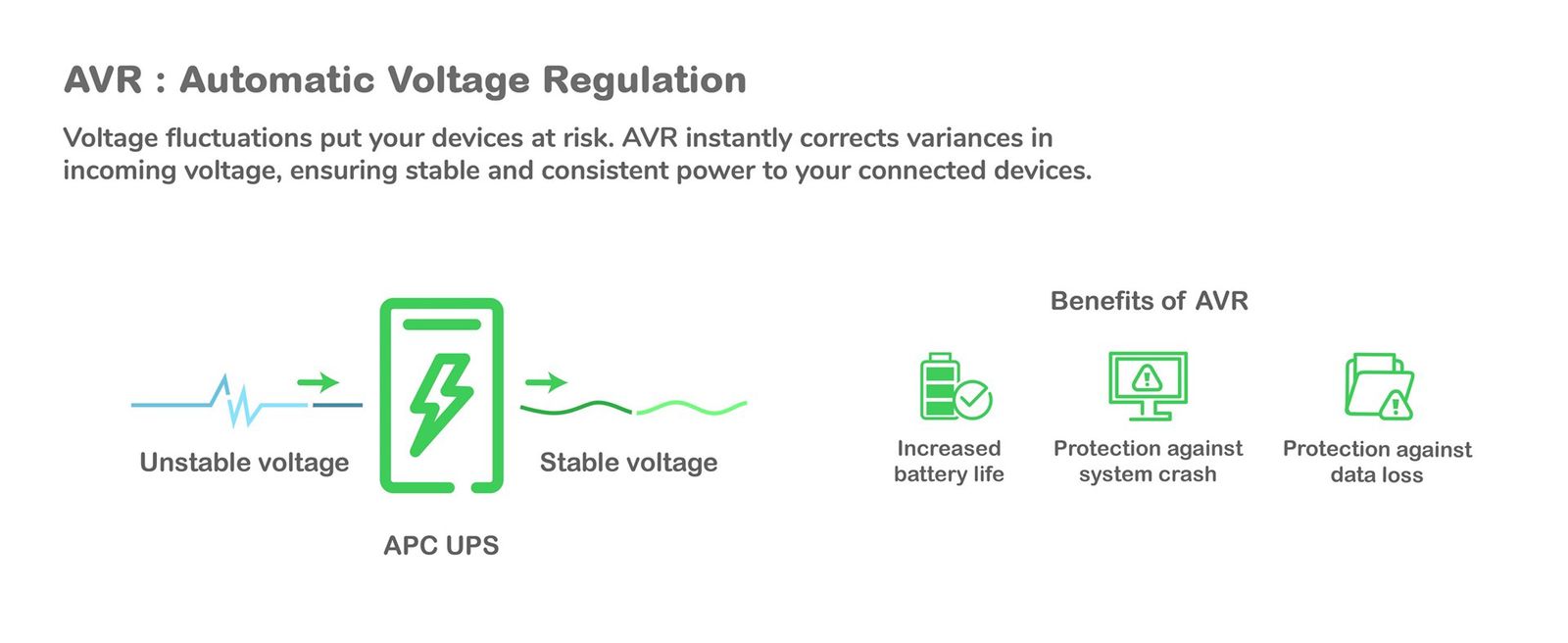

Automatic Voltage Regulation (AVR): Yes
Output power capacity: 3 kVA
Input operation voltage (min): 151 V
Input operation voltage (max): 302 V
Output operation voltage (max): 240 V
Hold time (min): 4 ms
Auto-restart: Yes
Design
LED indicators: Status
Product colour: Black
Cable length: 2 m
Rack capacity: 2U
Form factor: Rackmount
Display type: LCD
Operational conditions
Operating altitude: 0 - 3000 m
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -15 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Non-operating altitude: 0 - 15000 m
Weight & dimensions
Height: 86 mm
Width: 432 mm
Depth: 683 mm
Weight: 44.3 kg
Bundled software: Powershute Business Edition
Packaging data
Package height: 254 mm
Package weight: 51.7 kg
Package depth: 980 mm
Package width: 600 mm
Software CD: Yes
Packaging content
Cables included: RS-232, USB cable
Quick installation guide: Yes
Rack mount kit: Yes
Management card included: No
Certification: CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI
Certificates
Compliance certificates: RoHS
Ports & interfaces
Power plug: C20 coupler
USB port: Yes
Ethernet LAN (RJ-45) ports: 1
AC outlets quantity: 9 AC outlet(s)
AC outlet types: C19 coupler, C13 coupler
Serial interface type: RJ-45
Number of output IEC jumpers: 3
SmartConnect port: Yes
Serial interface: Yes
SmartSlot: Yes
Battery
Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 3.2 min
Typical backup time at half load: 11.5 min
Automatic battery test: Yes
Cold start: Yes
Hot-swap battery: Yes
Battery recharge time: 3 h
Battery life (max): 5 year(s)
Battery capacity: 547 VAh
Other features
Nominal input voltage: 230 V
Nominal output voltage: 230 V
Logistics data
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 2968.55
Sustainability
Sustainability certificates: Green Premium
