Features
Input frequency: 50/60 Hz
Audible alarm(s): Yes
Noise level: 40 dB
Output power: 500 W
Output power capacity: 0.75 kVA
Input operation voltage (min): 151 V
Auto-restart: Yes
UPS topology: Line-Interactive
Automatic Voltage Regulation (AVR): Yes
Efficiency: 98%
Output operation voltage (max): 240 V
Surge energy rating: 540 J
Output operation voltage (min): 220 V
Input operation voltage (max): 302 V
Waveform: Sine
Design
Form factor: Tower
Display type: LCD
Cable length: 1.83 m
Product colour: Black
LED indicators: Status
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating altitude: 0 - 3000 m
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -15 - 45 °C
Storage relative humidity (H-H): 0 - 95%
Non-operating altitude: 0 - 15000 m
Weight & dimensions
Depth: 358 mm
Width: 138 mm
Height: 157 mm
Weight: 13.2 kg
Bundled software: Powershute Serial Edition
Packaging data
Package height: 301 mm
Package width: 278 mm
Packaging content
Cables included: USB cable
Quick installation guide: Yes
Manual: Yes
Management card included: No
Certification: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
Certificates
Compliance certificates: RoHS

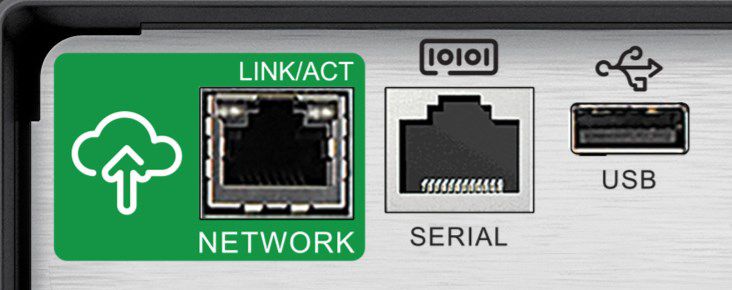

Ports & interfaces
Power plug: C14 coupler
USB port: Yes
AC outlet types: C13 coupler
Number of output IEC jumpers: 2
SmartSlot: Yes
AC outlets quantity: 6 AC outlet(s)
Ethernet LAN (RJ-45) ports: 1
SmartConnect port: Yes
Battery
Typical backup time at half load: 15.8 min
Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 4.6 min
Automatic battery test: Yes
Battery recharge time: 3 h
Battery life (max): 5 year(s)
Replacement battery cartridge: rbc48
Cold start: Yes
Hot-swap battery: Yes
Logistics data
Harmonized System (HS) code: 85078000
Total carbon footprint (kg of CO2e): 639.93
Safety warning
Warnings: Keep away from sources of fire and water., Do not disassemble the unit housing, there may be a risk of electric shock., Use the appliance in well-ventilated areas to avoid overheating.
Sustainability
Sustainability certificates: Green Premium
