Features
Noise level: 55 dB
Audible alarm(s): Yes
Web-based management: Yes
Output power: 1980 W
Waveform: Sine
Crest factor: 3:1
Input operation voltage (max): 275 V
Input operation voltage (min): 100 V
Output frequency: 50/60 Hz
Surge protection: Yes
Surge energy rating: 340 J
Output operation voltage (min): 220 V
Input frequency: 40/70 Hz
Efficiency: 92.2%
Output power capacity: 2.2 kVA
UPS topology: Double-conversion (Online)
Output operation voltage (max): 240 V
Auto-restart: Yes
Emergency Power Off (EPO): Yes
Design
Form factor: Rackmount/Tower
LED indicators: Yes
International Protection (IP) code: IP20
Cable length: 2.44 m
Product colour: Black

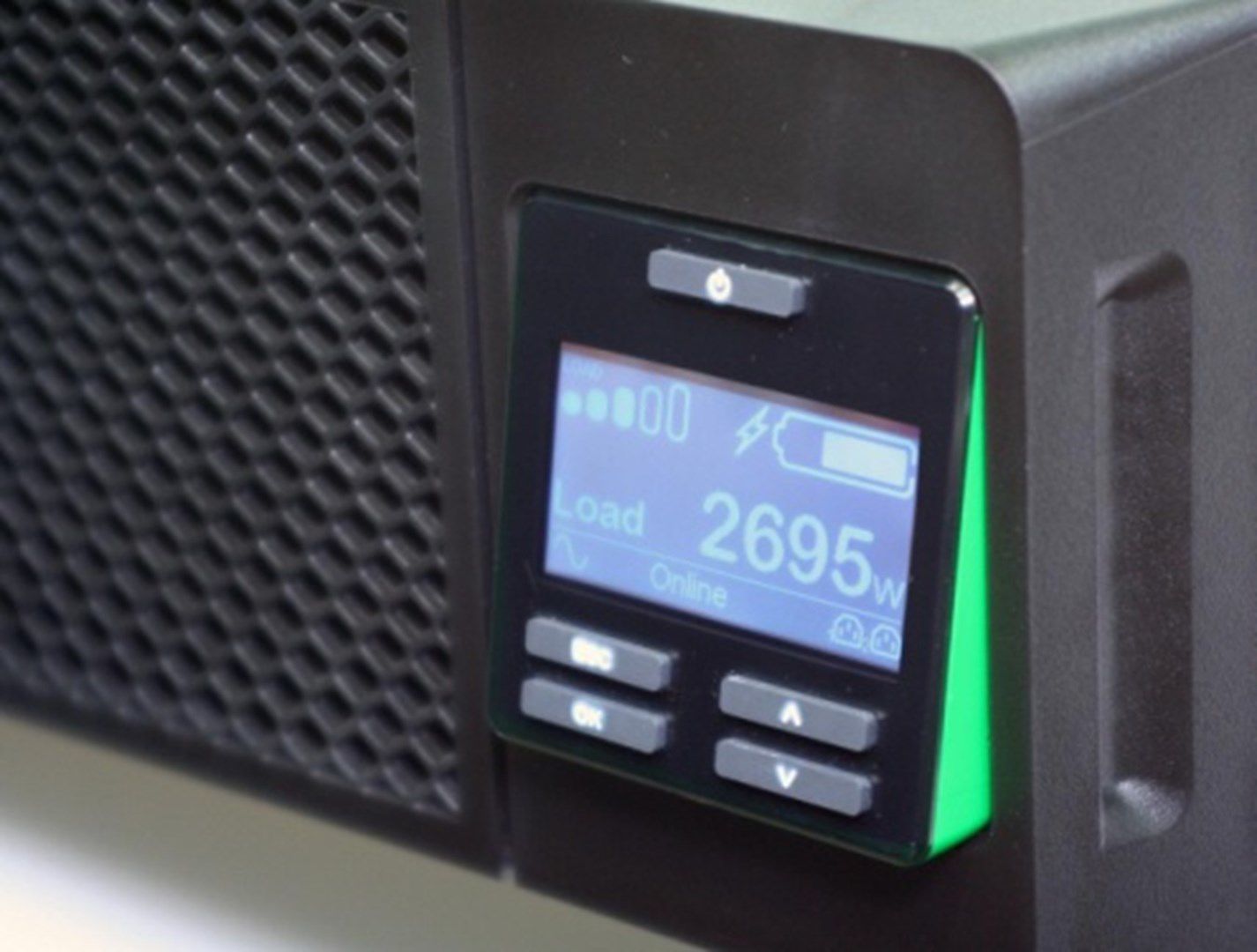

Display type: LCD
Operational conditions
Operating altitude: 0 - 3000 m
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -15 - 45 °C
Non-operating altitude: 0 - 15000 m
Weight & dimensions
Depth: 584 mm
Width: 85 mm
Height: 432 mm
Weight: 25 kg
Packaging data
Package width: 599 mm
Package height: 246 mm
Warranty card: Yes
Bracket: Yes
Packaging content
Cables included: USB cable
Quick installation guide: Yes
Management card included: No
Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Certificates
Compliance certificates: RoHS
Ports & interfaces
SmartConnect port: No
USB port: Yes
Power plug: C20 coupler
AC outlets quantity: 10 AC outlet(s)
Number of output IEC jumpers: 2
Serial interface: Yes
SmartSlot: Yes
AC outlet types: C13 coupler, C19 coupler
Serial interface type: RJ-45
Battery
Typical backup time at half load: 11.6 min
Battery recharge time: 3 h
Number of batteries supported: 1
Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at full load: 3.9 min
Hot-swap battery: Yes
Battery capacity: 367 VAh
Cold start: Yes
Battery life (max): 5 year(s)
Automatic battery test: Yes
Packaging content: Power cord
Removable support feet
Other features
Interface: SmartSlot
Nominal input voltage: 230 V
Nominal output voltage: 230 V
Logistics data
Total carbon footprint (kg of CO2e): 3634.43
Harmonized System (HS) code: 85078000
Safety warning
Warnings: Use the appliance in well-ventilated areas to avoid overheating., Keep away from sources of fire and water., Do not disassemble the unit housing, there may be a risk of electric shock.
Sustainability
Sustainability certificates: Green Premium, ENERGY STAR
