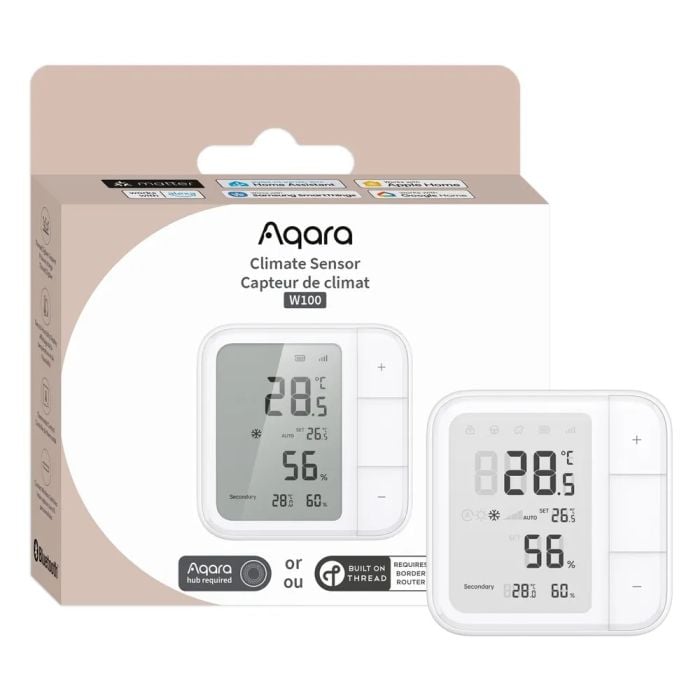

AQARA Climate Sensor W100

• Dual-protocol connection with Matter

• 3 buttons, 9 actions

• Precise sensor with display

• Connection to external sensor

• HVAC (heating, ventilation, and air conditioning) remote control

• Long battery life

Support for Thread/Zigbee
Compatible with Matter

Integrates with Apple Home, Alexa, Google Home, SmartThings, Home Assistant, and Homey. Easily expand your smart home with flexible integrations that are future-proof.

THREAD or ZIGBEE

Thread mode (default)

Suitable for:

• Users who want to connect the device directly to third-party systems

• Regular users

Support for hubs and ecosystems:

• No hub required

• (Direct connection to Matter controllers from other providers)

Features:
Basic Matter functions:

• Recognized as temperature sensor, humidity sensor, and wireless switching elements

• Supports corresponding triggers for automation

Zigbee mode

Suitable for:

• Aqara hub owners and Aqara Home users

• Advanced users who need more functionality

Support for hubs and ecosystems:

• Requires Aqara Zigbee hub

• (Connection to third-party systems via Aqara hub acting as a bridge)

Features:
Basic Matter features + exclusive Aqara Home features:

• Recognized as a temperature sensor, humidity sensor, and wireless switch elements; supports corresponding triggers for automation

• Pairing the Aqara temperature and humidity sensor with the Aqara thermostat

• Alarm and comfort settings

• Set sensor sampling interval

Note:
When the device is first added to Aqara Home, the user can select the operating mode.
By default, Thread mode is enabled for direct connection to third-party systems.

Up to 9 action settings

With three buttons, all of which support single, double, and long presses, the device can enable 9 flexible automations. This allows for deeper integration with Aqara or third-party apps and simplifies daily routines.

= 9 wireless switches

• single press

• Double press

• Long press

Precise sensor with display

3.4-inch LCD display, high measurement accuracy for temperature (±0.2°C) and humidity (±2% RH). Real-time monitoring and control for various indoor scenarios, ensuring a comfortable and energy-efficient living environment.

• Home comfort

• Indoor gardening

• Storage management

• Sensitive environments (e.g., children's rooms)

Additional climate measurements

With the "secondary" readings option, you can monitor two areas on one screen:

• Connect an Aqara sensor: get data from another indoor space.

• Without sensor connection: displays local temperature and humidity data.

*Only available when the device is connected to the Aqara hub in Zigbee mode.

Remote HVAC control made even easier

Connect to the Aqara Thermostat* or IR air conditioner via the Hub M3 for wireless HVAC control. Adjust the temperature, operating mode, and settings for greater comfort, energy efficiency, and convenience—without the need for physical access to the device.

* Currently, the device can only connect to the Aqara Radiator Thermostat E1 via the Aqara Home app in Zigbee mode. Updates will enable compatibility with additional Aqara thermostats when they are released.
** Only available through settings in the Aqara Home app in Zigbee mode.

Technical details:

• Product model: TH-S04D
• Wireless protocols: Thread/ Zigbee, Bluetooth
• Package dimensions: 86 × 86 × 13.65 mm
• Operating temperature: -20 °C to 60 °C
• Operating humidity: 0–98% relative humidity, non-condensing
• Package contents (Model TH-S04D):
  Climate sensor W100 × 1
  User manual × 1
  Declaration of conformity × 1
  Screw set × 1
  Wall bracket × 1
  Desktop stand × 1
