AQARA Door and Window Sensor P2 (DW-S02D)

Aqara Door and Window Sensor P2

The Aqara Door and Window Sensor P2 not only includes all the advanced automation and security features that Aqara* is known for, but also gives users the ability to connect it directly to third-party gateways, such as smart speakers, and enjoy all the benefits of the Matter smart home standard.

* Some features require an Aqara gateway (the Aqara M3 hub is expected to be released in Q4 2023), please check the description for more details.

Warnings we recommend you read before purchasing (June 20, 2023):

To use this device via the Thread protocol, you must have a "Thread border router" device. If you also want to use this sensor via the Matter standard, this Thread border router must also be a Matter Controller.
The list of nodes that function as both a Thread border router and a Matter Controller is shown in the image below.
AQARA does not yet offer a node that functions as both a Thread border router and a Matter Controller. Such a node is planned for the fourth quarter of 2023.
The device cannot currently be used with the AQARA Home app until a node from AQARA is specified.

Features:

Native Matter support*: With the advent of Matter, users no longer need to worry about different ecosystem platforms and technical protocols; they only need the Matter app and a Matter-compatible Thread Border Router. This means that connections between ecosystems and platforms become simpler and easier.
- Seamless integration
- Thread protocol
- Low energy consumption
- Support for multiple ecosystems (Apple, Google, Alexa, SmartThings, etc.)
Open/closed status monitoring: Stay informed and secure with real-time notifications on your smartphone whenever the sensor detects activity. You'll never miss a potential security threat and will have everything under control, whether you're at home or away.
- Local and remote alarms
- High-precision Hall sensor
- App view
- In-app notification
Local home automation: You can integrate the P2 door and window sensor with your smart home ecosystem to enable advanced automation, such as adjusting thermostat settings or activating security cameras when a door or window is opened. In addition, automations are performed locally without the cloud, which can protect user privacy and will work even if there is no internet connection.
- Home security
- Energy savings
- Valuable monitoring
- Light control
- Home door control
Increase efficiency with voice assistants: Aqara Door and Window Sensor P2 supports Apple Siri and Alexa. With these voice assistants, you can receive alerts about events such as door entries or ask if the door is open, so you can stay on top of things at home. This makes everyday tasks run smoothly and conveniently, allowing you to make the most of your time.
- Amazon Alexa support
- Apple Siri support
Easy installation and maintenance: With its compact and adhesive design, the P2 is easier to integrate into different home environments, and users can place it in different locations and scenarios. Thanks to the powerful CR123A** battery, users don't have to worry about frequent battery replacement or maintenance.
- Easy installation on any surface
- Compact design
- CR123A battery
- Infrequent battery replacement
Additional features in the Aqara Home app: Flexible settings via the Aqara Home app will be expanded with the launch of Hub M3 in the near future. Users can precisely set the sensor sensitivity in the range of 1 to 3 cm and adjust the idle time according to specific scenarios, and use the programmable button to trigger various smart home automations. In addition, the Tamper Alarm feature will immediately send alerts to your smartphone if the sensor is tampered with.
- Unauthorized tampering alert
- 1-3 cm adjustable sensitivity
- Distance setting
- Sleep time setting

Automation:

1. No more lights suddenly turning off when you are in the toilet.
IF the contact sensor was open (i.e., the toilet lid was open, meaning the toilet was in use)
THEN Turn off the automation "Turn off the light if no movement has been detected for 2 minutes"
Devices -> Door and window sensor P2 + boundary router* + motion sensor

2. Detect the status of your existing air conditioner
IF the contact sensor was open (i.e., the AC was turned on)
THEN do not trigger your IR controller to start the automation "Turn on AC".
Devices -> Door and window sensor P2 + boundary router* + IR controller

3. Save energy when a door or window is open
IF a door or window was open
THEN turn off the thermostat to reduce energy consumption and your carbon footprint
Devices -> P2 Door and Window Sensor + Boundary Router* + Thermostat

4. Warning system: the P2 door and window sensor is part of the Aqara Home alarm system: automatically activate the system using the presence sensor and you will be notified immediately if someone opens a door, drawer, or window while you are away from home
Devices -> P2 door and window sensor only + *M3

5. Indoor door installation: it must be possible to drill a hole and install the P2 door and window sensor inside the door so that it is invisible. A 23 mm drill bit is required.
Devices -> Door and window sensor P2 + *M3 only, 3 cm may be required

Technical data:

Product name: Aqara door and window sensor P2
Battery: CR123A
Model: DW-S02D
Wireless protocols: Thread, BLE 5.0
Bluetooth operating frequency: 2402-2480MHz
Maximum Bluetooth output power: ≤13dBm
Thread operating frequency: 2405-2480MHz
Maximum Thread output power: ≤13dBm
Dimensions: 77 × 22 × 22 mm (main sensor unit), 36 × 11.5 × 7.3 mm (additional sensor unit)
Operating temperature: -10°C ~ 50°C (14°F ~ 122°F)
Operating humidity: 0 ~ 95% RH, non-condensing

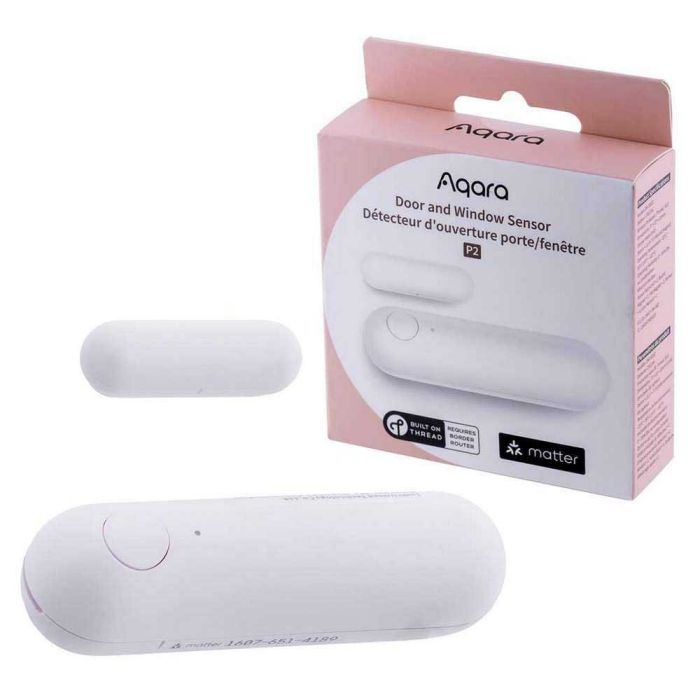

What's in the box Sensor: main unit × 1, round magnet × 1, flat magnet × 2, sticker × 4, user manual × 1
