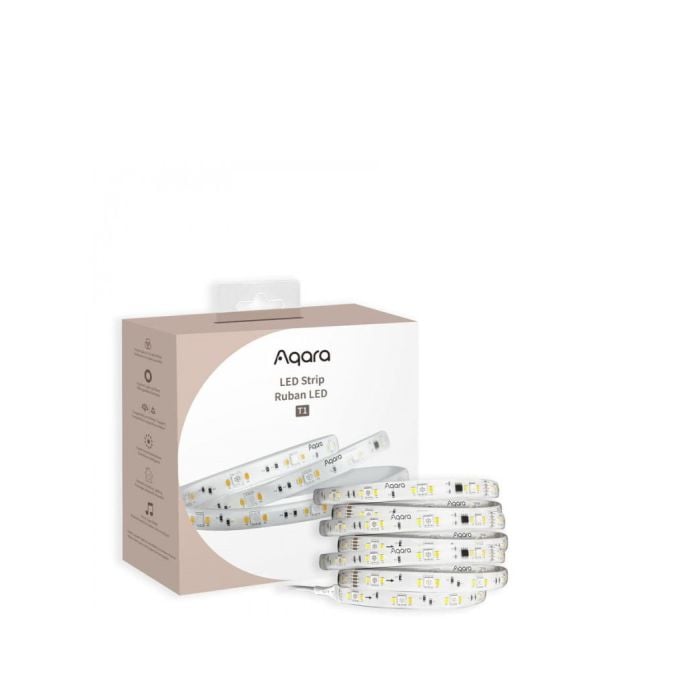

AQARA LED Strip T1 (RLS-K01D) - Zigbee 3.0 RGB+CCT LED Strip

Osnovne informacije

Aqara LED Strip T1 is a multi-functional light strip that not only provides high-quality lighting with bright white colors, but can also display multiple colors at the same time and be used in smart home automation with other Aqara devices or other devices.

16 million colors and adjustable white tones
RGBIC with gradient effects
Adjustable length
Zigbee 3.0 with repeater function
Zigbee support issue

Features

Compatibility and important* support: T1 is compatible with various common ecosystems and offers users multiple ways to customize and future-proof their smart homes. When choosing their favorite products, smart home users don't have to worry about different protocols or different platforms. T1 can support Matter via a hub, which will solve most interoperability and connectivity issues.

Matter
Apple Home
Google Home
Amazon Alexa
Yandex
Marusja
IFTTT

16 million colors and adjustable whites: almost unlimited color options. You can enjoy brighter white light with a temperature range from cool to warm, or lose yourself in a world of vibrant shades. In the colorful ball mode, you can choose your favorite bright color or create a scene that changes colors to achieve the perfect mood.

RGB+CCT
Adjustable white, color temperature: 2700K to 6500K
RGB: 16M
Brightness: 1200/2m

RGBIC** with blending effects: each of the 10 segments of the strip can be configured separately: supports different colors, dimming, effects, or even the use of one strip for different parts of the room.
20 cm RGBIC segments
Addressable with gradient effects
Home automation and scenes: the Aqara Home app offers rich pages with operations and settings. You can choose between a fixed combination of color cards or a color of your choice. Support for custom scene names, brightness, and selection of dynamic effects and dynamic speeds.
Local music synchronization
Custom brightness
Fixed color combination and custom color available
Support for dynamic effect selection
Custom dynamic speed
Smart home automation
Adjustable length and easy installation: Suitable for DIY projects as it can be cut*** (into 20 cm / 7.9" segments), extendable up to 10 meters, and reconnectable. It also has an IP44 rating, meaning it is dust-proof and can also be used outdoors.

Supports a maximum width of up to 10 m
Can be cut: yes (20 cm)
Stick to any smooth surface
IP44

Zigbee 3.0 with repeater function: Compared to competitors, Wi-Fi Strip T1 does not overload your smart home network: on the contrary, it acts as a network repeater and makes your Zigbee network more reliable. In addition, it has much lower power consumption when idle, making it more environmentally and budget-friendly.

Turn off memory
repeaters
Lower power consumption in standby mode

The T1 has a built-in sound sensor that can follow the rhythm of the music to change the rhythm of the light in a timely manner, and you can choose to set different color cards and colors.

*Requires an Aqara hub compatible with Matter.
**Please note: RGBIC effects are only available for colored (RGB) scenes, not for adjustable white.
***When the strip is cut, 5-pin connectors and 5-wire wires will be needed to reconnect them.
**** Please note: IP44 refers only to the LED strip itself; the manual controller and power supply are not weatherproof and must be installed indoors.

Automation:

1. Status light for the alert and automation system.

IF Camera Hub G3 detects an unknown face when you are not at home
THEN the T1 LED strip starts flashing red, the alarm system triggers a siren and notifies you remotely

The LED strip T1 can indicate that the alarm system is activated with a steady red light that flashes intensely in emergencies, such as when an unknown face is detected while you are away from home, or, for example, to indicate that your laundry is finished.

Devices LED strip T1 + Camera Hub G3 + Smart Plug

2. Circadian lighting using dynamic scenes Aqara Home

IF Sunrise
THEN trigger a device scene that will slowly adjust the temperature of the strip from warm to cool

If you don't want to use HomeKit's adaptive lighting, you can easily configure circadian lighting through Aqara Home's dynamic scenes.

Devices LED Strip T1 + Hub

3. Set up a dynamic welcome on the staircase!

IF presence is detected near the stairs
THEN turn on the segments of the strip one by one

Thanks to addressable LED technology, the Strip T1 can be divided into segments and turned on one by one, allowing you to create smart staircase lighting scenes. For example, the light strip will start to illuminate each step of the staircase one by one.

Devices LED strip T1 + Hub + Presence sensor FP2

4. Countdown scene that can be used in automation!

IF the door is open while the warning system is on
THEN the LED strip will start "counting down"

Simply use the delay feature of your Aqara home alarm system together with the countdown (for example, 10 seconds) and you will know how much time you have left to turn off the alarm system.

*The scene must be set separately

Devices LED strip T1 + Hub + Sensors

Technical data:

Product name: Aqara LED Strip T1
Model: RLS-K01D
Rated power: 5 W/m (30 pieces × 5050 / 0.2 W / RGB, 60 pieces × 2835 0.2 W)
Color temperature: RGB + 2700K + 6500K
Input power (power supply): 100-240V~50/60Hz 1.2A max.
Output power (power supply): 24V DC 1.5 A
Input power (LED strip): 24VDC ≤0.25A/m
Wireless protocol: Zigbee
Strip dimensions: 2000 × 12 × 2.8 mm (LED strip)
Operating temperature: -10°C ~ 40°C (14°F ~ 104°F)
Operating humidity: 0 ~ 95% RH, non-condensing
Zigbee operating frequency: 2405-2475MHz
Maximum Zigbee output power: ≤13dBm
What's in the box: light strip (2 m) × 1, power supply × 1, controller × 1, user manual × 1
