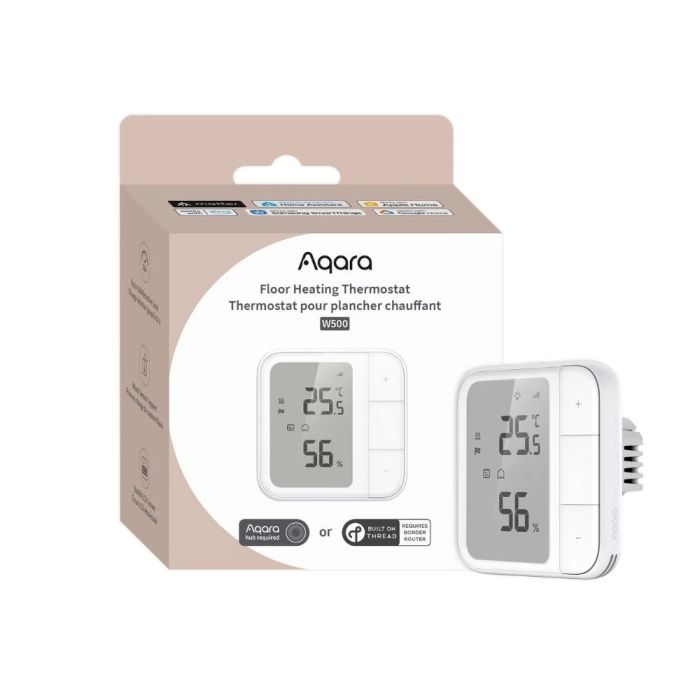

AQARA W500 Floor Heating Thermostat

Aqara W500 smart thermostat for underfloor heating
The Aqara W500 is a high-end smart thermostat designed for precise and energy-efficient control of electric or hydraulic underfloor heating systems. It is equipped with built-in temperature and humidity sensors and an included floor NTC sensor, which allows you to control the temperature both in the room and on the floor. With precise control and a smart schedule, you can achieve significant energy savings while increasing comfort.

Easy installation and operation
The thermostat is easy to install in a standard EU wall-mounted flush-mounted box. The status is always clearly displayed on the built-in screen, and physical buttons allow for easy control. One of the biggest advantages of the Aqara W500 is the variety of control methods: via app, voice, timer, or manually. It also supports remote access and energy consumption monitoring.

Multi-protocol support
The thermostat supports Zigbee and Thread protocols and is compatible with the Matter standard. This allows for seamless operation with various smart home platforms such as Apple Home, Google Home, Amazon Alexa, and Home Assistant—the perfect choice for anyone looking for a versatile solution for smart heating control.

Power supply: 220–240 V AC, 50/60 Hz

Maximum load: 16 A / 3600 W (for resistive load)

Number of circuits: 1

Consumption measurement: Yes

Automatic shutdown / time switching: Yes

Dry contact: No

NO/NC support: No

Installation: Standard EU flush-mounted box

Dimensions: 86 × 86 × 45 mm

Color: White

Built-in display: Yes, with adjustable brightness

NTC sensor: Included

Operating temperature: 0 °C to 40 °C

Operating humidity: 0% – 90% RH (non-condensing)
