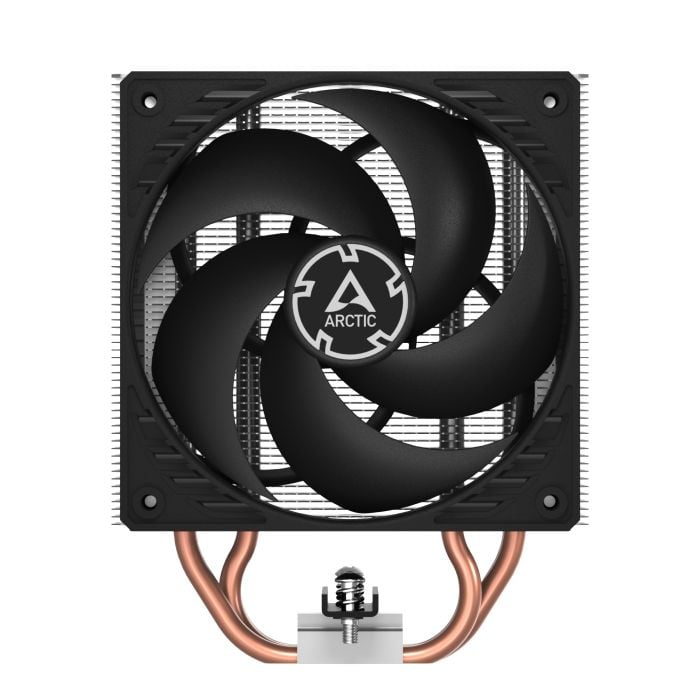

ARCTIC Freezer 36, cooler for INTEL /AMD desktop processors

High-quality workmanship with aluminum top panel
With its push-pull configuration, the Freezer 36 not only impresses with its efficient cooling performance, but also with its design. The soldered ends of the heat pipes are concealed by a screwed-on aluminum cover, allowing it to blend seamlessly into any computer setup and emphasizing its performance and appearance.

Improved fan mounting
Thanks to an innovative mounting system, the fans in the cabinet can be easily installed in the cooler using a click system. This mounting method eliminates the need for fan clips, making it easy to install the cooler or replace fans, even if the cooler is already installed. The Freezer 36 is therefore compatible with most 120 mm fans.

High-quality bearing
Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is reduced to a minimum and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced. This results in less heat generation, less bearing noise, and a significantly longer fan life.

Optimized cooler
The cooler fins are open on the side, allowing the pull-type fan to draw additional cool air from the computer case through the cooler. This side-flow design enables even more efficient ventilation.

P-fans with high static pressure
ARCTIC relies on proven P-fans, which are known for their powerful performance. The P-series is particularly suitable for use on coolers and radiators. Due to the dense ribbed structure of the cooling fins, the fans used achieve significantly better performance than fans designed for airflow due to high static pressure.

Quality you can rely on
To ensure the long service life of our products, we conduct long-term tests under various, sometimes very unfavorable conditions. This allows us to learn how we can continuously improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only exceptional in terms of quality, but also in terms of durability.

Compatibility:
Intel: LGA1851 | LGA1700
AMD: AM5 | AM4
PI | NNPI: 250 | 234
TIM: MX-6 (0.8 g)
Operating ambient temperature: 0—40 °C
Dimensions: 104 (L) x 126 (W) x 159 (H) mm
Weight: 890 g
Cooler:
Heat pipes: 4 x 6 mm Ø, copper
Fin array: 59 x 0.4 mm, aluminum
Fans:
Fan: 2x P12 PWM PST
Speed: 200 - 1800 rpm, PWM control (0 rpm below 5% PWM)
Bearing: fluid dynamic bearing
Current | Voltage: 0.10 A | 12 V DC
Cable length: 200 mm + 80 mm splitter cable
Connector: 4-pin PWM connector + 4-pin plug
