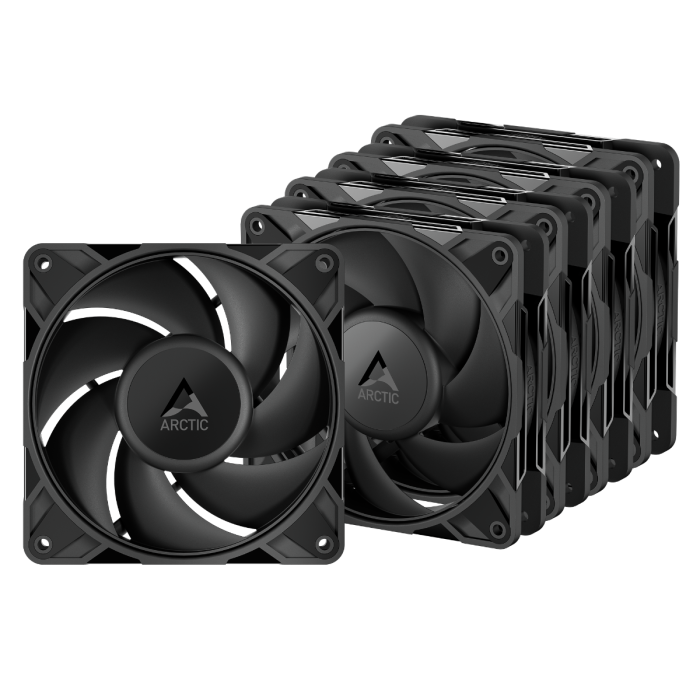

ARCTIC P12 PRO PST 120mm 4-pin fan 5pkt

maximum capacity Redesigned fan blade design for optimal balance between performance and smooth operation
Optimized bearing and shaft design (FDB)
Hydrodynamic bearing combined with extended shaft for quieter operation by improving pressure distribution and reducing vibration
Automated balancing
Automated measurement and balancing process ensures exceptional accuracy and smooth operation with balanced mass application with exceptional precision
SOTA microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity
More power – less noise
The fan delivers higher performance at low speeds with greater airflow and static pressure at only 25 dB(A) – ideal for quiet and powerful cooling
Minimal slot dimensions for maximum efficiency Enables greater static pressure and maximum airflow efficiency
PST – Synchronized fan control based on PWM
Additional PWM connector allows sequential synchronization of multiple fans with a single connector

Operating ambient temperature 0–40 °C
Dimensions 120 (L) x 120 (W) x 25 (H) mm
Net weight 185 g
Fan speed 600–3000 rpm, PWM controlled 0 rpm below 5% PWM
Airflow 77 cfm | 131 m³/h
Static pressure 6.9 mmH2O
Fan bearing Fluid-dynamic bearing
Typical voltage 12 V DC
Start-up voltage 3.3 V DC
Current 0.33 A
Cable length 400 mm + 80 mm cable for daisy chain connection
Connector 4-pin fan plug + 4-pin socket

Manufacturer's official website: https://www.arctic.de/en/P12-Pro-PST-5-Pack/ACFAN00307A
