Processor
Compatible processor series: AMD Ryzen™ 5, AMD Ryzen 9 7th Gen, AMD Ryzen™ 7
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Processor socket: Socket AM5
Features
Motherboard form factor: ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Audio chip: Realtek ALC4082
Motherboard chipset: AMD B650
Motherboard chipset family: AMD
Memory
Memory slots type: DIMM
Maximum internal memory: 192 GB
Supported memory clock speeds: 7200
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of memory slots: 4
Memory channels: Dual-channel
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Network
Bluetooth: Yes
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11g, 802.11a
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
LAN controller: Dragon RTL8125BG
Ethernet LAN: Yes
Internal I/O
Number of SATA III connectors: 2
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
RGB LED pin header: Yes
Thunderbolt headers: 1
Front panel audio connector: Yes
TPM connector: Yes
USB 2.0 connectors: 2
BIOS
BIOS type: UEFI AMI
Storage controllers
RAID levels: 10, 0, 1
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

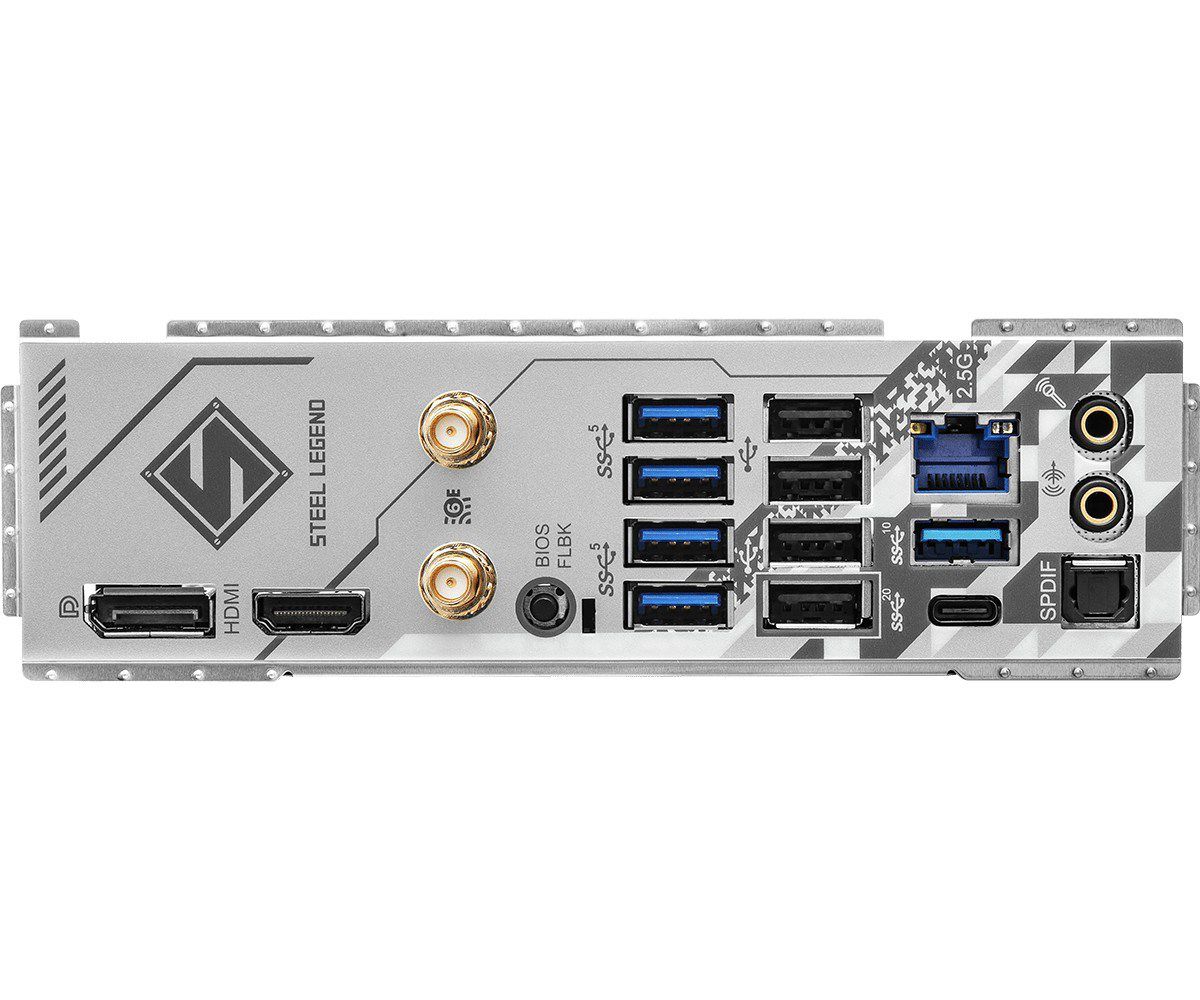

Rear panel I/O ports
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
Number of antenna connectors: 2
DisplayPort version: 1.4
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
