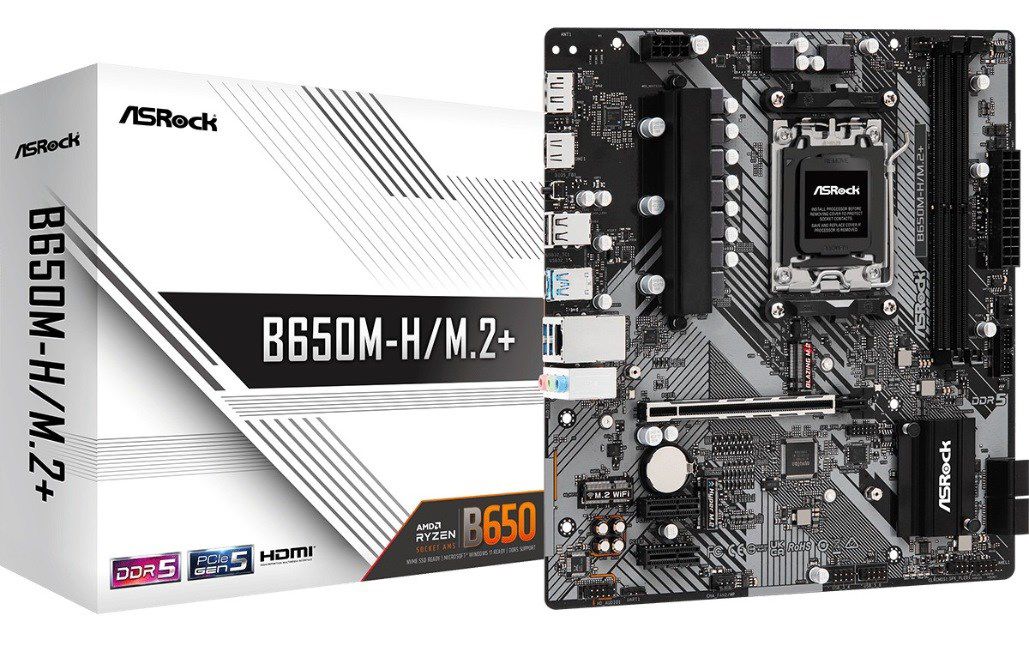

ASRock B650M-H /M.2+ motherboard

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen™ 7
Processor socket: Socket AM5

Features
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: AMD B650

Memory
Number of memory slots: 2
Memory slots type: DIMM
Maximum internal memory: 96 GB
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM

Weight & dimensions
Width: 244 mm
Depth: 226 mm

Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek 8111H
Wi-Fi: No

Internal I/O
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
TPM connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
Front panel audio connector: Yes

BIOS
BIOS type: UEFI AMI

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 10, 0, 1
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Back-to-BIOS button: Yes
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
