Processor
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen, AMD Ryzen 5 7th Gen
Processor manufacturer: AMD
Processor socket: Socket AM5
Graphics
Maximum resolution: 3840 x 2160 pixels
HDCP: Yes
Parallel processing technology support: CrossFire
Certification: FCC, CE, ErP/EuP
Features
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Product colour: Black
Audio chip: Realtek ALC897
Motherboard chipset: AMD B650
Memory
Supported memory clock speed (max): 7200 MHz
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speeds: 4400, 5600, 7200, 5200, 6600, 4800, 6400, 7000, 6800, 6000, 6200
Maximum internal memory: 192 GB
Unbuffered memory: Yes
Weight & dimensions
Depth: 244 mm
Width: 244 mm
Network
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Dragon RTL8125BG
Internal I/O
Front panel audio connector: Yes
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
TPM connector: Yes
EPS power connector (8-pin): Yes
Thunderbolt headers: 1
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
Number of chassis fan connectors: 3
Number of SATA III connectors: 4
RGB LED pin header: Yes
12V power connector: Yes
BIOS
BIOS type: UEFI AMI
Packaging content
Cables included: SATA
Screws included: Yes
Storage controllers
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels: 0, 10, 1
RAID support: Yes
Number of storage drives supported: 7
Supported storage drive types: HDD & SSD

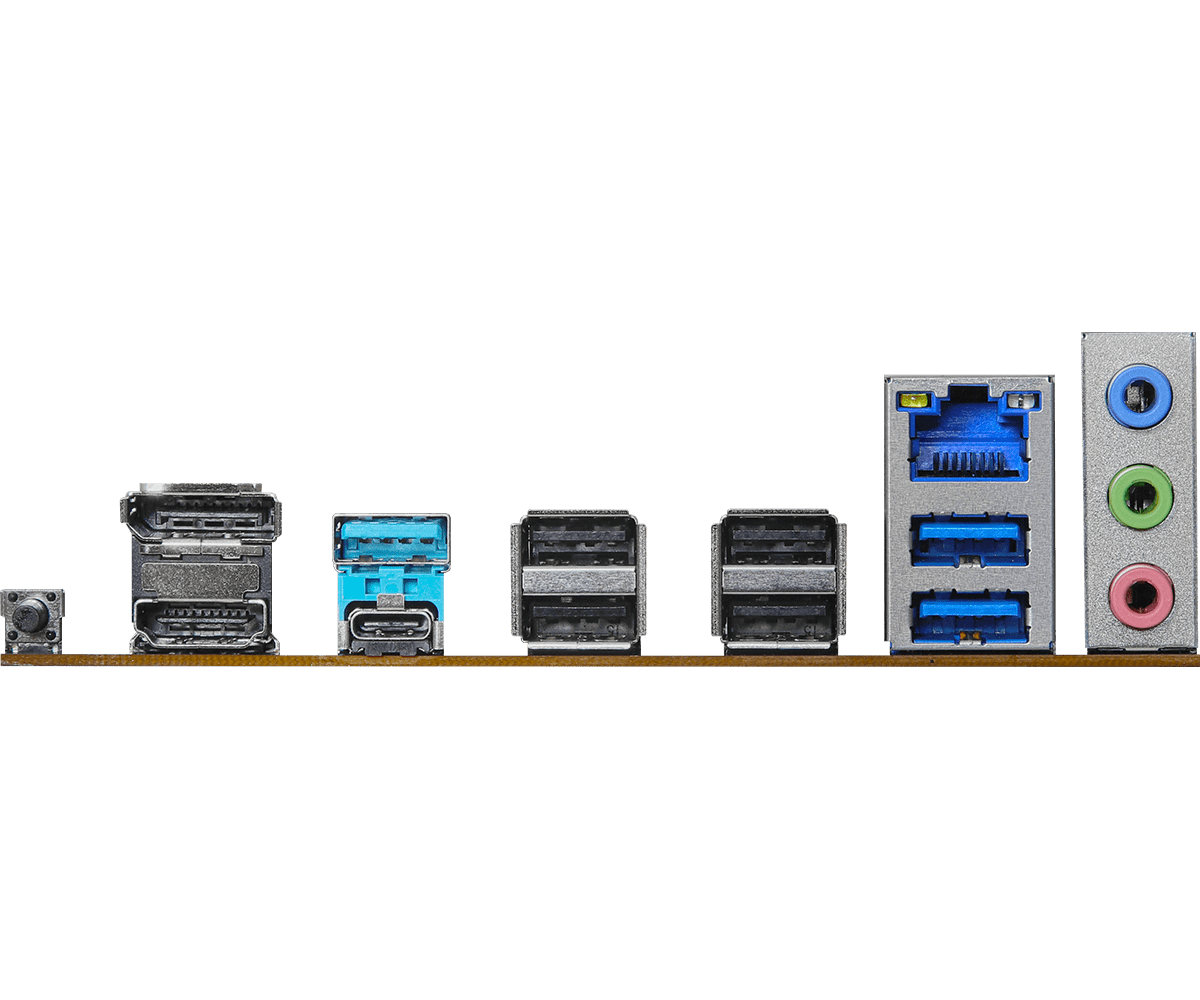

Rear panel I/O ports
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPorts quantity: 1
HDMI version: 2.1
Microphone in: Yes
Headphone outputs: 3
Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
