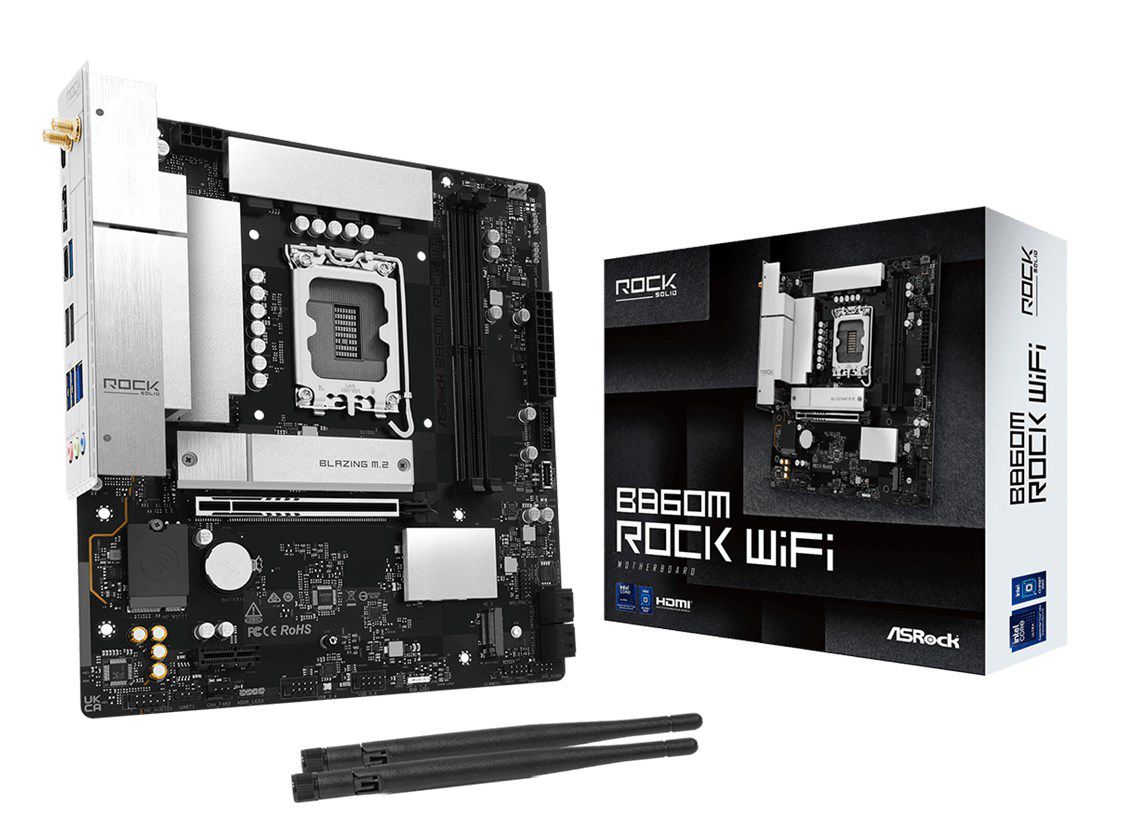

Features Motherboard form factor: micro ATX Motherboard chipset family: Intel Audio chip: Realtek ALC897 Motherboard chipset: Intel B860 Audio output channels: 7.1 channels Windows operating systems supported: Windows 11 x64 Component for: PC
Memory Maximum internal memory: 128 GB Unbuffered memory: Yes ECC сompatibility: Non-ECC Memory channels: Dual-channel Memory slots type: DIMM Number of memory slots: 2 Supported memory types: DDR5-SDRAM
Weight & dimensions Width: 244 mm Depth: 218 mm
Network LAN controller: Dragon RTL8125AG Bluetooth: Yes Bluetooth version: 5.3 Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: Yes Wi-Fi standards: 802.11g, 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac) Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Internal I/O Number of SATA III connectors: 4 Front panel audio connector: Yes ATX Power connector (24-pin): Yes USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 USB 2.0 connectors: 2 Number of RGB LED pin headers: 1 Number of CPU fan connectors: 1 RGB LED pin header: Yes Number of chassis fan connectors: 2 TPM connector: Yes CPU fan connector: Yes
BIOS BIOS memory size: 256 Mbit BIOS type: UEFI AMI
Packaging content Cables included: SATA Antenna included: Yes
Storage controllers Supported storage drive interfaces: M.2, SATA III
Rear panel I/O ports DisplayPorts quantity: 1 DisplayPort version: 1.4 USB 2.0 ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 USB 3.2 Gen 2x2 Type-C ports quantity: 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3 HDMI ports quantity: 1 Line-in: Yes Microphone in: Yes
