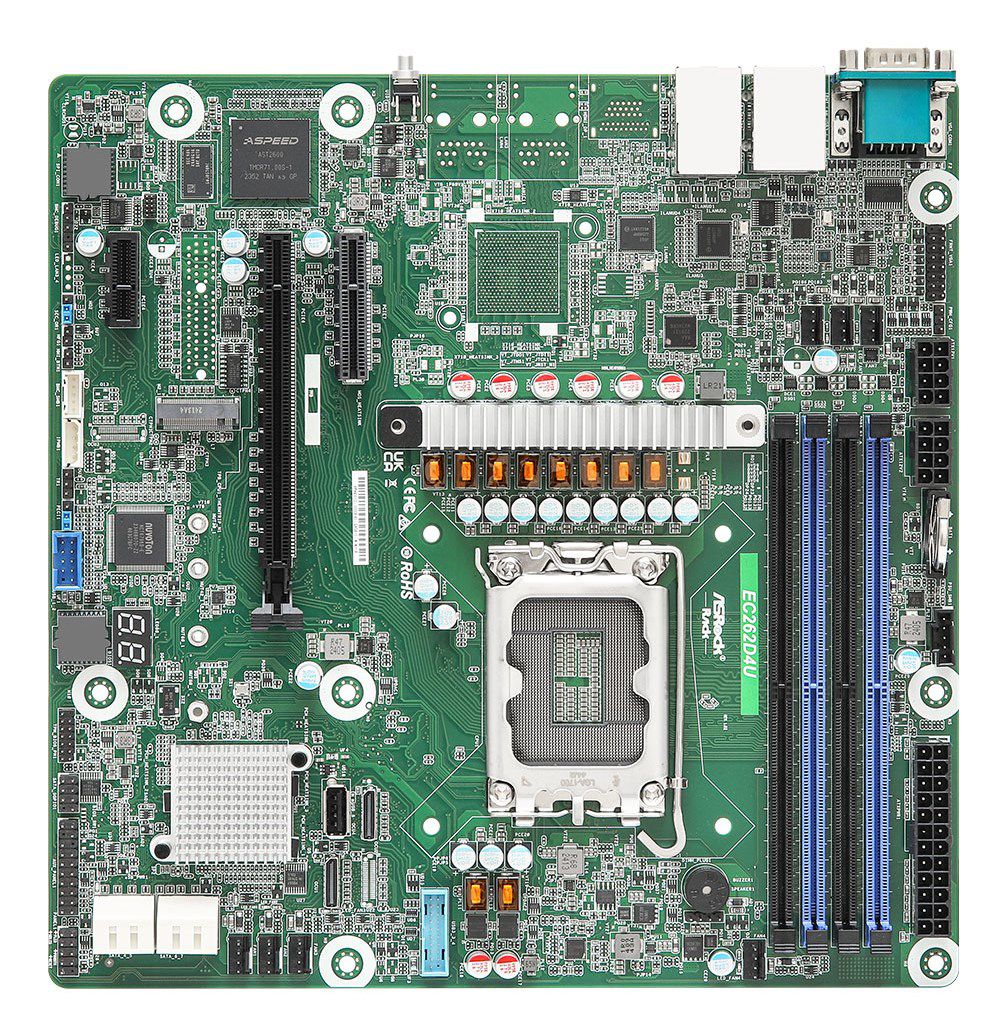

Asrock EC262D4U motherboard Intel C262 LGA 1700 micro ATX

Processor
Processor manufacturer: Intel
Compatible processor series: Intel® Xeon®
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Compatible operating systems: Microsoft® Windows: - Windows® Server 2022 - Azure Stack HCI Linux: - RHEL 8.5 - SLES 15 SP3 - Ubuntu 21.04 LTS Hypervisor: - VMware ESXi 8.0 u1 - Linux KVM (Linux OSes) - Hyper-V (Windows® Server)

Features
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel C262
PC health monitoring: Fan, CPU

Memory
ECC сompatibility: ECC
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory voltage: 1.1 V

Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Wi-Fi: No
Ethernet LAN: Yes

Internal I/O
Number of SATA III connectors: 8
Peripheral (Molex) power connectors (4-pin): 1
USB 2.0 connectors: 3
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
TPM connector: Yes

BIOS
BIOS type: AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 2.8

Storage controllers
RAID support: Yes
RAID levels: 0, 1, 10, 5
Supported storage drive interfaces: M.2

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
IPMI LAN (RJ-45) port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
