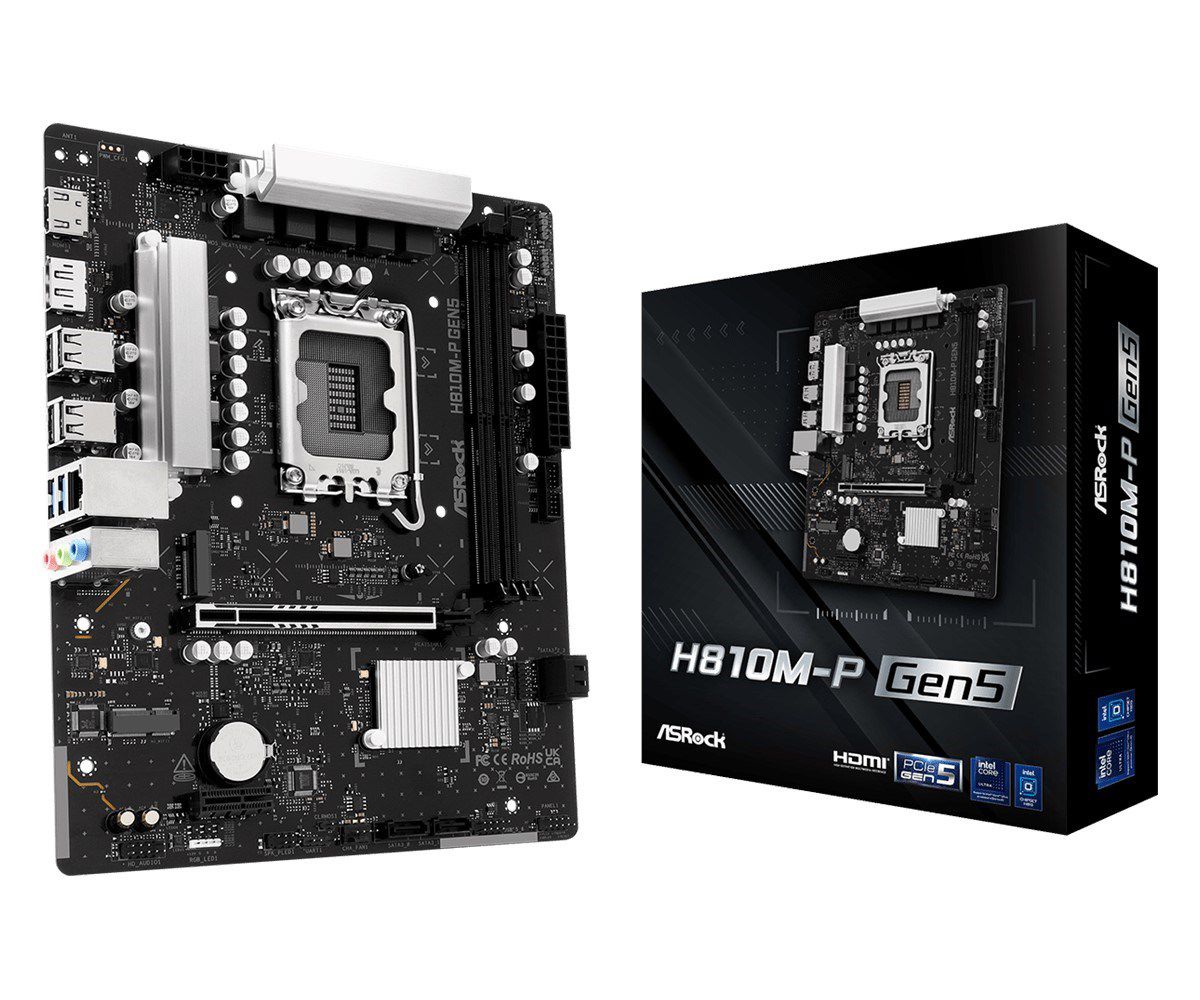

Asrock H810M-P GEN5 motherboard

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)
Processor manufacturer: Intel
Supported processor sockets: LGA 1851

Graphics
HDCP: Yes
HDCP version: 2.3
Maximum resolution: 7680 x 4320 pixels

Features
Audio chip: Realtek ALC897
Motherboard chipset: Intel H810
Power source type: ATX
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64
Motherboard form factor: micro ATX

Memory
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Number of memory slots: 2
ECC сompatibility: Non-ECC
Memory channels: Dual-channel
Supported memory clock speed (max): 6400 MHz
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM

Weight & dimensions
Width: 244 mm
Depth: 193 mm

Network
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
USB 2.0 connectors: 2
Number of EPS power connectors (8-pin): 1
Number of chassis fan connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
TPM connector: Yes
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
RGB LED pin header: Yes
Number of CPU fan connectors: 1

BIOS
BIOS type: UEFI AMI

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 5
Number of HDDs supported: 4

Rear panel I/O ports
Line-in: No
USB 2.0 ports quantity: 4
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
Headphone outputs: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots
PCI Express x1 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
