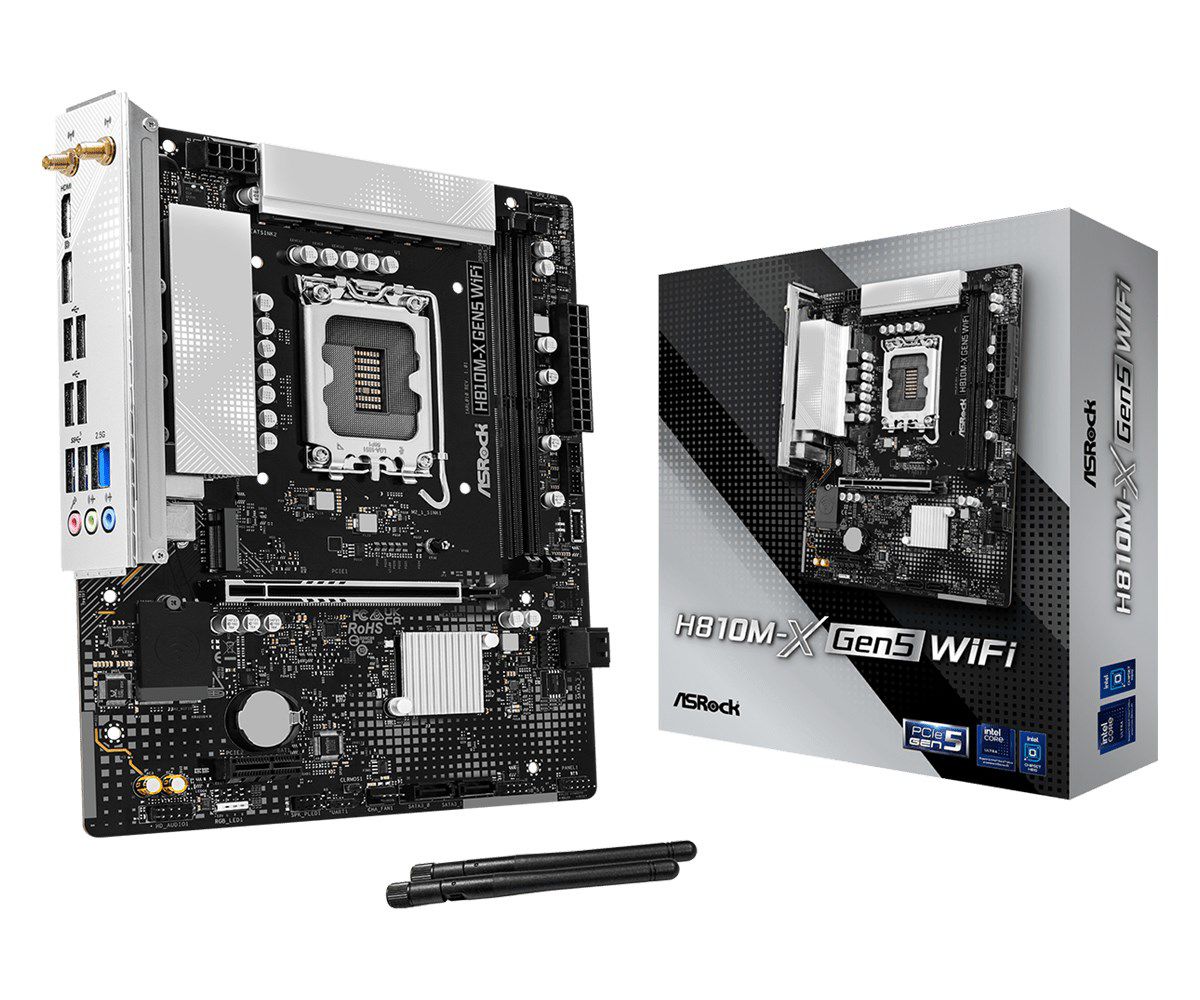

Asrock H810M-X Gen5 WiFi Intel H810 LGA 1851 (Socket V1) micro ATX

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)

Graphics
HDCP version: 2.3
HDCP: Yes

Features
Windows operating systems supported: Windows 11 x64
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Motherboard chipset: Intel H810
Audio chip: Realtek ALC897
Component for: PC
Motherboard chipset family: Intel

Memory
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Maximum internal memory: 128 GB
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Memory slots type: DIMM
Unbuffered memory: Yes

Weight & dimensions
Width: 244 mm
Depth: 193 mm

Network
LAN controller: Dragon RTL8125BG
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), 802.11g
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes
Ethernet LAN: Yes
Bluetooth version: 5.3

Internal I/O
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
TPM connector: Yes
Number of chassis fan connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of CPU fan connectors: 1
USB 2.0 connectors: 1

BIOS
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI

Packaging content
Cables included: SATA
Antenna included: Yes

Storage controllers
Supported storage drive interfaces: SATA III, M.2

Rear panel I/O ports
DisplayPorts quantity: 1
Microphone in: Yes
Line-in: Yes
DisplayPort version: 1.4
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
