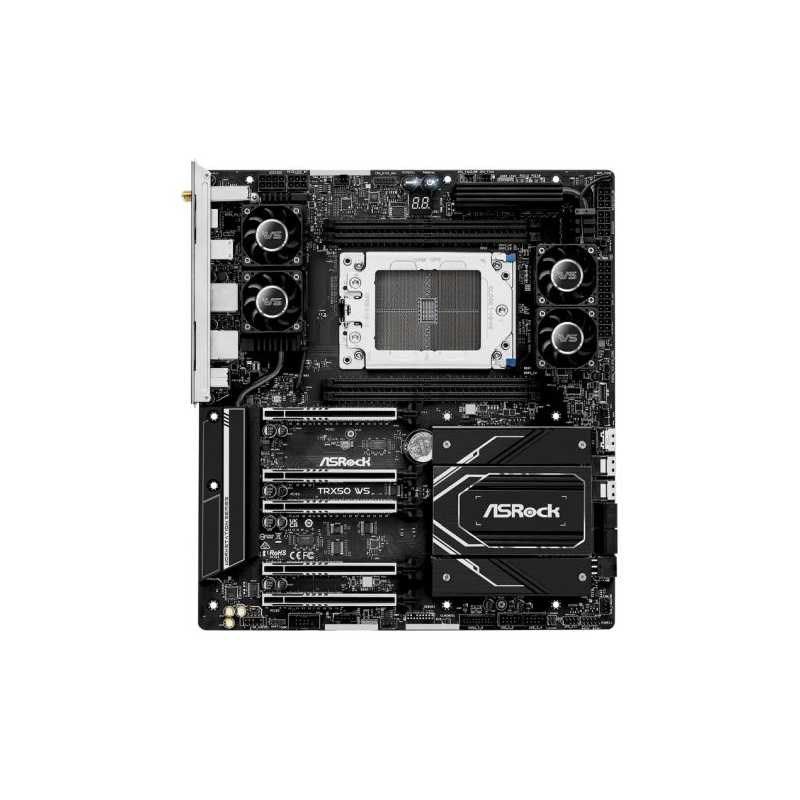

Asrock TRX50 WS motherboard

Processor
Supported processor sockets: Socket sTR5
Processor socket: Socket sTR5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen™ 7000 Series

Graphics
On-board graphics card: No

Features
Component for: PC
Motherboard chipset: AMD TRX50
Motherboard chipset family: AMD
Motherboard form factor: EATX

Memory
Supported memory module capacities: 16GB, 96GB, 48GB, 32GB, 64GB, 24GB
Maximum internal memory: 1 TB
Supported memory types: DDR5-SDRAM
ECC: Yes
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Quad-channel

Operational conditions
Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): 10 - 35 °C

Weight & dimensions
Width: 305 mm
Depth: 277 mm

Network
Wake-on-LAN ready: Yes
Ethernet LAN: Yes

Internal I/O
Number of SATA connectors: 4
Number of chassis fan connectors: 3
Number of COM connectors: 1
TPM connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

BIOS
BIOS type: UEFI AMI
Clear CMOS button: Yes

Storage controllers
Supported storage drive interfaces: Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
SPDIF optical output: Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Number of microphone inputs: 1
Line-out: Yes
Ethernet LAN (RJ-45) ports: 2
Number of antenna connectors: 2
Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports : 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 3
Number of M.2 (M) slots: 2
