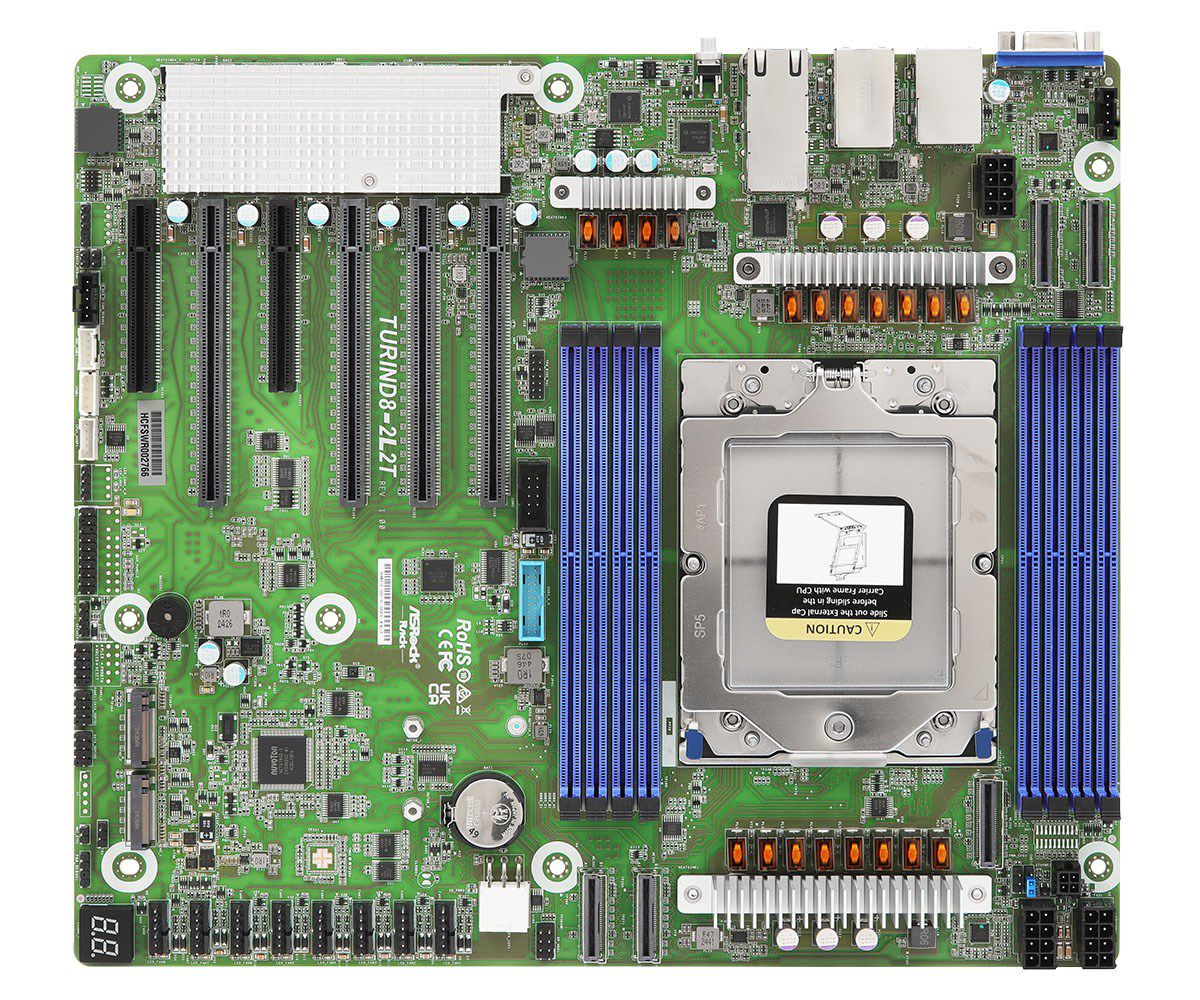

Asrock TURIND8-2L2T motherboard AMD SoC Socket SP5 CEB

Processor
Processor socket: Socket SP5
Compatible processor series: AMD EPYC 9004
Processor manufacturer: AMD

Graphics
On-board graphics card: Yes
Graphics card family: ASPEED
Graphics card: AST2600

Features
Motherboard form factor: CEB
Motherboard chipset family: AMD
Motherboard chipset: AMD SoC
Component for: Server

Memory
Number of memory slots: 8
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Supported memory clock speeds: 6400
Memory voltage: 1.1 V

Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions
Depth: 266.7 mm
Width: 304.8 mm

Network
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet, 10 Gigabit Ethernet
LAN controller: Intel X710-AM2, Intel I210

Internal I/O
TPM connector: Yes
Number of SATA III connectors: 10
Number of COM connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

BIOS
System Management BIOS (SMBIOS) version: 3.5
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4

Storage controllers
Supported storage drive interfaces: SATA III

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
VGA (D-Sub) ports quantity: 1
IPMI LAN (RJ-45) port: Yes

Expansion slots
PCI Express x8 (Gen 5.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 4
