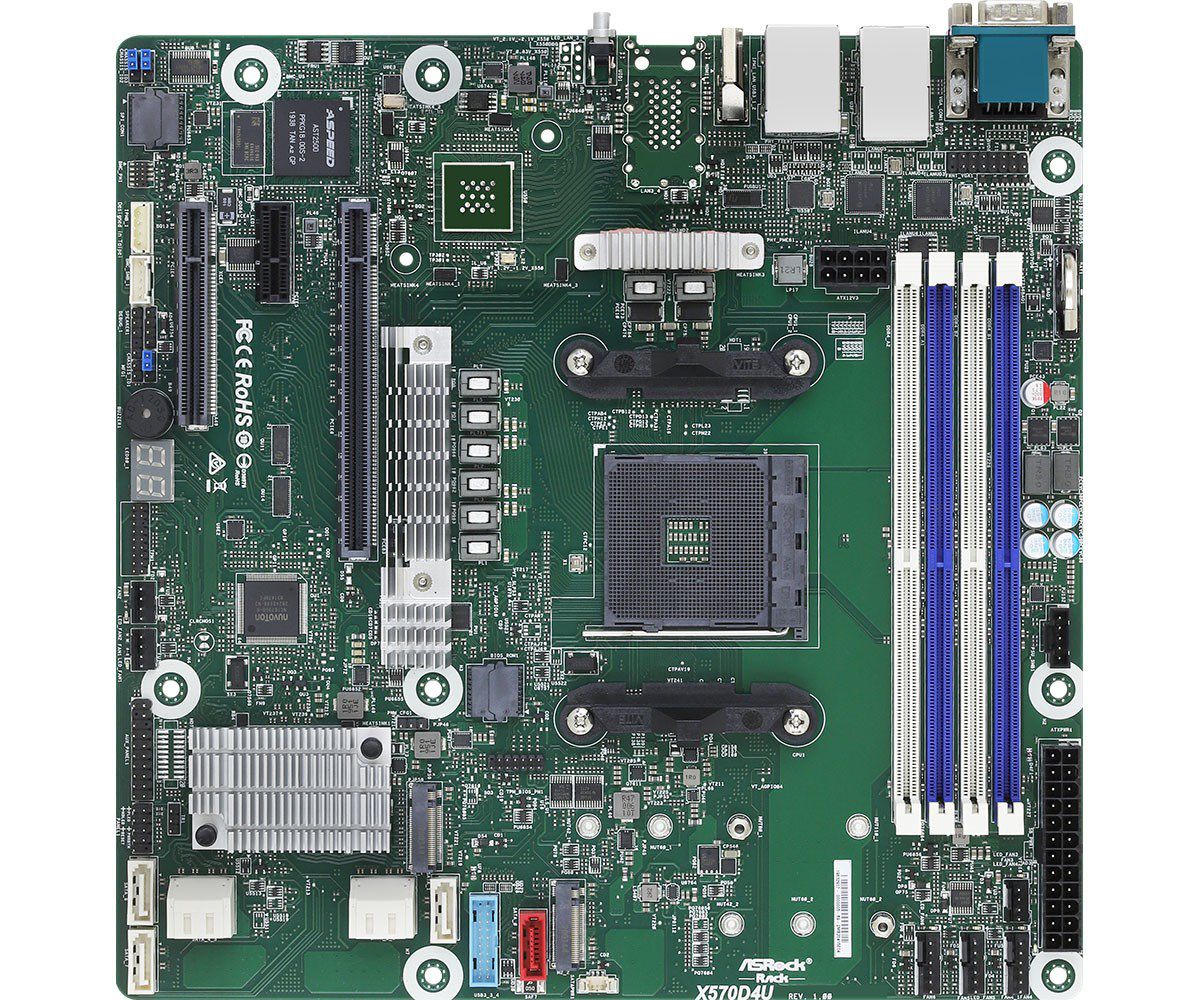

Asrock X570D4U motherboard AMD X570 Socket AM4 micro ATX

Processor
Supported processor sockets: Socket AM4
Processor socket: Socket AM4

Graphics
Graphics card: AST2500
Graphics card family: ASPEED

Features
Motherboard form factor: micro ATX
Motherboard chipset: AMD X570
Motherboard chipset family: AMD

Memory
ECC сompatibility: Non-ECC
Number of memory slots: 4
Supported memory clock speeds: 3200, 2666
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Unbuffered memory: Yes
Memory voltage: 1.2 V
Maximum internal memory: 32 GB

Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Ethernet LAN: Yes
LAN controller: Intel I210, Realtek RTL8211E
Ethernet interface type: Gigabit Ethernet

Internal I/O
ATX Power connector (24-pin): Yes
Number of SATA connectors: 12
12V power connector: Yes
Number of SATA III connectors: 12
Chassis intrusion connector: Yes
TPM connector: Yes

BIOS
BIOS type: UEFI AMI
ACPI version: 2.0

Storage controllers
RAID support: Yes
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1

Expansion slots
PCI Express x8 slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 slots: 1

Logistics data
Harmonized System (HS) code: 84733020
