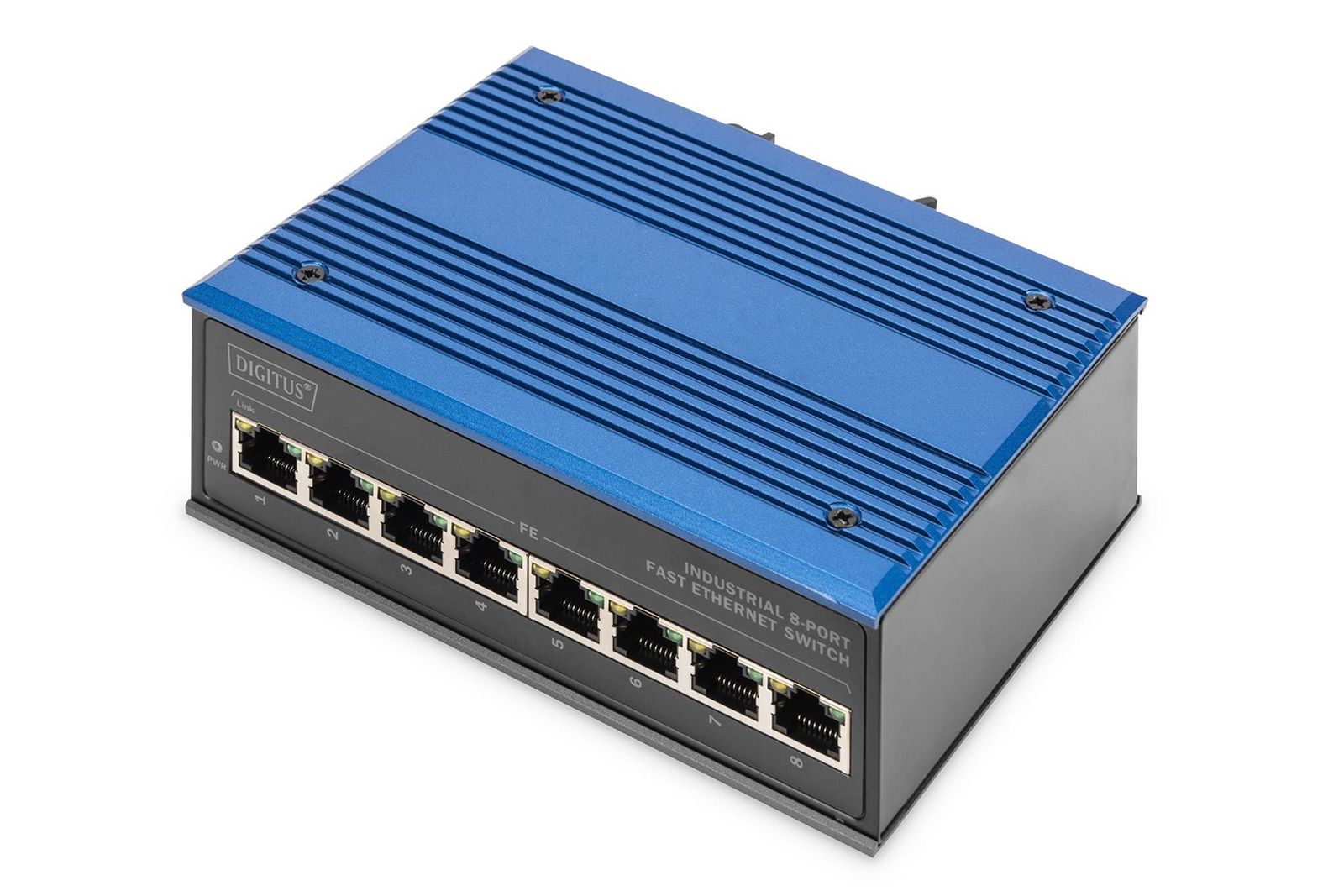

ASSMANN Electronic DN-650106 network switch Fast Ethernet (10 /100) Black, Blue

Design
Housing material: Metal
DIN rail mounting: Yes
Wall mountable: Yes
Number of fans: 0 fan(s)
Product colour: Black, Blue
LED indicators: Yes

Power
DC input voltage: 12 - 48 V
Redundant power supply (RPS) support: Yes
Power supply included: No

Operational conditions
Operating temperature (T-T): -40 - 85 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 85 °C

Weight & dimensions
Width: 120 mm
Depth: 157 mm
Height: 48 mm

Network
MAC address auto-aging supported: Yes
Networking standards: IEEE 802.3x, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab
MAC address auto-learning supported: Yes
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T
Cable types supported: Cat3, Cat4, Cat5
Flow control support: Yes
10G support: No
Auto MDI/MDI-X: Yes
Full duplex: Yes

Performance
Mean time between failures (MTBF): 300000 h

Packaging content
User guide: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: 8

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Store-and-forward: Yes
MAC address table: 2000 entries
Switching capacity: 1.6 Gbit/s

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
