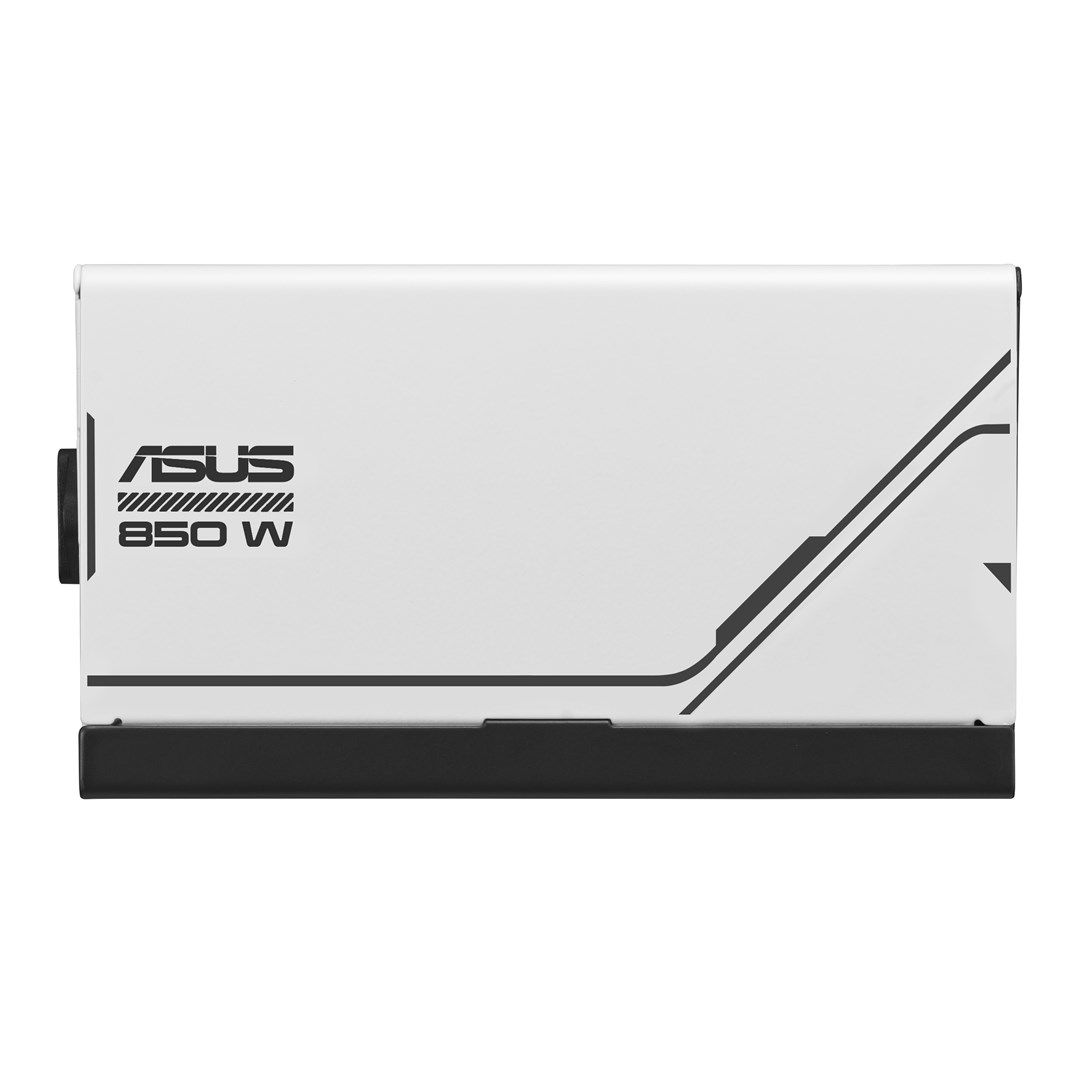

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White

Design
Product colour: White, Black
Fan location: Top
Cooling type: Active
Illumination: Yes
Number of fans: 1 fan(s)

Power
Combined power (+5V): 110 W
Power protection features: Overheating, Short circuit, Over voltage, Under voltage, Over current, Over power
Power Factor Correction (PFC) type: Active
Combined power (-12V): 3.6 W
Total power: 850 W
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 12.5 W
Combined power (+12V): 846 W
Max output current (+5V): 20 A
Max output current (+12V): 70.5 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Max output current (+3.3V): 20 A
Combined power (+3.3V): 110 W

Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.5 kg

Performance
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Purpose: PC
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 120000 h

Packaging data
Package width: 346 mm
Package depth: 208 mm
Package type: Box
Package weight: 2.92 kg
Package height: 144 mm

Packaging content
Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Certificates
Compliance certificates: RoHS

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Cabling type: Fully-Modular
Peripheral (Molex) power cable length: 150, 400 mm
Peripheral (Molex) power connectors (4-pin): 3
SATA power cable length: 120, 400 mm
PCI Express power cable length: 67.5 cm
CPU power cable length: 65 cm
Motherboard power cable length: 61 cm
Number of SATA power connectors: 5
PCI Express power connectors (8-pin): 3
CPU power connector (4+4 pin): Yes
PCI Express power connectors (16-pin): 1
