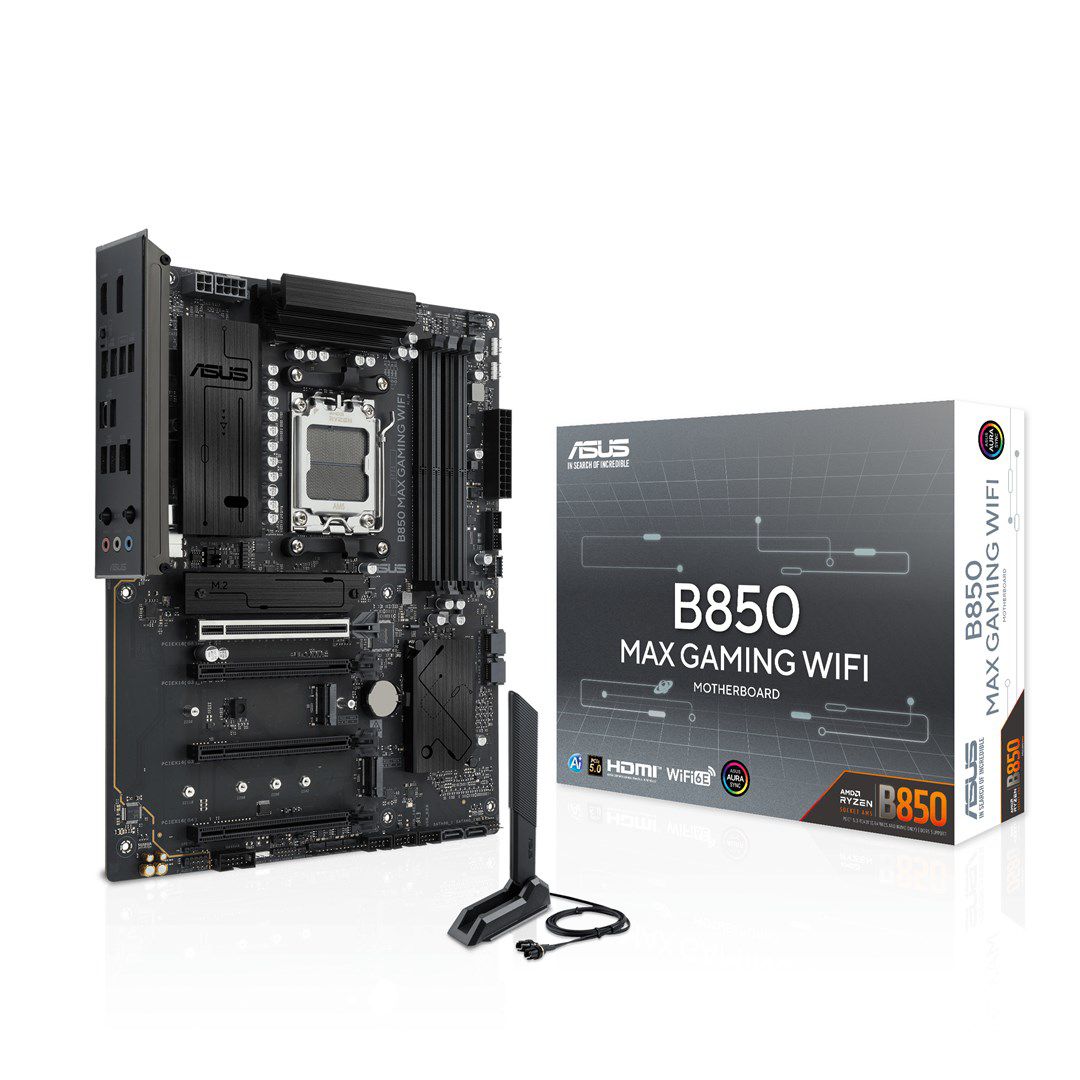

ASUS B850 MAX GAMING WIFI AMD B850 Socket AM5 ATX

Processor
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
Parallel processing technology support: Not supported
Maximum resolution: 7680 x 4320 pixels

Features
Motherboard form factor: ATX
Motherboard chipset family: AMD
Product colour: Black
Power source type: ATX
Motherboard chipset: AMD B850
Cooling type: Passive
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11, Windows 10 x64

Memory
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Supported memory clock speed (max): 9000 MHz
Memory slots type: DIMM
Maximum internal memory per slot: 64 GB
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel

Weight & dimensions
Depth: 244 mm
Width: 305 mm
Height: 48 mm

Network
Bluetooth: Yes
Bluetooth version: 5.4
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes

Internal I/O
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 2.0 connectors: 3
Front panel audio connector: Yes
Thunderbolt headers: 1
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
12V power connector: Yes
RGB LED pin header: Yes
Front panel connector: Yes
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 1
Chassis intrusion connector: Yes
TPM connector: Yes
Number of chassis fan connectors: 4
Number of EPS power connectors (8-pin): 1
Number of water pump connectors: 1
EPS power connector (8-pin): Yes
Peripheral (Molex) power connectors (4-pin): 1
Number of COM connectors: 1

BIOS
BIOS flashback button: Yes
BIOS type: UEFI AMI

Packaging data
Package weight: 1.26 kg
Package height: 68 mm
Package depth: 273 mm
Package width: 353 mm

Packaging content
Antenna included: Yes
Cables included: SATA
Screws included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 10, 5
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of storage drives supported: 7
Number of HDDs supported: 4

Rear panel I/O ports
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
WiFi-AP antenna jack: 2
Line-in: Yes
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Microphone in: Yes
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
1st M.2 largest key size: 2280

Other features
Weight: 1.05 kg
