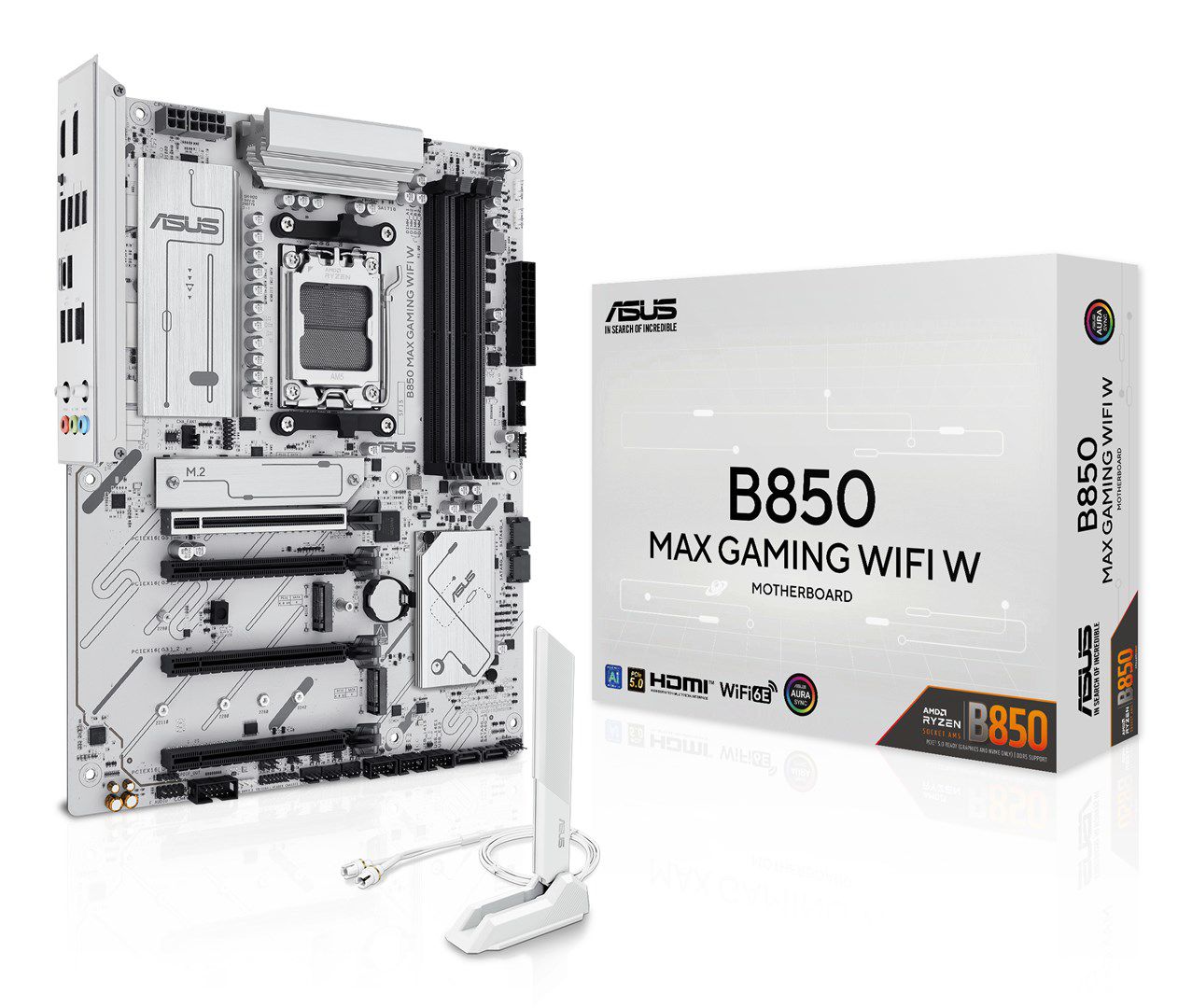

ASUS B850 MAX GAMING WIFI W AMD B850 Socket AM5 ATX

Processor
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD

Graphics
Parallel processing technology support: Not supported
On-board graphics card: No

Features
Audio output channels: 7.1 channels
Product colour: White
Motherboard chipset family: AMD
Motherboard form factor: ATX
Component for: PC
Motherboard chipset: AMD B850
Cooling type: Passive
Windows operating systems supported: Windows 10 x64, Windows 11

Memory
Maximum internal memory: 256 GB
ECC сompatibility: ECC & Non-ECC
Unbuffered memory: Yes
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Bluetooth: Yes
Ethernet LAN: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth version: 5.3
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O
Number of chassis fan connectors: 4
Number of SATA III connectors: 4
Front panel audio connector: Yes
Thunderbolt headers: 1
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 1
EPS power connector (8-pin): Yes
Peripheral (Molex) power connectors (4-pin): 1
Chassis intrusion connector: Yes
USB 2.0 connectors: 3
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
12V power connector: Yes
Number of COM connectors: 1
RGB LED pin header: Yes
TPM connector: Yes
Front panel connector: Yes

BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data
Package weight: 1.26 kg
Package width: 353 mm
Package height: 68 mm
Package depth: 273 mm

Packaging content
Screws included: Yes
Cables included: SATA
Antenna included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 1, 0, 5, 10
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 7

Rear panel I/O ports
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
Line-in: Yes
WiFi-AP antenna jack: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Microphone in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots
1st M.2 largest key size: 2280
PCI Express x16 (Gen 3.x) slots: 2
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 5.x) slots: 1
3rd M.2 largest key size: 22110
Number of M.2 (M) slots: 3
2nd M.2 largest key size: 2280
PCI Express x16 (Gen 4.x) slots: 1
3rd M.2 highest PCI Express generation: 4.0
