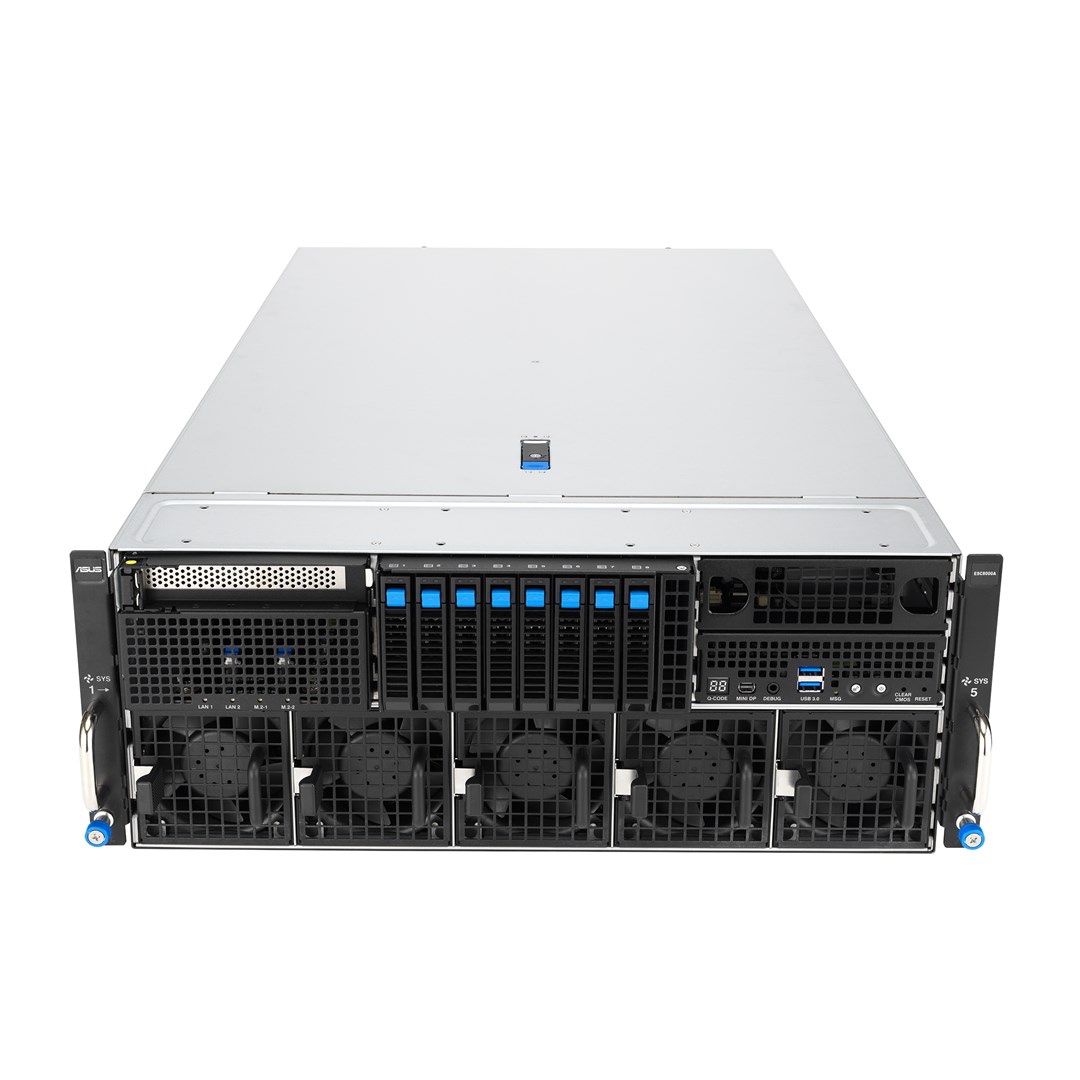

ASUS ESC8000A-E13P

Processor
Number of processors supported: 2
Compatible processor series: AMD EPYC 9004
Built-in processor: Yes

Features
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0

Memory
Maximum internal memory: 3 TB
Supported memory types: DDR5-SDRAM
Number of DIMM slots: 24
Supported DIMM module capacities: 16GB, 64GB, 96GB, 32GB, 128GB

Design
Product colour: Silver
Chassis type: Rack (4U)

Power
AC input voltage: 220 - 240 V
AC input frequency: 50/60 Hz
80 PLUS certification: 80 PLUS Titanium
Power supply: 3200 W
Number of main power supplies: 4

Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 95%

Weight & dimensions
Weight: 42 kg
Depth: 440 mm
Width: 800 mm
Height: 175 mm

Network
Ethernet LAN data rates: 100, 10, 1000
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Packaging data
Package weight: 44.3 kg

Expansion slots
PCI Express x16 slots: 14
Number of M.2 (M) slots: 2

Storage
Supported storage drive types: HDD & SSD
Hot-swap HDD bays: Yes
Storage drive sizes supported: 2.5
Number of storage drives supported: 10

Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
IPMI LAN (RJ-45) port: Yes

Safety warning
Warnings: Do not throw into regular trash, product requires special disposal., The product may contain components that are harmful to health, use caution when handling., Do not disassemble the unit yourself.
