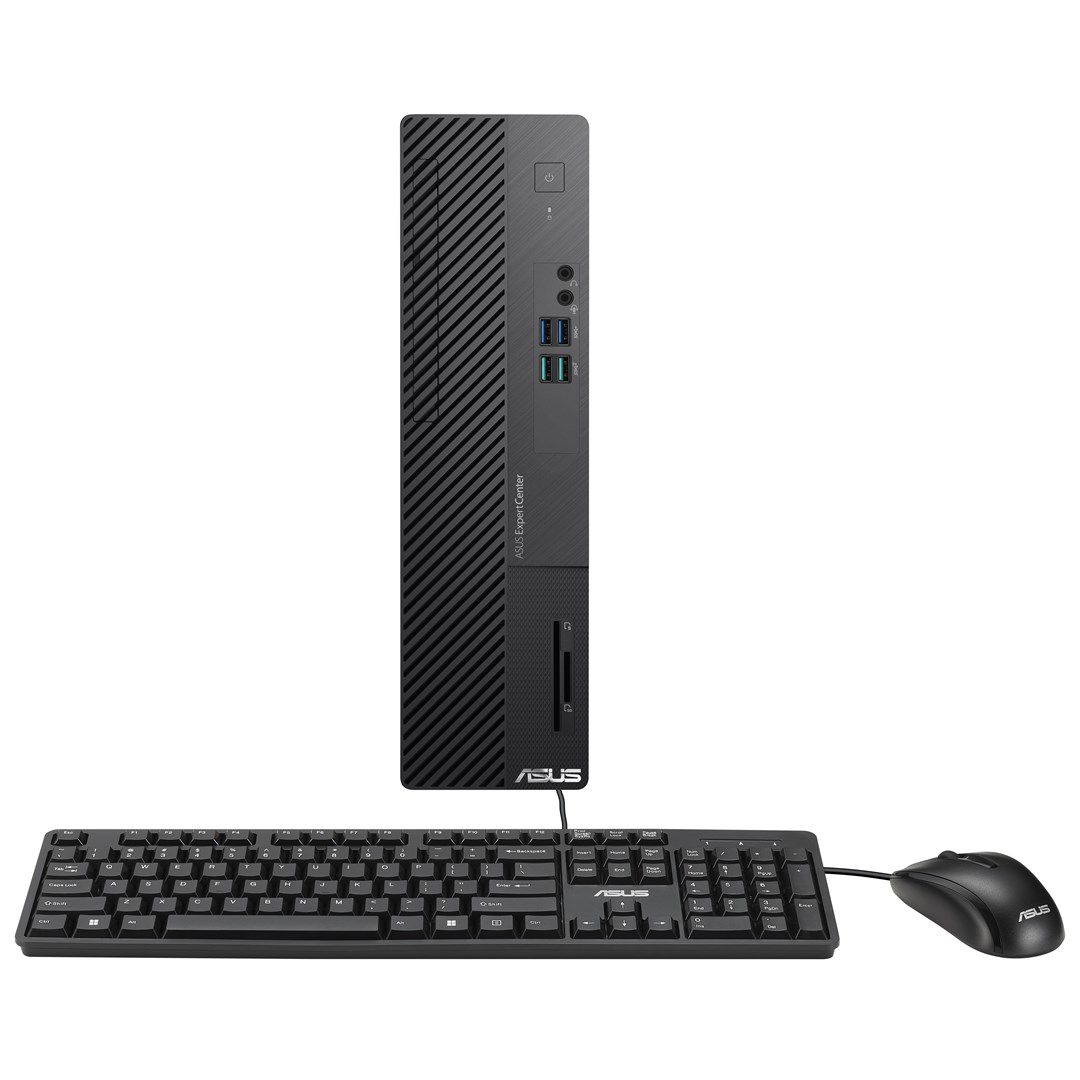

ASUS ExpertCenter D5 SFF S501SER-514500074W Intel® Core™ i5 i5-14500 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Home Tower PC Black

Processor
Processor generation: Intel® Core™ i5 (14th gen)
Processor base power: 65 W
Efficient-core base frequency: 1.9 GHz
Efficient cores: 8
Performance cores: 6
Performance-core base frequency: 2.6 GHz
Maximum turbo power: 154 W
Processor model: i5-14500
Processor boost frequency: 5 GHz
Processor cores: 14
Efficient-core Max Turbo Frequency: 3.7 GHz
Processor threads: 20
Processor cache: 24 MB
Processor family: Intel® Core™ i5
Processor cache type: Smart Cache
Performance-core Max Turbo Frequency: 5 GHz
Processor manufacturer: Intel

Graphics
Discrete graphics card model: Not available
On-board graphics card model: Intel UHD Graphics 770
On-board graphics card family: Intel® UHD Graphics
On-board graphics card: Yes
Discrete graphics card: No
On-board GPU manufacturer: Intel

Memory
Maximum internal memory: 64 GB
Internal memory: 8 GB
Memory slots: 2x DIMM
Memory layout (slots x size): 1 x 8 GB
Internal memory type: DDR5-SDRAM

Design
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black
Number of 2.5" bays: 1
Colour name: Extreme Dark Gray
Chassis type: Tower
Introduction year: 2025

Power
Power supply: 180 W
80 PLUS certification: 80 PLUS Bronze

Weight & dimensions
Weight: 6 kg
Width: 93 mm
Height: 309 mm
Depth: 296 mm

Network
Bluetooth: Yes
Antenna type: 2x2
Ethernet LAN data rates: 10, 1000 Mbit/s, 100
Bluetooth version: 5.4
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Wi-Fi: Yes

Performance
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Trusted Platform Module (TPM): Yes
Password protection type: User, HDD
Product type: PC
Password protection: Yes
Market positioning: Business

Packaging data
Package width: 490 mm
Package weight: 6.25 kg
Package depth: 168 mm
Package height: 510 mm

Packaging content
Keyboard included: Yes
Mouse included: Yes
Mouse connectivity: Wired

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of 3.5" bays: 1

Display
Display included: No

Software
Operating system installed: Windows 11 Home
Operating system architecture: 64-bit

Audio
Audio system: High Definition Audio

Storage
Optical drive type: No
Total storage capacity: 512 GB
M.2 SSD size: 2280 (22 x 80 mm)
SSD capacity: 512 GB
Storage media: SSD
SSD interface: PCI Express 4.0
NVMe: Yes
Total SSDs capacity: 512 GB
SSD form factor: M.2
Number of SSDs installed: 1

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Combo headphone/mic port: Yes
Number of SATA III connectors: 4
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Headphone outputs: 1
Number of rear USB ports: 4
Number of front audio ports: 2
Line-in: Yes
HDMI ports quantity: 1
HDMI version: 1.4
Number of rear audio ports: 3
VGA (D-Sub) ports quantity: 1
Line-out: Yes
USB 2.0 ports quantity: 4
Number of front USB ports: 4

Keyboard
Keyboard connectivity: Wired
