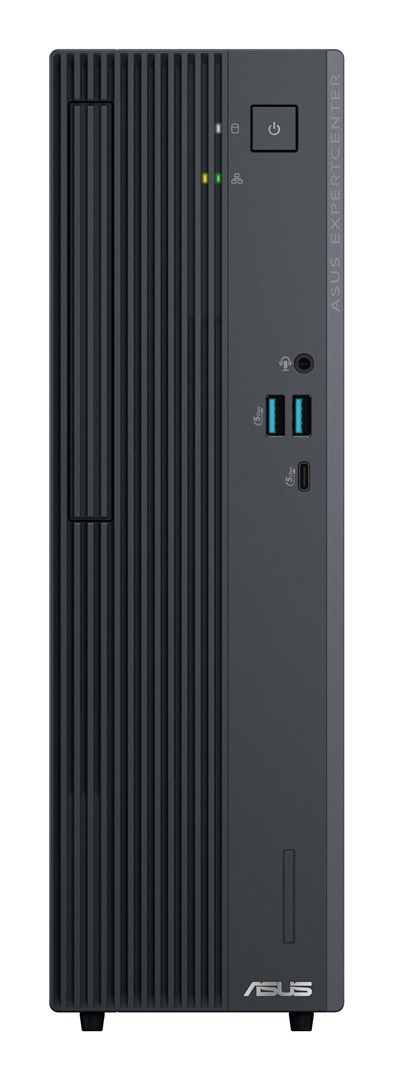

ASUS ExpertCenter P500 SFF P500SV-05210H0020 Intel Core 5 210H 16 GB DDR5-SDRAM 512 GB SSD PC Grey

Processor
Processor cache: 12 MB
Processor threads: 12
Processor family: Intel Core 5
Processor generation: Intel Core (Series 2)
Efficient-core Max Turbo Frequency: 3.6 GHz
Maximum turbo power: 115 W
Processor boost frequency: 4.8 GHz
Processor base power: 45 W
Processor cores: 8
Processor model: 210H
Performance cores: 4
Processor cache type: Smart Cache
Efficient cores: 4
Performance-core base frequency: 2.2 GHz
Efficient-core base frequency: 1.6 GHz
Processor manufacturer: Intel

Graphics
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
On-board GPU manufacturer: Intel
Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available

Memory
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x DIMM
Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Maximum internal memory: 64 GB

Design
Chassis type: SFF
Introduction year: 2025
Number of 3.5" bays: 1
Colour name: Grey
Cable lock slot type: Kensington
Cable lock slot: Yes
Product colour: Grey

Power
80 PLUS certification: 80 PLUS Bronze
Power supply: 180 W
Power supply input frequency: 50 - 60 Hz
Power supply input voltage: 100 - 240 V

Weight & dimensions
Weight: 5.06 kg
Depth: 296 mm
Height: 309 mm
Width: 93 mm

Network
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Cabling technology: 10/100/1000Base-T(X)
Bluetooth version: 5.4
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth: Yes
Antenna type: 2x2
Ethernet LAN data rates: 100, 10, 1000 Mbit/s

Performance
Audio system: High Definition Audio
Market positioning: Business
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 7.1 channels
Password protection: Yes
Password protection type: User, HDD
Trusted Platform Module (TPM): Yes

Packaging data
Package height: 510 mm
Package width: 490 mm
Package depth: 168 mm

Packaging content
Mouse included: No
Keyboard included: No

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1

Display
Display included: No

Software
Operating system installed: No

Certificates
Compliance certificates: REACH

Storage
SSD capacity: 512 GB
Storage media: SSD
NVMe: Yes
M.2 SSD size: 2280 (22 x 80 mm)
SSD interface: PCI Express 4.0
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
Total storage capacity: 512 GB
Optical drive type: No
SSD form factor: M.2

Ports & interfaces
Line-out: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
DisplayPorts quantity: 1
Number of front USB ports: 3
DisplayPort version: 1.4
Line-in: Yes
HDMI version: 1.4
Number of SATA III connectors: 2
Combo headphone/mic port: Yes
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
Number of front audio ports: 1
Number of rear audio ports: 3
Number of rear USB ports: 4

Sustainability
Sustainability certificates: EPEAT Silver, ENERGY STAR
