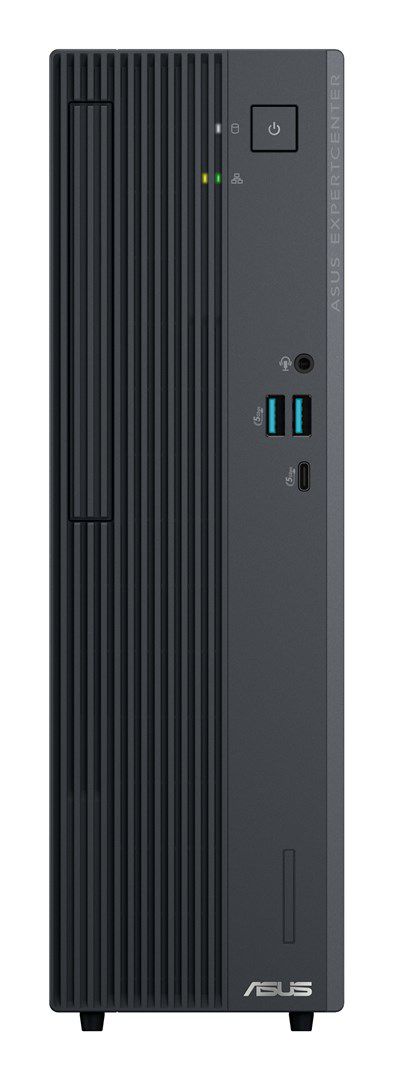

ASUS ExpertCenter P500 SFF P500SV-07240H013X Intel Core 7 240H 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro PC Grey

Processor
Processor manufacturer: Intel
Processor cores: 10
Processor cache type: Smart Cache
Processor model: 240H
Processor threads: 16
Processor family: Intel Core 7
Processor cache: 24 MB
Efficient-core Max Turbo Frequency: 4 GHz
Performance-core Max Turbo Frequency: 5.2 GHz
Processor generation: Intel Core (Series 2)
Efficient cores: 4
Performance cores: 6
Processor base power: 45 W
Performance-core base frequency: 2.5 GHz
Efficient-core base frequency: 1.8 GHz
Maximum turbo power: 115 W
Processor boost frequency: 5.2 GHz

Graphics
On-board graphics card: Yes
On-board graphics card model: Intel® Graphics
On-board graphics card family: Intel® Graphics
Discrete graphics card: No
On-board GPU manufacturer: Intel
Discrete graphics card model: Not available

Memory
Internal memory type: DDR5-SDRAM
Internal memory: 16 GB
Memory slots: 2x DIMM
Memory layout (slots x size): 1 x 16 GB
Maximum internal memory: 64 GB

Design
Cable lock slot type: Kensington
Chassis type: SFF
Introduction year: 2025
Colour name: Grey
Cable lock slot: Yes
Product colour: Grey

Power
Power supply: 180 W
80 PLUS certification: 80 PLUS Bronze
Power supply input frequency: 50 - 60 Hz
Power supply input voltage: 100 - 240 V

Weight & dimensions
Width: 93 mm
Height: 309 mm
Weight: 5.06 kg
Depth: 296 mm

Network
Wi-Fi: Yes
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Bluetooth version: 5.4
Bluetooth: Yes
Ethernet LAN data rates: 1000, 100, 10
Antenna type: 2x2

Performance
Product type: PC
Password protection type: HDD, User
Market positioning: Business
Password protection: Yes
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 7.1 channels
Trusted Platform Module (TPM): Yes

Packaging data
Package height: 510 mm
Package width: 490 mm
Package depth: 168 mm

Packaging content
Keyboard included: No
Mouse included: No

Expansion slots
Number of 3.5" bays: 1
PCI Express x16 (Gen 4.x) slots: 1

Display
Display included: No

Software
Operating system installed: Windows 11 Pro
Operating system architecture: 64-bit

Audio
Audio system: High Definition Audio

Certificates
Compliance certificates: REACH

Storage
Optical drive type: No
Storage media: SSD
Total storage capacity: 512 GB
M.2 SSD size: 2280 (22 x 80 mm)
NVMe: Yes
SSD interface: PCI Express 4.0
Number of SSDs installed: 1
Total SSDs capacity: 512 GB
SSD capacity: 512 GB
SSD form factor: M.2

Ports & interfaces
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
HDMI version: 1.4
Combo headphone/mic port: Yes
HDMI ports quantity: 1
Number of SATA III connectors: 2
Number of front USB ports: 3
Line-in: Yes
Line-out: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Number of rear audio ports: 3
Number of front audio ports: 1
Number of rear USB ports: 4

Sustainability
Sustainability certificates: EPEAT Silver, ENERGY STAR
