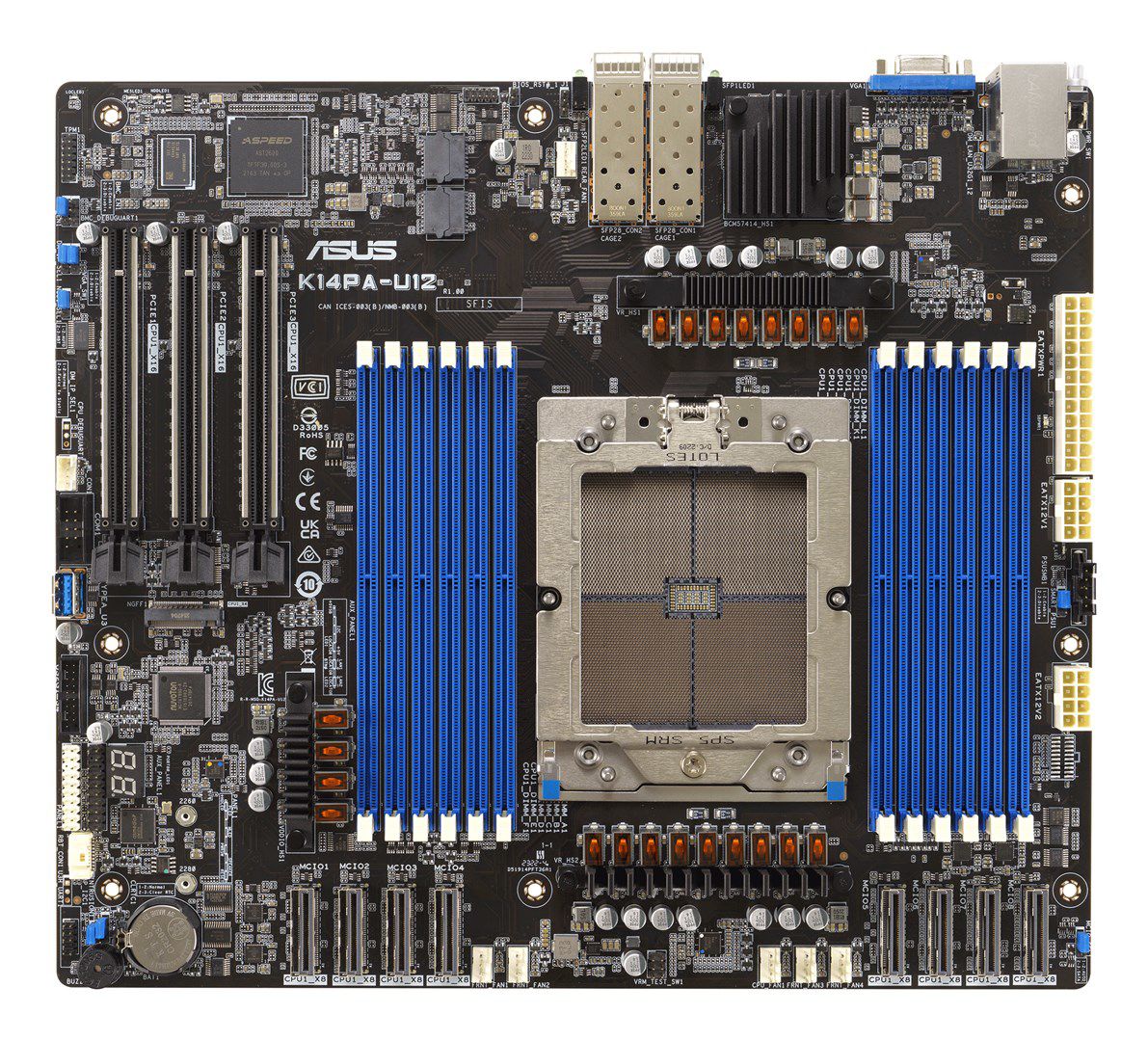

ASUS K14PA-U12 /ASMB11 Socket SP5 SSI CEB

Processor
Compatible processor series: AMD EPYC 9004
Processor manufacturer: AMD
Processor socket: Socket SP5

Graphics
On-board graphics card: Yes
On-board graphics card model: Aspeed AST2600
Graphics card family: ASPEED
Graphics card: AST2600

Features
Component for: Server
Motherboard chipset family: AMD
Motherboard form factor: SSI CEB

Memory
Supported memory module capacities: 64GB, 256GB, 48GB, 32GB, 128GB, 24GB, 96GB, 16GB
Supported memory clock speeds: 4800
Maximum internal memory: 3.07 TB
Number of memory slots: 12
Supported memory types: DDR5-SDRAM

Operational conditions
Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions
Width: 409 mm
Depth: 376 mm
Height: 63 mm

Network
Ethernet LAN: Yes
Ethernet interface type: 25 Gigabit Ethernet

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Serial port headers: 1
TPM connector: Yes
Chassis intrusion connector: Yes

Packaging data
Package depth: 395 mm
Package height: 81 mm
Package width: 425 mm
Package weight: 2.2 kg

Storage controllers
Supported storage drive interfaces: M.2

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 5.x) slots: 3

Other features
Weight: 1.4 kg

Safety warning
Warnings: The motherboard may contain electronic components hazardous to health - avoid direct contact., Use only in a dry and well-ventilated area., Do not open or disassemble the motherboard.
