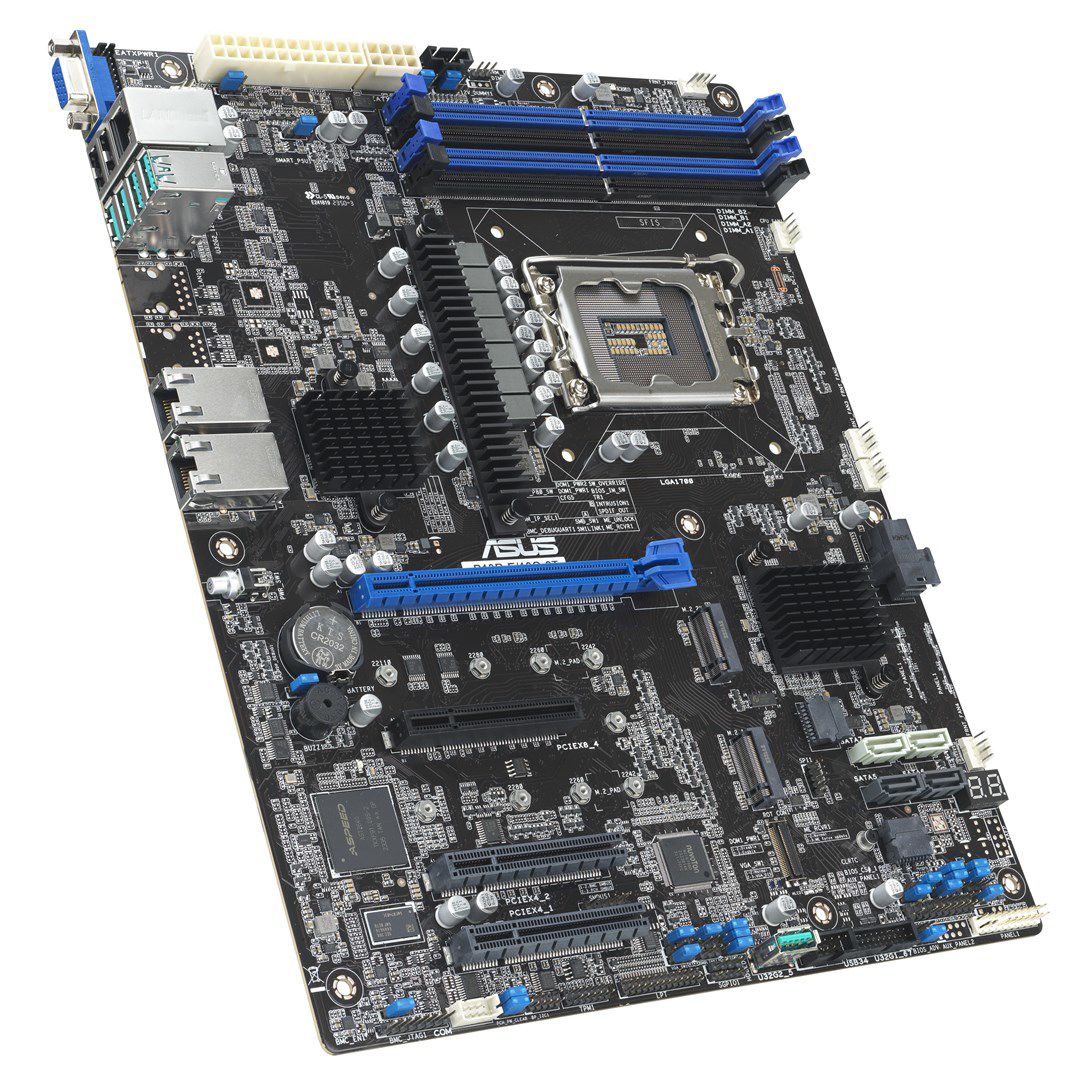

ASUS P13R-E /10G-2T Intel C266 LGA 1700 ATX

Processor
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Pentium®, Intel Xeon E

Graphics
Parallel processing technology support: Not supported

Features
PC health monitoring: CPU, Temperature, Fan
Motherboard chipset: Intel C266
Product colour: Black
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX
Component for: Server
Motherboard form factor: ATX

Memory
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
ECC сompatibility: ECC
Maximum internal memory per slot: 32 GB
Supported memory clock speed (max): 4400 MHz
Supported memory clock speeds: 4000, 4400 MHz, 3600
Maximum internal memory: 128 GB
Memory channels: Dual-channel

Operational conditions
Operating temperature (T-T): 10 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Ethernet interface type: 10 Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes

Internal I/O
12V power connector: Yes
Number of EPS power connectors (8-pin): 1
Chassis intrusion connector: Yes
TPM connector: Yes
Number of chassis fan connectors: 6
Number of SATA III connectors: 8
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel connector: Yes
Number of COM connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 2.0 connectors: 1
ATX Power connector (24-pin): Yes

Packaging data
Package height: 78 mm
Package weight: 1.9 kg
Package depth: 281 mm
Package width: 341 mm

Storage controllers
Number of HDDs supported: 8
Supported storage drive types: HDD & SSD
Number of storage drives supported: 10
Supported storage drive interfaces: PCI Express, SATA III

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2

Expansion slots
2nd M.2 largest key size: 22110
PCI Express x8 (Gen 5.x) slots: 1
1st M.2 largest key size: 22110
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 2
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 2

Other features
Weight: 800 g
