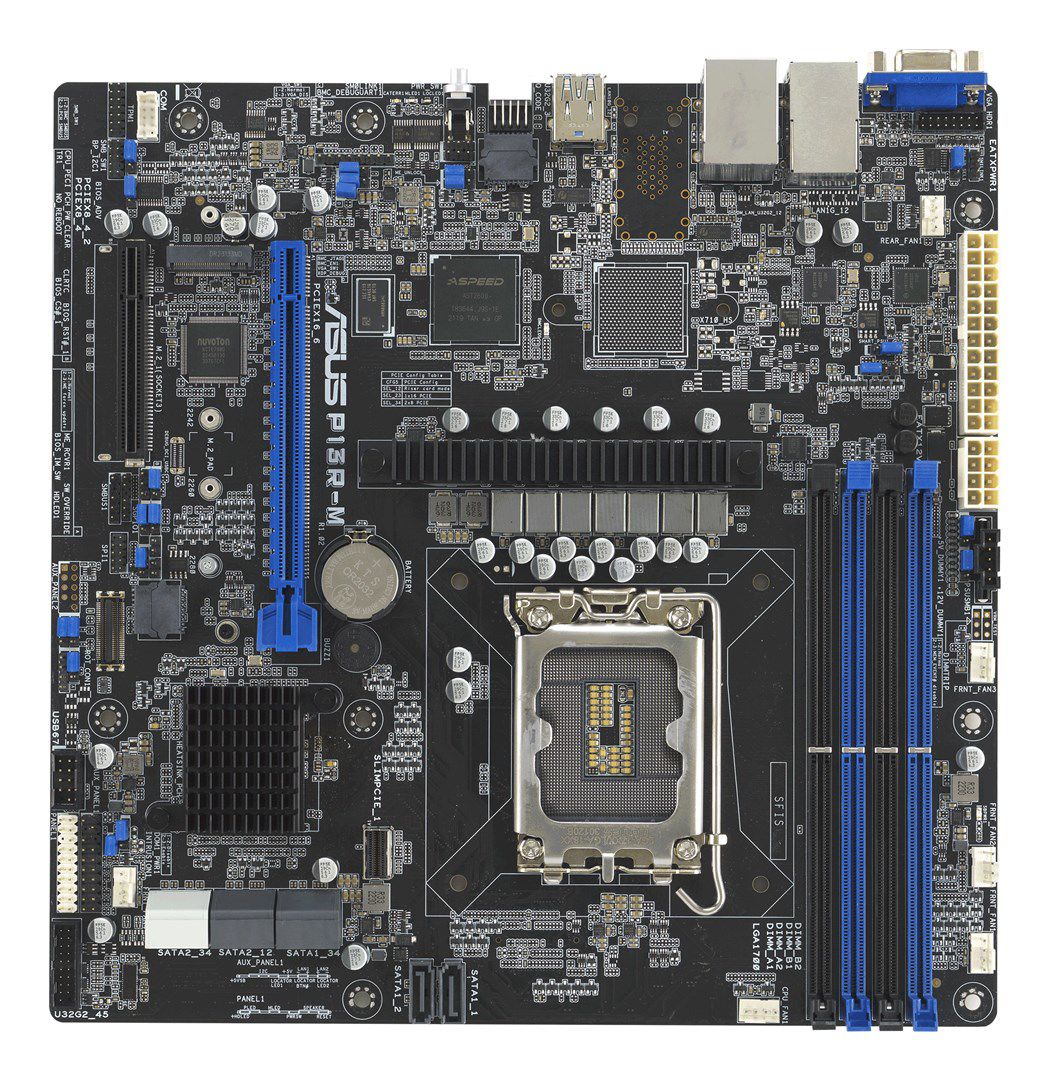

ASUS P13R-M Intel C262 LGA 1700 micro ATX

Processor
Compatible processor series: Intel® Pentium®, Intel Xeon E
Processor socket: LGA 1700
Processor manufacturer: Intel

Graphics
Graphics card: AST2600
Graphics card family: ASPEED

Features
Motherboard form factor: micro ATX
Motherboard chipset: Intel C262
Motherboard chipset family: Intel
Component for: Server

Memory
Supported memory module capacities: 16GB, 32GB, 8GB
Maximum internal memory: 128 GB
Supported memory clock speeds: 3600, 4000, 4400 MHz
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM

Operational conditions
Storage relative humidity (H-H): 20 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 50 °C

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 1
ATX Power connector (24-pin): Yes
Serial port headers: 1
TPM connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 3
Number of SATA III connectors: 8

Packaging data
Package weight: 1.3 kg

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 8

Rear panel I/O ports
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 5.x) slots: 1

Other features
Weight: 760 g
